Connecting an External Hub to the Dual 56K LAN Modem 57
To connect the hub to the Dual 56K LAN Modem:
1 Insert one end of the Ethernet cable into any available LAN port on the back of the
LAN Modem, as shown in Figure 36.

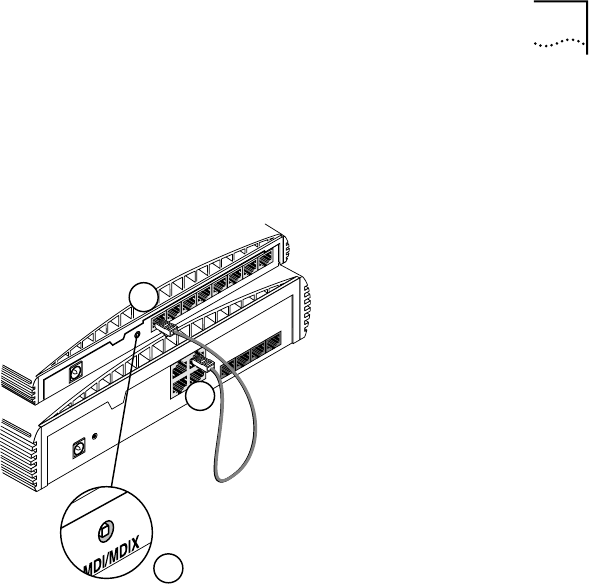

Figure 36 10BASE-T Hub-to-LAN Modem Connection
2 Insert the opposite end of the cable into one of the ports on the external Ethernet
hub.
3 If you are using an OfficeConnect Ethernet Hub 8, insert the opposite end of the
Ethernet cable into port 8, and then set the MDI/MDIX switch to MDI (that is,
pressed in). Make sure that the LED associated with that Ethernet port is lit. If it is
not, try changing the MDI/MDIX switch setting.
You can now connect any additional computers and/or printers to the remaining
LAN ports.
LAN
1
3
2
4
L
IN
E
1
P
H
O
N
E
1
L
IN
E
2
P
H
O
N
E
2
10-30 VDC
0¥ 8A MAX
RESET
3
OfficeConnect
Dual 56K LAN Modem
OfficeConnect
Ethernet Hub 8
Ethernet cable
10-18 VDC
0¥ 8A MAX
M
DI/M
D
IX
8 7 6 5 4 3 2 1
1
2
