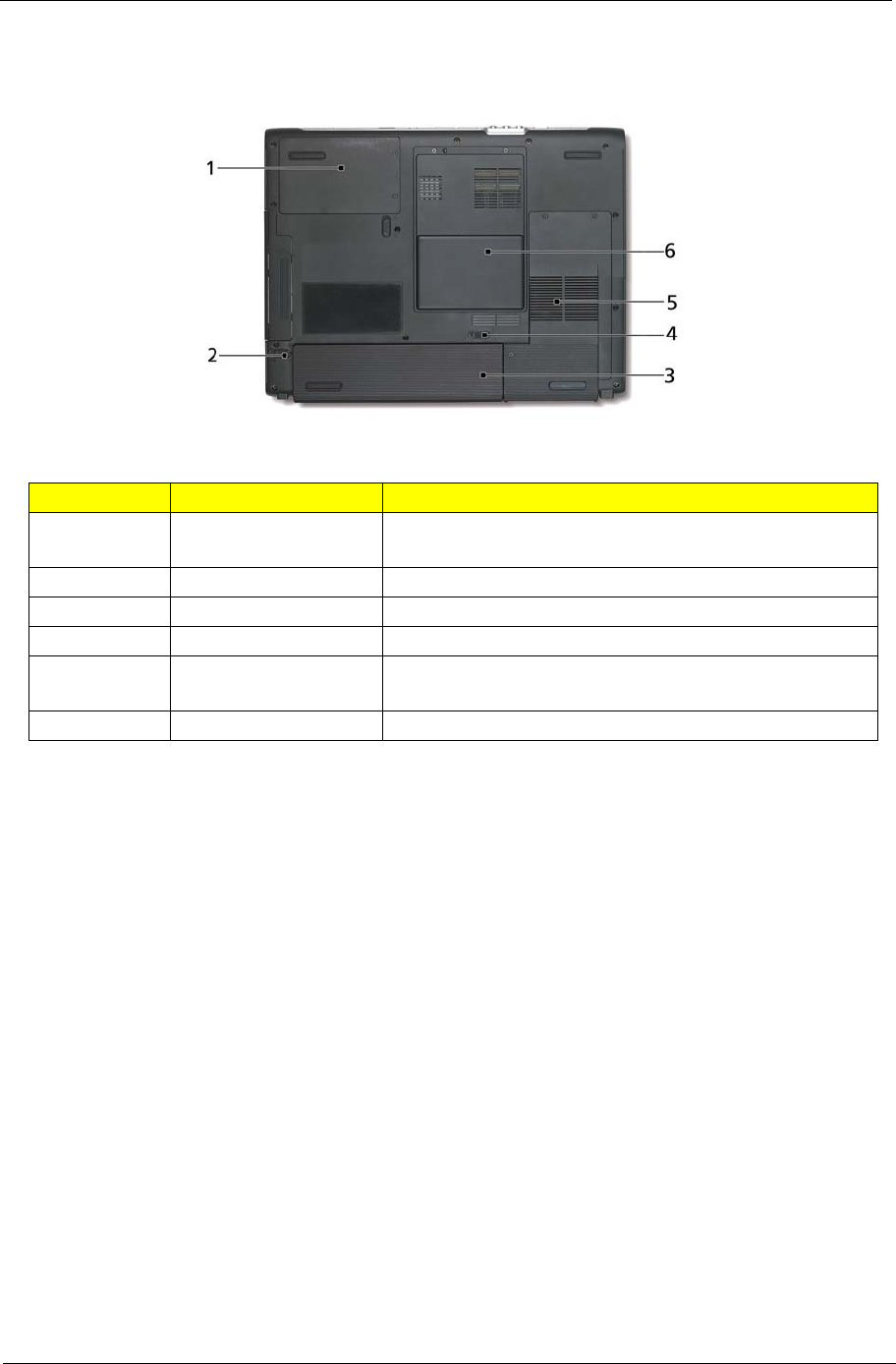

Bottom View
# Item Description
1 Hard disk bay Houses the computer's hard disk
(secured with two screws).
2 Battery release latch Unlatches the battery to remove the battery pack.
3 Battery bay Houses the computer's battery pack.
4 Battery lock Locks the battery in place.
5 Cooling fan Helps keep the computer cool.
NOTE: Do not cover or obstruct the opening of the fan.
6 Memory compartment Houses the computer's main memory and Mini PCI Card.
