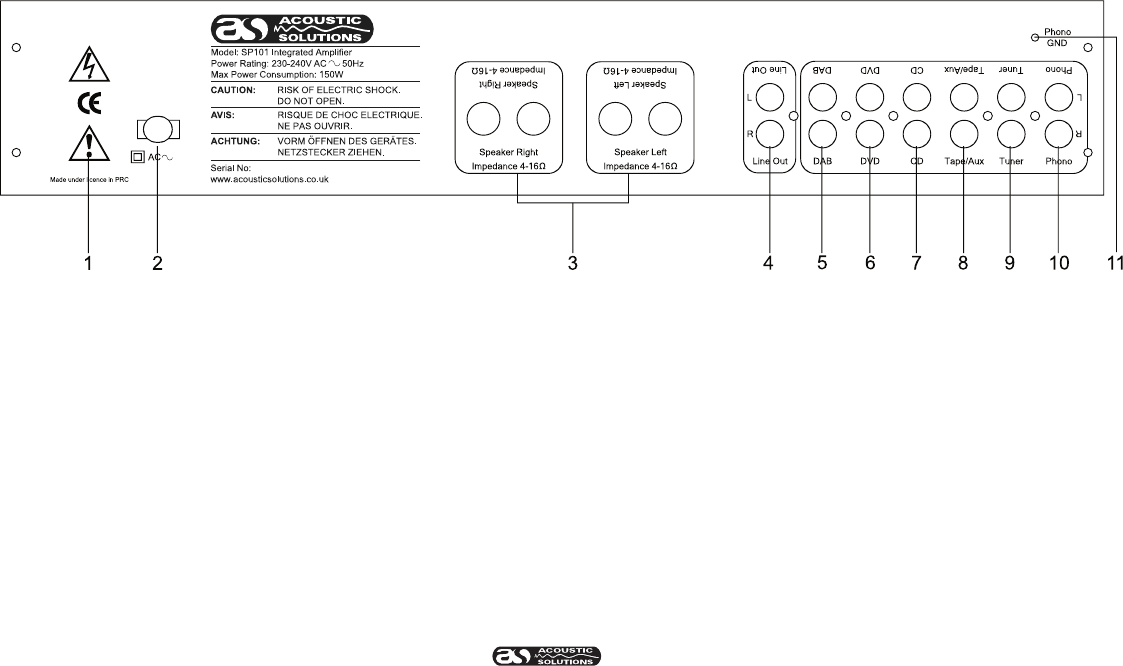

REAR PANEL CONNECTIONS
1. WARNING LABELS. Please be aware that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
2. MAINS CABLE INLET POSITION. Please ensure that this cable strain relief
bush is intact and has not been damaged.
3. LOUDSPEAKER OUTPUTS. Please ensure that +/- connections are made
properly between rear of the SP101 amplier and loudspeakers. Ensure wires
are not frayed or touching.
4. LINE OUTPUT SOCKETS. This is for connection to external amplication
or recording equipment.
5. DAB DIGITAL RADIO INPUT SOCKET.
6. DVD INPUT SOCKET. (2 channel stereo only).
7. CD INPUT SOCKET.
8. TAPE/ AUX INPUT SOCKET.
9. TUNER INPUT SOCKET.
10. PHONO INPUT SOCKET. For the connection of a turntable.
11. PHONO TERMINAL EARTH POST. It is necessary to provide a chassis
earth connection between the turntable and the amplier. Failure to do this will
result in a buzzing or humming noise from the loudspeakers.
