This Control will adjust the overall level of this channel and set the amount
of signal sent to the Main output.
7
7
8
9
10

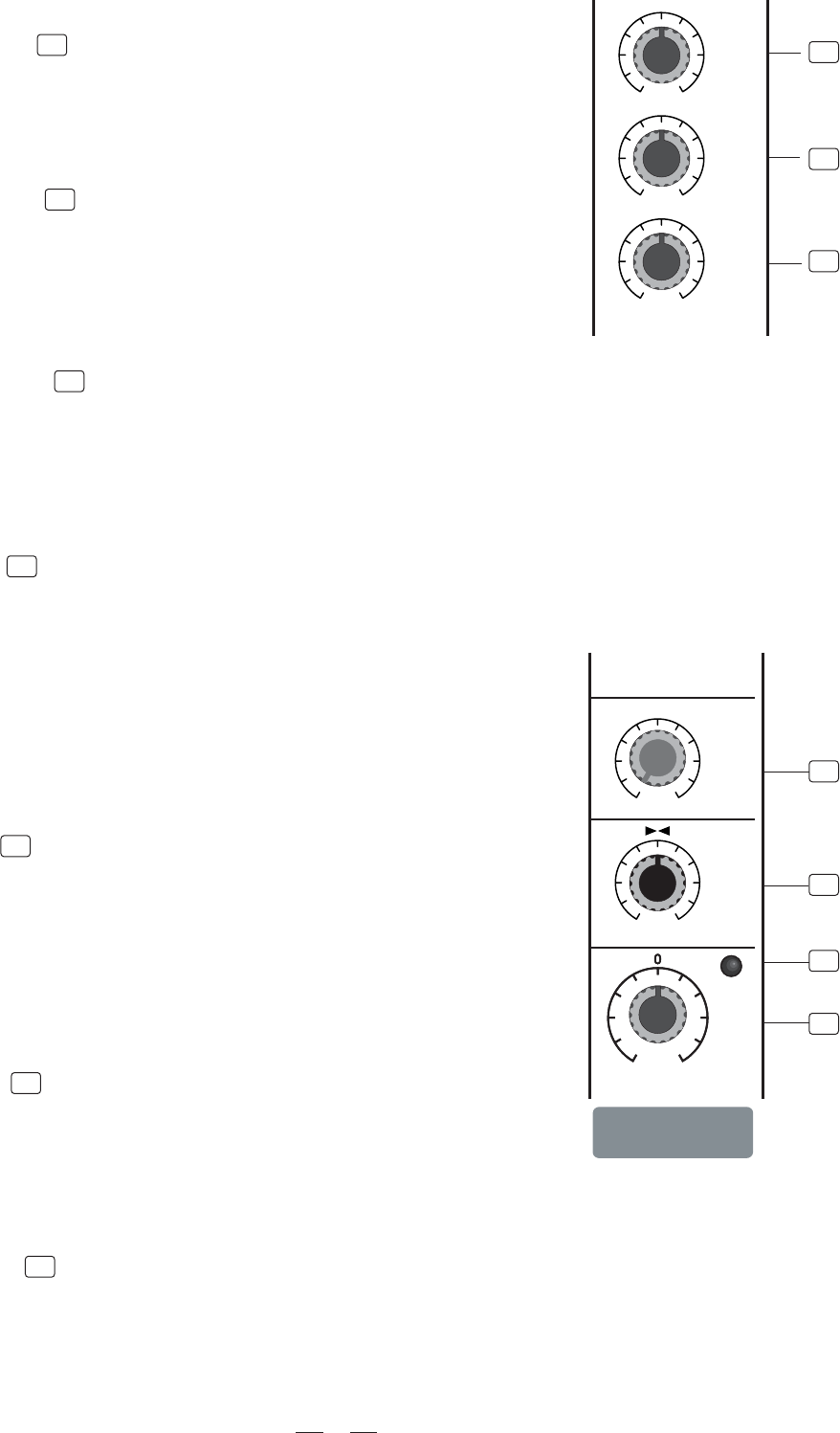

4.3 The 3 BANDS EQUALISER
A 3-band equaliser is provided for all input channels with a wide range
of frequency adjustment.
4
4.4.1 HI
5
4.4.2 MID
6
4.4.3 LOW
4
5
6
This is the PANORAMA control, or balance control. You can adjust the
stereo image of the signal via this Control. Keep this control in center
position and your signal will be positioned in the middle of stage. Turn
this control fully counterclockwise and the signal will be present only
on the left speaker and vice-versa.
Of course a wide number of intermediate positions is available.
+15+15-15-15
0
EQ
HI
12kHz
+15+15-15-15
80Hz
LOW
0
+12-12
0
2.5kHz
MID
This is the treble control. You can use it to get rid of high frequency
noises or to boost the sound of cymbals or the high harmonics
of the human voice. The gain range goes from -15dB to +15dB
with a center frequency of 12kHz.
This is the midrange control. It can affect most fundamental frequ
-encies of all musical instruments and human voice. An attentive
use of this control will give you and very wide panorama of sound
effects. The gain range goes from -12dB to +12dB and the center
frequency is 2.5kHz.
This is the Bass control. Boost male voice or kickdrum and bass
guitar. Your system will sound much bigger than what it is. The
gain range goes from -15dB to +15dB and the center frequency
is 80Hz.
PEAK
AUX
0
-+15
8
PAN
RIGHT
LEFT
LEVEL
1
-+15
8
-+15
8
D
F
X
(PRE)
POST
LEVEL
1
This control will send the audio signal to the Auxiliary Bus. The confi-
guration is post-fader so the level sent to the AUX bus will be affected
by the Main Level Control of that particular channel.
Note: There is the possibility to configure this AUX Send as Pre-fader
as we will explain later in this Manual.
In this typical compact unit, the channel signal is not only assigned to
external effect or processor equipment directly but also to internal on-
board effect module.
Inside your L-6 the audio signal is monitored in several different stages
and then sent to the PEAK LED. When this Led blinks, it warns you
that you are reaching signal saturation and possible distortion. The
PEAK LED will blink with a level that is 6dB before actual clipping.
