12 ASUS TXP4 User’s Manual
III. INSTALLATION

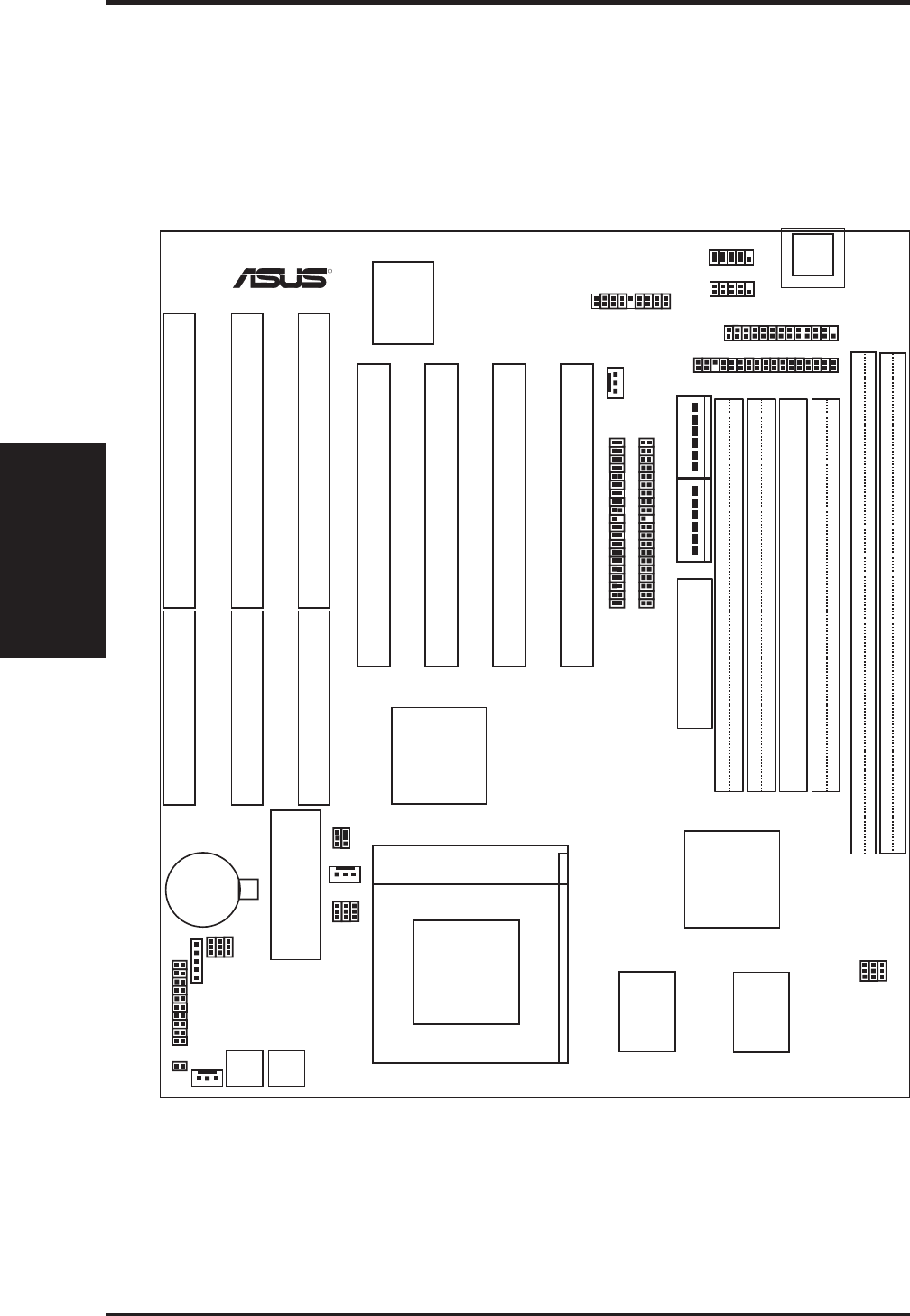

ASUS TXP4 Motherboard Layout
(Motherboard Layout)
III. INSTALLATION
Power Fan
ATX Power Input
Serial Ports
Panel Connectors
CPU ZIF Socket 7
Intel
PIIX4
PCIset
Secondary IDE
Primary IDE
Super
Multi-I/O
Flash BIOS
512KB Pipelined Burst L2 Cache
Intel
430TX
PCIset
USB, PS/2 Mouse,
IrDA
Clock Freq
IDE LED
Switching Voltage Regulators
Freq. Ratio
AT Power Input
P8
P9
CR2032 3Volts
Lithium Cell
BIOS Power
01
Floppy Drives
Parallel Port
CPU Fan
SIMM Socket 1 (32-bit, 72-pin module)
SIMM Socket 2 (32-bit, 72-pin module)
SIMM Socket 3 (32-bit, 72-pin module)
SIMM Socket 4 (32-bit, 72-pin module)
01
23 23
Row
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
Key-
board
ISA Slot 3
ISA Slot 2
ISA Slot 1
R
FS1
FS0
FS2
CPU Voltage
VID0
VID1
VID2
BF0
BF1
BF2
BBLKW
RTCLR
DIMM Socket 1 (64-bit, 168-pin module)
DIMM Socket 2 (64-bit, 168-pin module)
01
23
Row
Infrared
Chassis Fan
COM 2
COM 1
