USING THE WEB-BASED ADVANCED USER INTERFACE
3. Place your secondary Access Point within range of your Router
and near the area where you want to extend the range or add the
network segment� Typically, indoor range should be between 100
and 200 feet�
4. Connect power to your Access Point� Make sure the Access Point
is on and proceed to the next step�
5. From a computer already connected to your Router, access the
Advanced Setup Utility by opening your browser� In the address
bar, type in “192�168�2�1”� Do not type in “www” or “http://” before
the number� Note: If you have changed your Router’s IP address,
use that IP address�

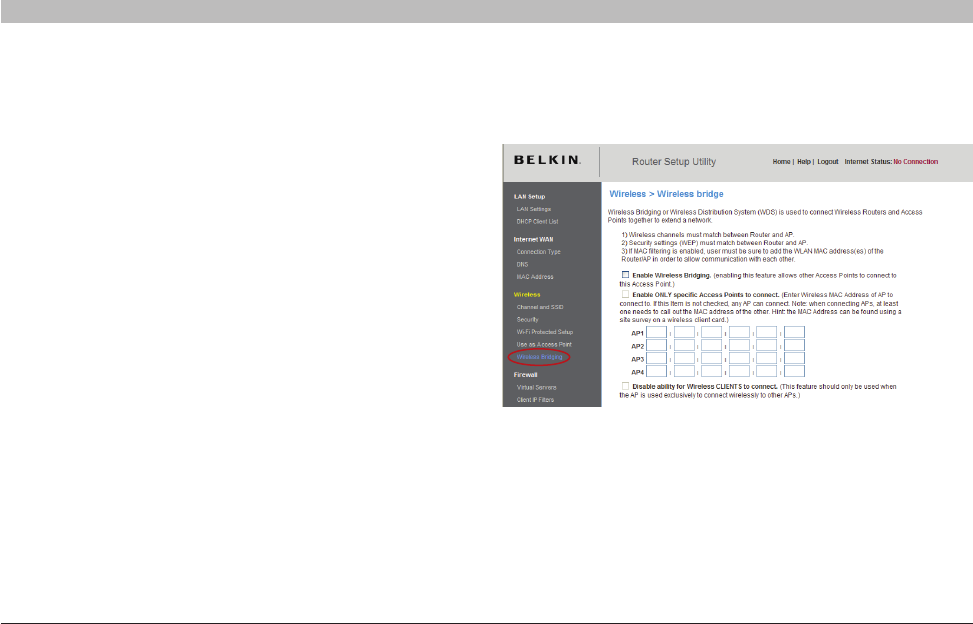

6. You will see the Router’s user interface in the browser window�
Click “Wireless Bridge” on the left-hand side of the screen� You will
see the following screen�
