Maintenance
Check the Tires
Check the air pressure in the tires. Tires with too much
air pressure will cause the unit to ride rough. Also, the
wrong air pressure will keep the mower housing from
cutting level. The correct air pressure is: Front Tires
0,97 BAR (14 PSI), Rear Tires 0,69 BAR (10 PSI).

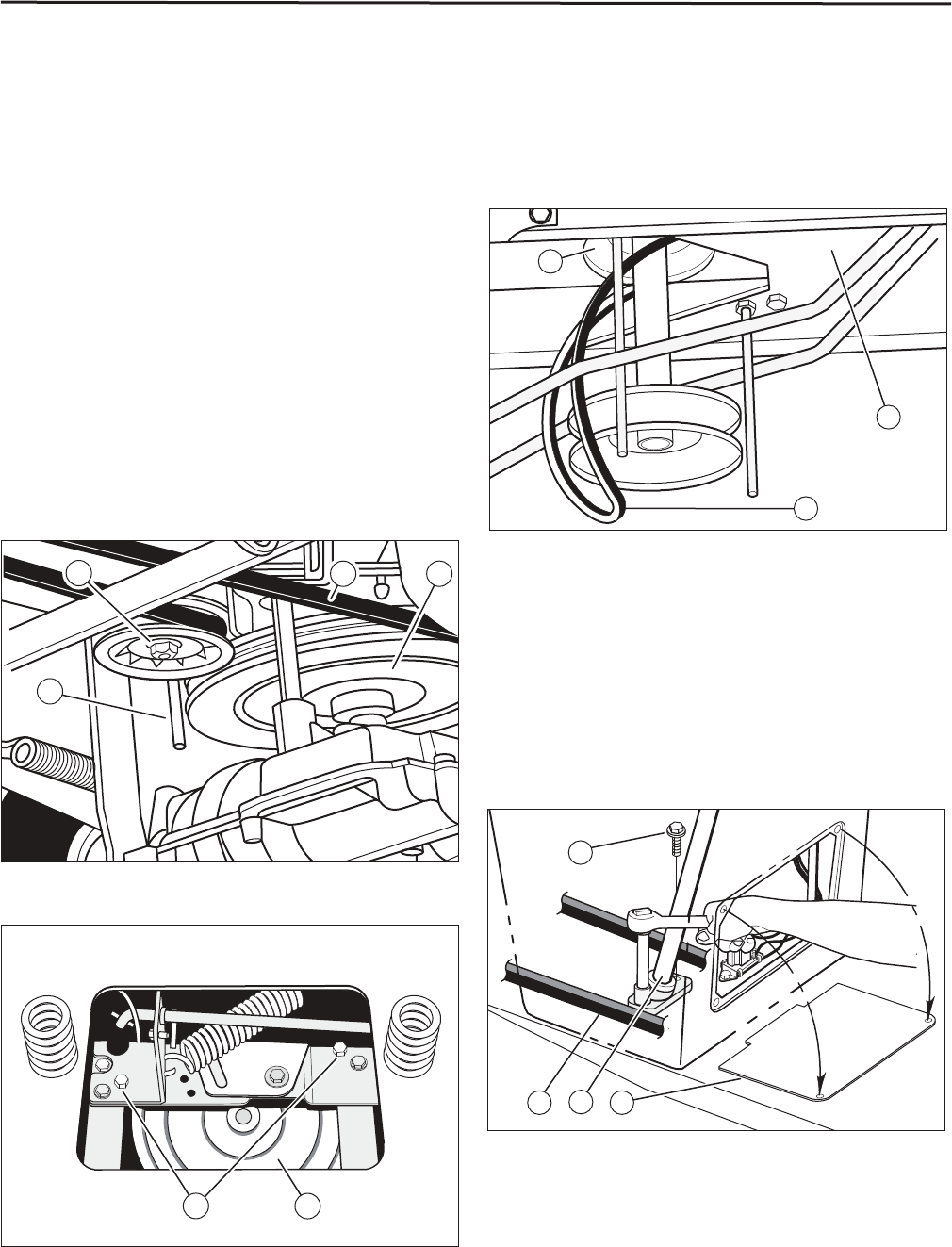

7. Remove the adjuster nut (2) from the shifter
bracket (3). Pull the motion drive belt over the
shifter bracket (3) (see
).
8. To remove the motion drive belt (1) from the stack
pulley (2), pull the front end of the belt under the
stack pulley and then back between the stack
pulley and the steering plate (3) (see
).
9. Remove the access panel (1) (see
).
10. Remove the two screws (4) that attach the steering
shaft assembly. Raise the steering wheel and
steering shaft assembly. Pull the motion drive
belt (3) under the steering shaft assembly.
11. Remove the motion drive belt . A correct re-
placement part or assistance is available from
an authorized service center in your area.
Replace the Motion Drive Belt
1. Remove the mower housing. See the instructions
to “Remove the Mower Housing.”
2. Completely push the pedal forward and engage
the parking brake.
3. Remove the idler pulley (1) (see
).
4. To access the belt guides (1), remove the battery
and battery tray (see
). See “Remove the
Battery.”
5. Loosen the belt guides (1) at the drive pulley (2).
6. Remove the motion drive belt (3) from the drive
pulley (4) (see
).
