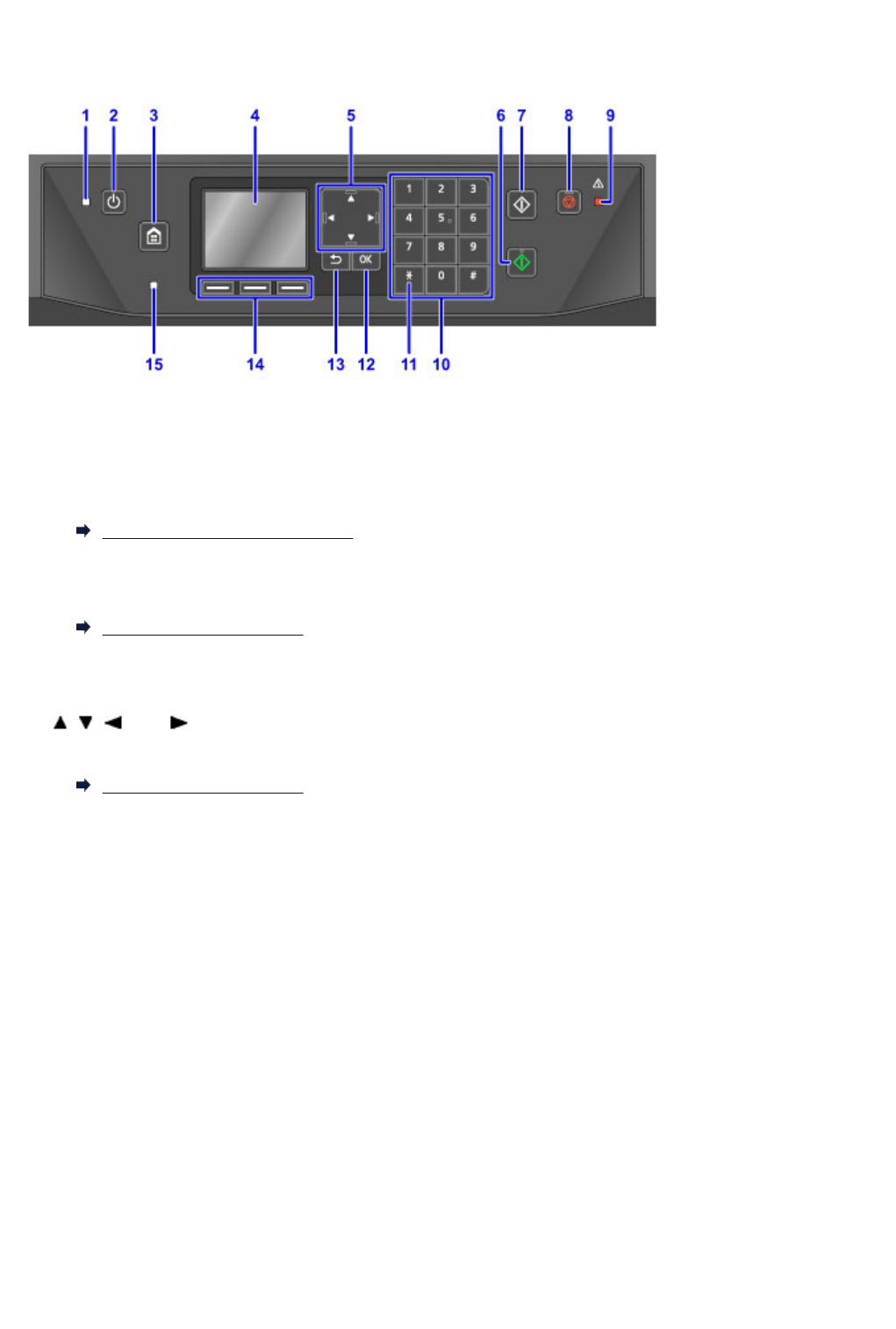

Operation Panel
* All lamps on the operation panel are shown lit in the figure below for explanatory purposes.
(1) POWER lamp
Lights after flashing when the power is turned on.
(2) ON button
Turns the power on or off. Before turning on the power, make sure that the document cover is closed.
Turning the Machine On and Off
(3) HOME button
Used to display the HOME screen.
LCD and Operation Panel
(4) LCD (Liquid Crystal Display)
Displays messages, menu items, and the operational status.
(5) , , , and buttons
Used to select a menu or setting item. This button is also used when entering characters.
LCD and Operation Panel
(6) Color button
Starts color copying, scanning, faxing, etc.
(7) Black button
Starts black & white copying, scanning, faxing, etc.
(8) Stop button
Cancels operation when print, copy, scan, or fax transmission/reception job is in progress.
(9) Alarm lamp
Lights or flashes when an error occurs.
(10) Numeric buttons
Used to enter numerical values such as the number of copies, as well as fax/telephone numbers and
characters.
(11) Tone button
Switches to tone dialing temporarily if your machine is connected to a rotary pulse line.
(12) OK button
Finalizes the selection of a menu or setting item. This button is also used to resolve an error or ejects
documents in the ADF (Auto Document Feeder).
