NG1F28-36-44 Installation Instructions
6
Side Panels
If desired, add optional side panels (not included) to the rack
following instructions included with the panel(s).
Doors
Add optional door(s) (not included) to the rack following
instructions included with the door(s).
IMPORTANT ! : If the door(s) are to be attached with the
pull-ring handle on the right side, the grounding screw,
washer and wire already installed on the door must be
removed and reinstalled on the opposite end of the door.
See instructions included with the door(s).
NOTE: If NOT adding door(s), proceed to Step 6.

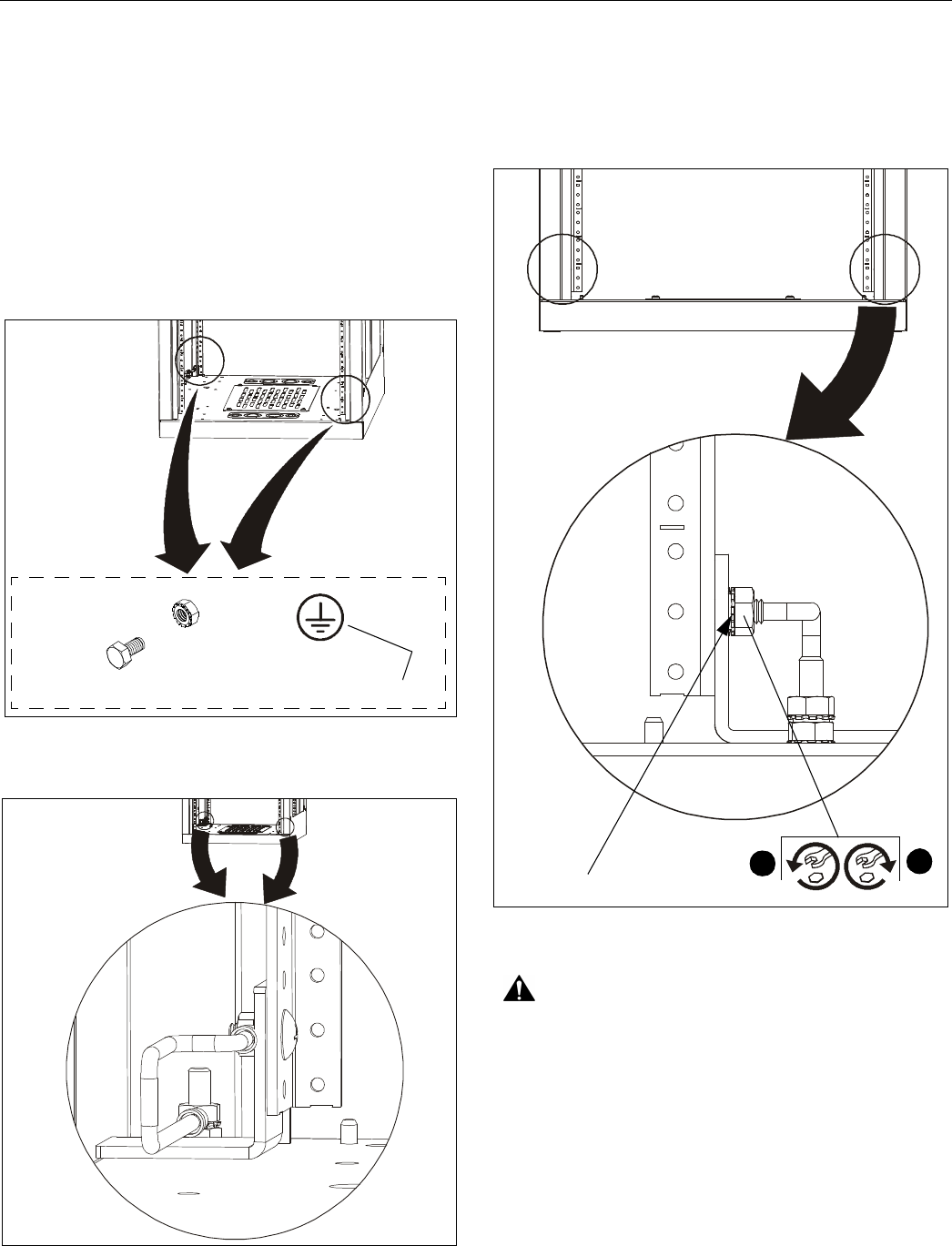

Figure 4
Figure 5
3. Remove and save nut from the grounding lug on side rail.
(See Figure 6)
4. Attach grounding wire from door to the grounding lug. (See
Figure 6)
5. Replace and tighten nut onto grounding lug. (See Figure 6)
Figure 6
DANGER: IMPROPER WIRING CAN LEAD TO DEATH
OR SEVERE PERSONAL INJURY! Grounding must be
installed by qualified personnel using a UL Recognized No.
12AWG Green and Yellow grounding wire connected to
grounding lug on rack.
(front view of rack)
Grounding screw and nut
installed at factory
affixed adjacent to grounding terminal.
Earthing symbol IEC 60417 No. 5019
Locations of
grounding lugs
3
5
Add door grounding wire
(front view of rack)
