Cisco IE 3010 Switch Getting Started Guide
20
Cisco IE 3010 Switch Getting Started Guide
78-19582-02

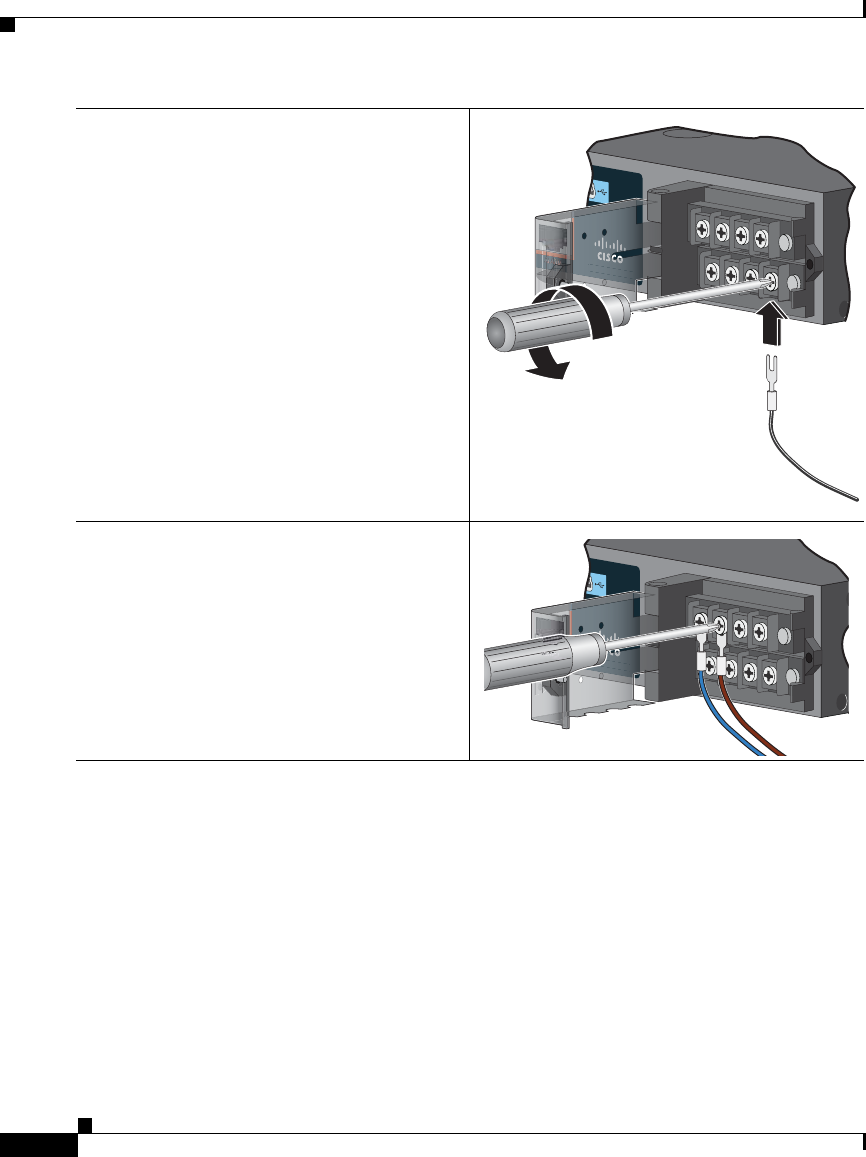

Step 7
Loosen the terminal screw, and slide the
spade terminal under the screw and washer.
Note Use the appropriate terminal screws,
depending on whether you are
installing a high-voltage (AC or DC)
or a low-voltage (DC) power supply.
Step 8
AC power:
Insert the line wire into the terminal screw
labeled L and the neutral wire into the
terminal screw labeled N.
Make sure that you cannot see any wire lead.
Only wire with insulation should extend from
the terminal screw.
