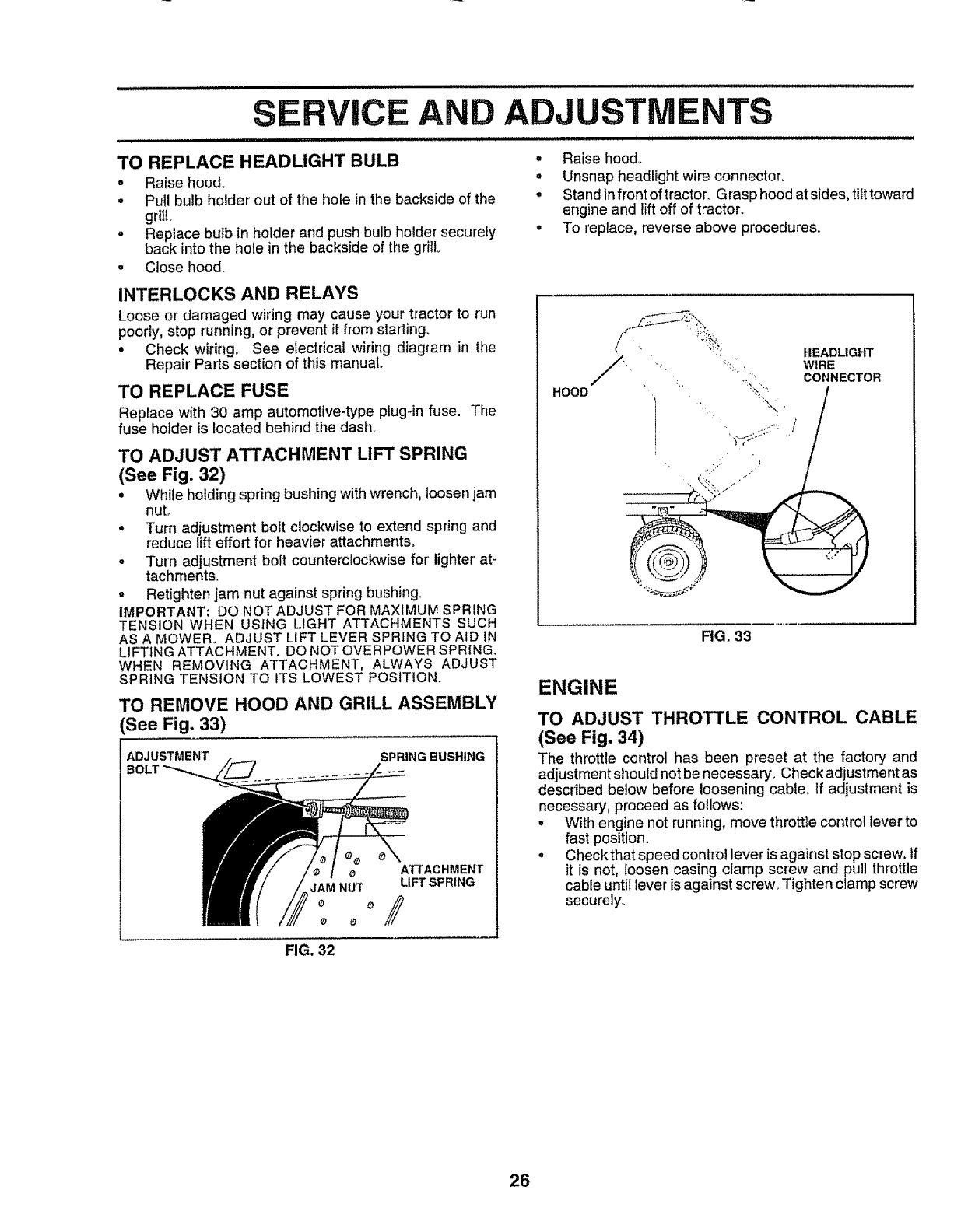

SERVICE
AND ADJ
TO REPLACE HEADLIGHT BULB
• Raise hood,
• Puff bulb holder out of the hole inthe backside of the
gritL
° Replace bulb in holder' and push bulb holder securely
back intothe hole in the backside of the griH_
° Close hood.
° Raise hood°
• Unsnap headlight wire connector.
° Stand in front of tractor° Grasp hood at sides, tiff toward
engine and lift off of tractor.
° To replace, reverse above procedures.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring° See electrical wiring diagram in the
Repair Parts section of this manual.
TO REPLACE FUSE
Replace with 30 amp automotive-type plug-in fuse. The
fuse holderis located behind the dash,
TO ADJUST ATTACHMENT LIFT SPRING
(See Fig, 32)
• While holding spring bushing with wrench, loosen jam
nut..
• Turn adjustment bolt clockwise to extend spring and
reduce lift effort for heavier attachments°
. Turn adjustment bolt counterclockwise for' lighter' at-
tachments.
° Retighten jam nut against spring bushing.
IMPORTANT, DO NOT ADJUST FOR MAXIMUM SPR{NG
TENSION WHEN USING LIGHT ATTACHMENTS SUCH
AS A MOWER, ADJUST LIFT LEVER SPRING TO AID IN
LIFTING ATTACHMENT. DO NOT OVERPOWER SPRING.
WHEN REMOVING ATTACHMENT, ALWAYS ADJUST
SPRING TENSION TO ITS LOWEST POSITION_
TO REMOVE HOOD AND GRILL ASSEMBLY
See Fig, 33)
ADJUSTMENT SPRING BUSHING
o ATTACHMENT
JAM NUT LIFT SPRING
o _
/_ i;%,,
•: s
HOOD
HEADLIGHT
WIRE
CONNECTOR
FIG. 33
ENGINE
TO ADJUST THROTTLE CONTROL CABLE
(See Fig, 34)
The throttle control has been preset at the factory and
adjustment should not be necessar¥_ Check adiustment as
described below before loosening cable° If adjustment is
necessary', proceed as follows:
° With engine not running, move throttle control lever to
fast position.
° Check that speed contro! lever is against stop screw. If
it is not, loosen casing clamp screw and pull throttle
cable until lever isagainst screw_Tighten clamp screw
securely_
FIG. 32
26
