Service Manual
Precautions
5-16

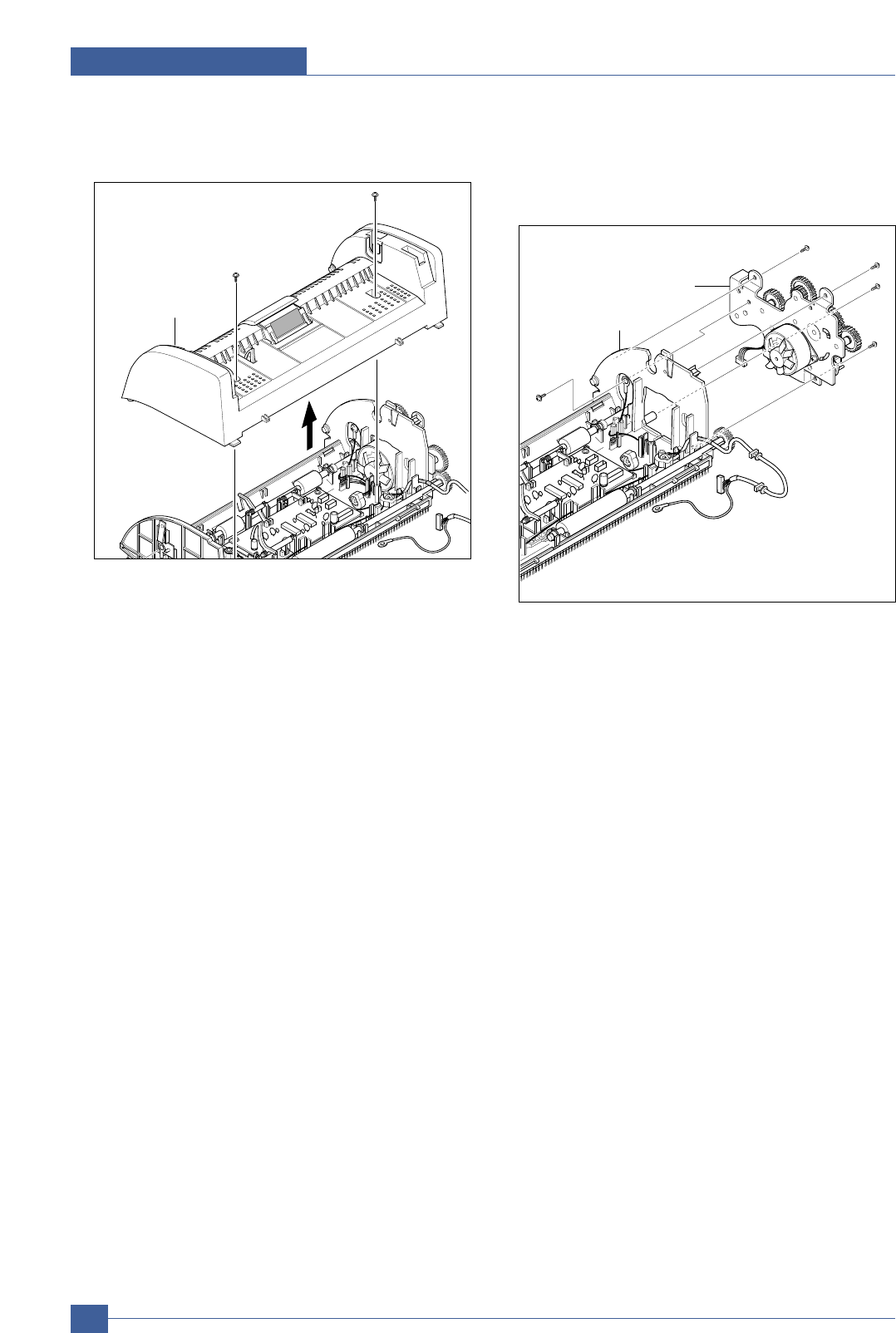

6. Remo the two screws securing the ADF Upper and
remove it, as shown below.
Notice : Before removing the ADF Engine Ass'y take
great care to note the position of the Ferrite
Core and the Motor Harness routing. When
refitting the ADF Engine Ass'y ensure that the
Harness and Ferrite are properly located and
are clear of the Motor Fan and White Bar Clip.
7. Unplug the one connector and remove four screws
securing the ADF Motor Ass'y and then remove the
one screw securing the Ground Cable, as shown
below. Then take out the ADF Motor Ass'y.
ADF Motor Ass'y
ADF Lower
ADF Upper
