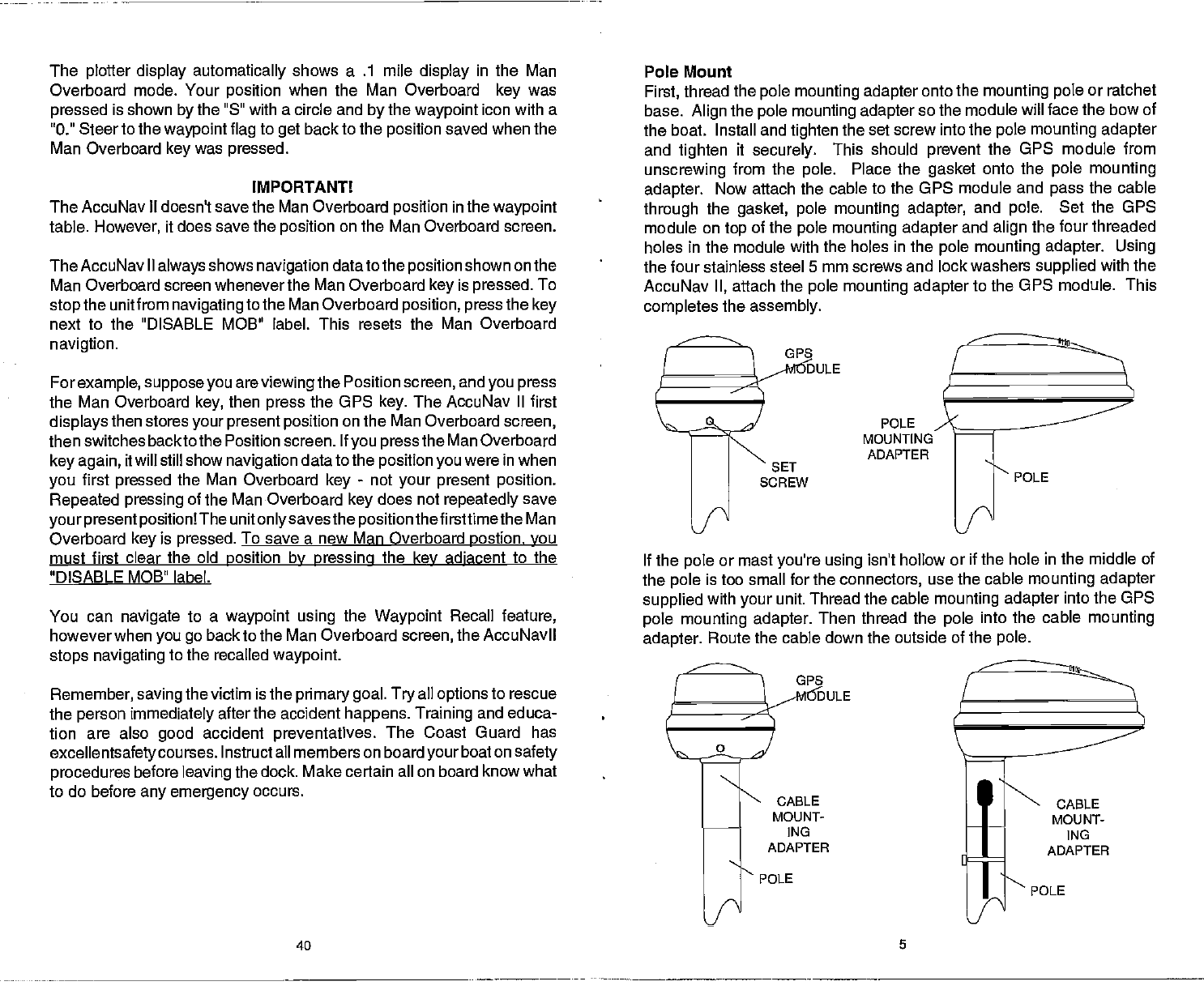

The
plotter display automatically
shows a .1 mile
display
in the Man
Pole Mount
Overboard mode. Your
position
when the Man Overboard
key
was
pressed
is shown
by
the "S" with a circle and
by
the
waypoint
icon with a
"0" Steer to the
waypoint flag
to
get
back to the
position
saved when the
Man Overboard
key
was
pressed.
IMPORTANT!
The AccuNav II doesn't save the Man Overboard
position
in the
waypoint
table.
However,
it does save the
position
on the Man Overboard screen.
The AccuNav II
always
shows
navigation
data to the
position
shown on the
Man Overboard screen whenever the Man Overboard
key
is
pressed.
To
stop
the unitfrom
navigating
to the Man Overboard
position, press
the
key
next
to the "DISABLE MOB" label. This resets the Man Overboard
navigtion.
For
example, suppose you
are
viewing
the Position
screen,
and
you press
the
Man Overboard
key,
then
press
the GPS
key.
The AccuNav II first
displays
then stores
your present position
on the Man Overboard
screen,
then
switches backto the Position screen. If
you press
the Man Overboard
key again,
itwill still show
navigation
data to the
position you
were in when
you
first
pressed
the Man Overboard
key
-
not
your present position.
Repeated
pressing
of the Man
Overboard
key
does not
repeatedly
save
your present position!
The unit
onlysaves
the
position
thefirsttimethe Man
Overboard
key
is
pressed.
To save a new Man Overboard
postion. you
must first clear
the old
Dosition by Dressing
the key
adiacent
to the
"DISABLE MOB" label.
You can
navigate
to a
waypoint using
the
Waypoint
Recall
feature,
however when
you
go
back to the Man Overboard
screen,
the AccuNavll
stops navigating
to the recalled
waypoint.
Remember, saving
the victim is the
primary goal. Try
all
options
to rescue
the
person
immediately
after the
accident
happens. Training
and educa-
tion are
also
good
accident
preventatives.
The Coast Guard has
excellentsafetycourses.
Instructall members on board
yourboat
on
safety
procedures
before
leaving
the
dock. Make certain all on board know what
to
do before
any
emergency
occurs.
40
First,
thread the
pole mounting adapter
onto the
mounting pole
or ratchet
base.
Align
the
pole mounting adapter
so the module will face the bow of
the boat. Install and
tighten
the set screw into
the
pole mounting adapter
and
tighten
it
securely.
This
should
prevent
the GPS module from
unscrewing
from the
pole.
Place the
gasket
onto the
pole mounting
adapter.
Now attach the cable to the GPS module
and
pass
the cable
through
the
gasket, pole mounting adapter,
and
pole.
Set the GPS
module on
top
of the
pole mounting
adapter
and
align
the four threaded
holes in the module with the holes
in the
pole
mounting adapter. Using
the four stainless steel 5 mm screws and lock
washers
supplied
with the
AccuNav
II,
attach the
pole mounting adapter
to the
GPS module. This
completes
the
assembly.
POLE
MOUNTING
ADAPTER
If the
pole
or mast
you're using
isn't hollow or
if the hole in the middle of
the
pole
is too small for the
connectors,
use the cable
mounting adapter
supplied
with
your
unit. Thread the cable
mounting
adapter
into the OPS
pole mounting adapter.
Then thread the
pole
into the cable
mounting
adapter.
Route the cable down the outside
of the
pole.
5
SET
SCREW
POLE
DULE
CABLE
MOUNT-
ING
ADAPTER
POLE
CABLE
MOUNT-
ING
ADAPTER
POLE
