3.6.2- Programming mode
The TK14 has a PROGRAMMING MODE in order to set up some parameters of the printer, without
sending any command neither setting micro-switches.
In this mode, the printer makes some questions to the user. These questions must be answered by
pressing one of the two push buttons.
PFEED
button means
“YES”
and
“PROG”
button means
“NO”
.
Fig. 3.6-
PROGRAMMING MODE example.
To start the programming mode, turn off the printer and,
holding the PROG button pressing, turn on the printer.
Then the printer asks for the configurable parameters.
These are the configurable parameters during
PROGRAMMING MODE:
•
Baudrate: 4800, 9600, 19200 or 38400 baud.
•
Parity for serial transmission: ODD, EVEN, NO parity.
•
Cutter mode: total cut, partial cut or passive cut
(no cutter).
Allways select “passive cut” for TK14
.
•
Wait until ticket pickup:
Enabling this option, user can not print a new
ticket if the actual printed ticket has not been
picked up; therefore, it can avoid a possible paper
jam. User has to send the
GS V
command at the
ticket end. While TK14 is waiting the ticket pick
up, BUSY signal will remain active (BUSY=1).
This option is enabled by default.
Alternately, user can make this control himself,
by the
DEL EOT
command, testing the ticket pick
up flag.
Any way, application programmer has to estimate
the property application consequences and
choose the correct option.
•
Paper quality:
a) Normal paper
TF50KS-E2D
TF77KS-E2 (or similar)
b) Wide temperature paper
TL51KS-R2
TL69KS-R2 (or similar)
c) High sensitive paper
TL69KS-HG76 (label paper)
•
Carry Return: Enable / Disable CR command.

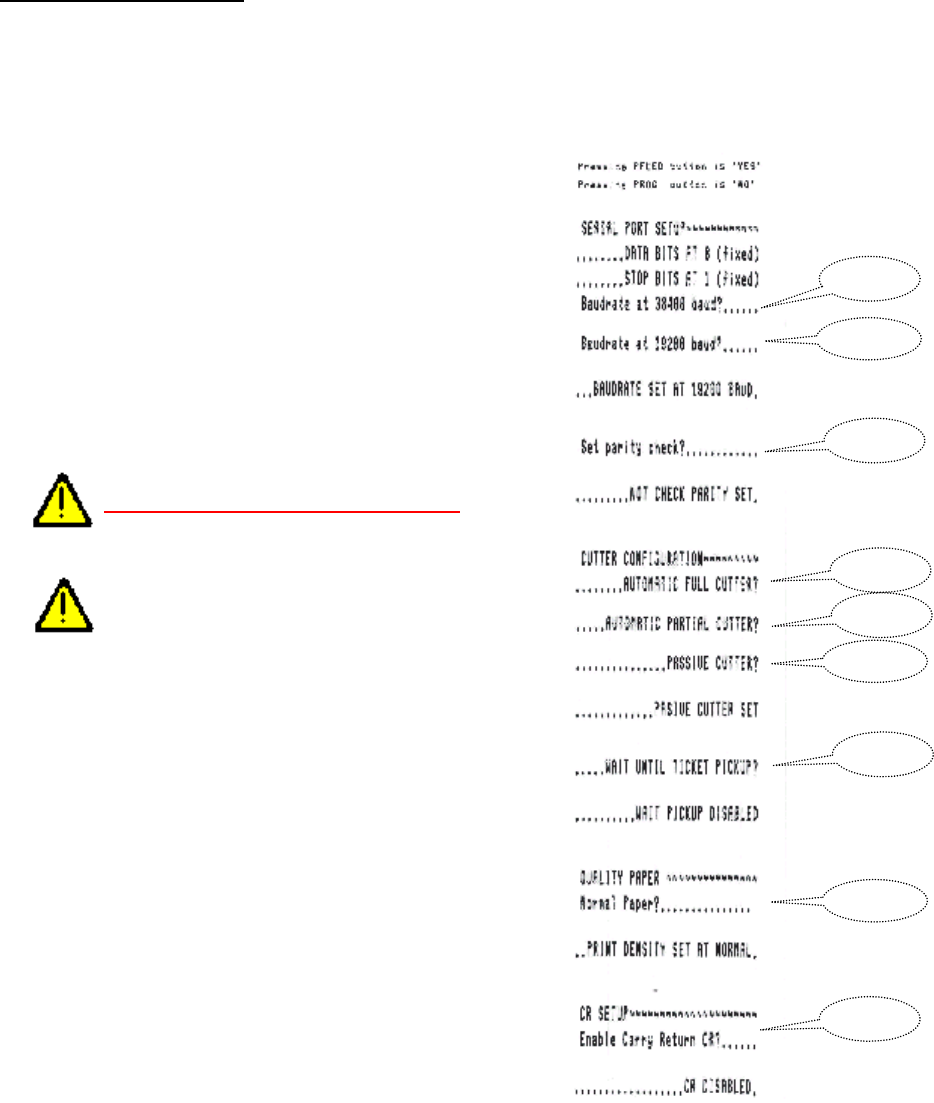

Next figure shows how the printer asks for the configurable
parameters:
NO
YES
NO
NO
NO
YE
YE
NO
NO
