DESCRIPTION SPECIfICaTIONS

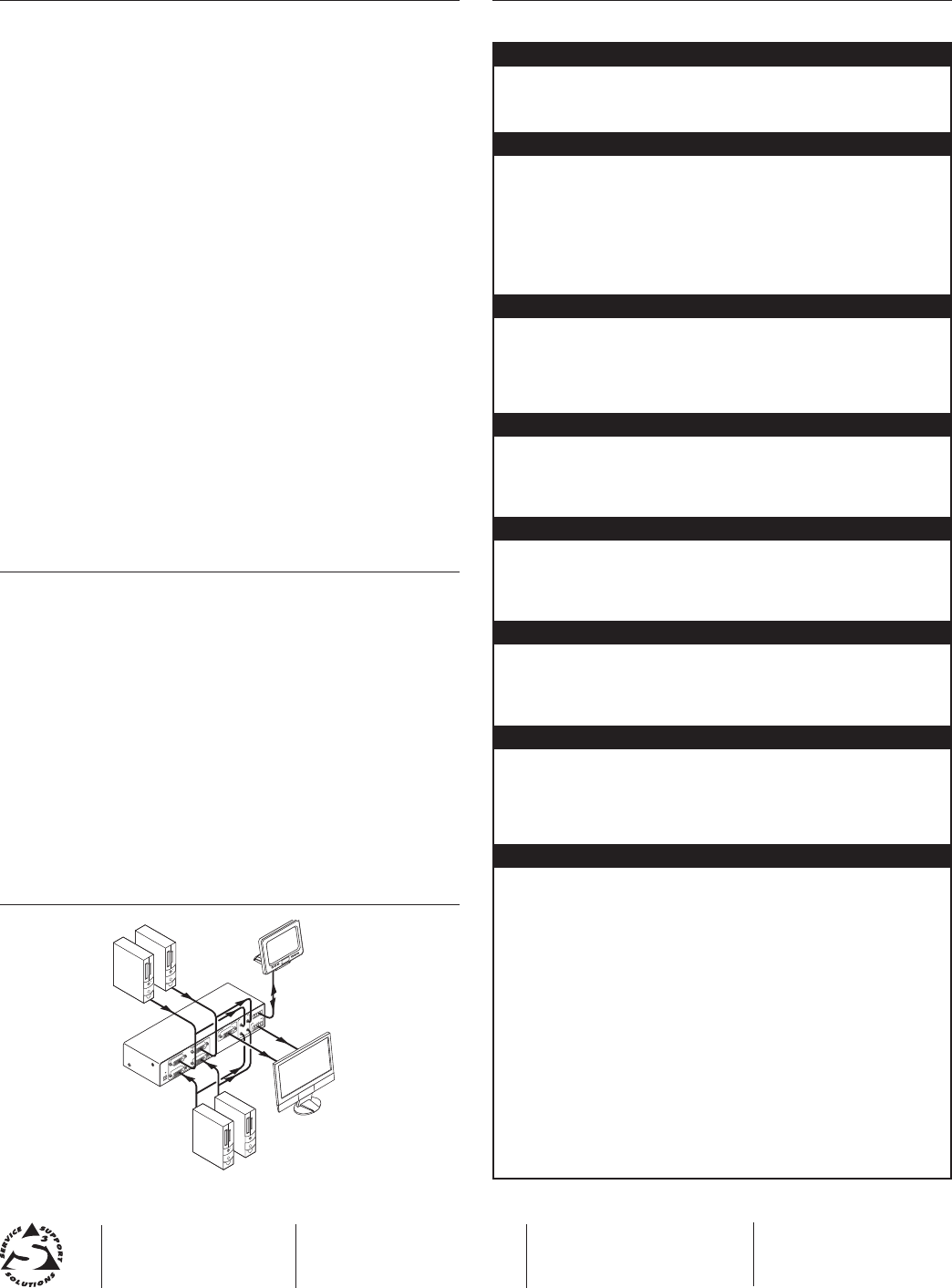

aPPlICaTION DIagRam
Specifications are subject to change without notice.
© 2007 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
07-09
68-1426-01
REV. A
0.
4
A
M
A
X
1
2V
P
O
W
E
R
+
I
N
PU
T
S
I
N
PU
T
S
OU
T
P
U
T
1
1
O
U
T
P
U
T
R
EM
O
TE
/
A
U
T
O
-
SW
2
3
2
4
Extron
SW 4 DVI A
DVI Switcher
With Audio
PCs
w/ DVI Output
& Audio
PCs
with DVI Output
& Audio
Display
w/ DVI Input
& Audio
RS-232
Control
Extron Electronics, Europe
Beeldschermweg 6C, 3821 AH Amersfoort
The Netherlands
+800.3987.6673 +31.33.453.4040
FAX +31.33.453.4050
Extron Electronics, Asia
135 Joo Seng Rd. #04-01
PM Industrial Bldg.
Singapore 368363
+65.6383.4400 FAX +65.6383.4664
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
+81.3.3511.7655 FAX +81.3.3511.7656
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
800.633.9876 714.491.1500
FAX 714.491.1517
The SW2 DVI A and SW4 DVI A are two and four input, one output, single
link DVI - Digital Visual Interface switchers that allow multiple DVI input signals
to be switched to one compatible display. These switchers are compatible with
PC resolutions up to 1920x1200 @ 60 Hz, and also support HDTV 1080p.
To enhance and simplify integration, both models feature the EDID Minder
that automatically manages the EDID information between the digital display
device connected to the output and all the input sources. By maintaining
continuous EDID communication with all sources, EDID Minder ensures all DVI
sources power up properly and maintain their video outputs whether or not
they are actively connected to the digital display device through the switcher's
output. Front panel LED signal presence indicators provides a quick means of
active signal verification.
Independent input equalization reduces the need for additional signal
conditioning equipment by compensating for signal loss when using long
input cable assemblies. Front panel switches allow user-selectable EQ
levels. The SW DVI A Series switchers are user-configurable for manual or
autoswitching modes. Autoswitching allows any input of the switcher to be
selected automatically when the switcher detects a signal.
Convenient control options allow easy integration into a variety of
environments. These options include front panel control, IR, RS-232, and
autoswitching. To further simplify integration, both SW DVI A switchers are
housed in compact, 1U, half rack width enclosures that are easily mounted
into optional Extron 1U Universal Rack Shelf Kits.
fEaTuRES
n Single link DVI-D and stereo audio switching
n Supports resolutions up to 1920x1200, including HDTV 1080p
n EDID Minder
n Independent input equalization
n Source signal presence indication
n Active Audio Buffering - Converts unbalanced audio signals to
balanced line level signals
n Autoswitching capabilities
n RS-232 control
n IR remote control with optional IR 102
n Rack-mountable 1U, half rack width metal enclosure
n External international power supply included
VIDEO
Gain ...................................................... Unity
Maximum data rate ............................... 1.65 GHz
Switching speed ..................................... 200 ns (max.)
Resolution ............................................... Up to HDTV (1080p) or 1920x1200 @ 60 Hz
VIDEO Input
Number/signal type ................................ 2 or 4 single link DVI-D digital component video
Connectors ............................................ 2 or 4 female DVI-D
Nominal levels
Digital video ........................................
1.2 Vp-p
DDC (Display Data Channel) ...............
TTL: 5.0 Vp-p
Minimum/maximum levels ..................... 0.5 V to 1.0 Vp-p with no offset
Equalization ............................................ Switch selectable for up to -12 dB of cable loss
TDMS clock jitter .................................... 0.30 T
bit
relative to ideal recovery clock
NOTE: T
bit
= one tenth of the pixel time.
VIDEO Output
Number/signal type ................................ 1 DVI-D digital component video
Connectors ............................................ 1 female DVI-D
Nominal level ......................................... 1.2 Vp-p
Minimum/maximum levels ..................... 0.5 V to 1.0 Vp-p with no offset (follows input)
TDMS clock jitter .................................... 0.25 Tbit (max.) relative to ideal recovery clock
NOTE: T
bit
= one tenth of the pixel time.
AuDIO
Gain ..................................................... Unbal. output: 0 dB; bal. output: +6 dB
Frequency response ............................... 20 Hz to 20 kHz, ±0.05 dB
THD + Noise .......................................... 0.01% @ 1 kHz at nominal level
S/N ......................................................
>90 dB at maximum output (unweighted)
Stereo channel separation ...................... >80 dB @ 20 Hz to 20 kHz
AuDIO Input
Number/signal type ................................ 2 or 4 stereo, unbalanced
Connectors ............................................. (2 or 4) 3.5 mm mini audio jacks
Impedance ............................................. >10k ohms unbalanced, DC coupled
Nominal level ......................................... -10 dBV (316 mVrms)
Maximum level ....................................... +16 dBu, unbalanced at 1% THD+N
AuDIO Output
Number/signal type ................................ 1 stereo, balanced/unbalanced
Connectors ............................................. (1) 3.5 mm captive screw connector, 5 pole
Impedance ............................................. 50 ohms unbalanced, 100 ohms balanced
Maximum level (Hi-Z) ............................ >+28 dBu, bal.; > 20 dBV, unbal. at 1% THD+N
Maximum level (600 ohm) .................... >+21 dBm, bal.; >18 dBm, unbal. at 1% THD+N
COntrOl/rEmOtE — swItChEr
Serial control port .................................. (1) RS-232, 3.5 mm captive screw connector,
5 pole (shared with autoswitching control)
Contact closure ....................................... (1) 3.5 mm captive screw connector, 5 pole
IR controller module ............................... IR 102 remote control (70-224-10, optional)
Program control ..................................... Extron’s control/configuration program for
Windows
®
Extron’s Simple Instruction Set (SIS
™
)
GEnErAl
External power supply ............................ 100 VAC to 240 VAC, 50/60 Hz, external; to
12 VDC, 1 A, regulated
Power input requirements ....................... 12 VDC, 0.7 A
Rack mount ............................................
Yes, with optional 1U, 9.5” deep rack shelf, part
#60-190-01(RSU 129) or 60-604-01 (RSB 129).
Also furniture mountable with optional Under Desk
Mounting Kit, #70-077-01 (MBU 125); or Through
Desk Mounting Kit, #70-077-02 (MBD 129).
Enclosure dimensions ............................. 1.75" H x 8.75" W x 3.0" D (1U high, half rack
wide) 4.4 cm H x 22.2 cm W x 7.6 cm D
Product/shipping weight ........................ 0.6 lbs (0.3 kg) / 2 lbs (1 kg)
Listings ................................................... UL, CUL
Compliances ........................................... CE, FCC Class A, VCCI, AS/NZS, ICES
Warranty ................................................ 3 years parts and labor
NOTE: All nominal levels are at ±10%.
Model Version Description Part Number
SW 2 DVI A Two Input DVI Switcher with Stereo Audio ..............
60-840-01
SW 4 DVI A Four Input DVI Switcher with Stereo Audio .............
60-840-02
Optional Accessories
IR 102 Remote Control Replacement IR Remote ........................................ 70-224-10
