2-28 Electrical
Section 2: Electrical

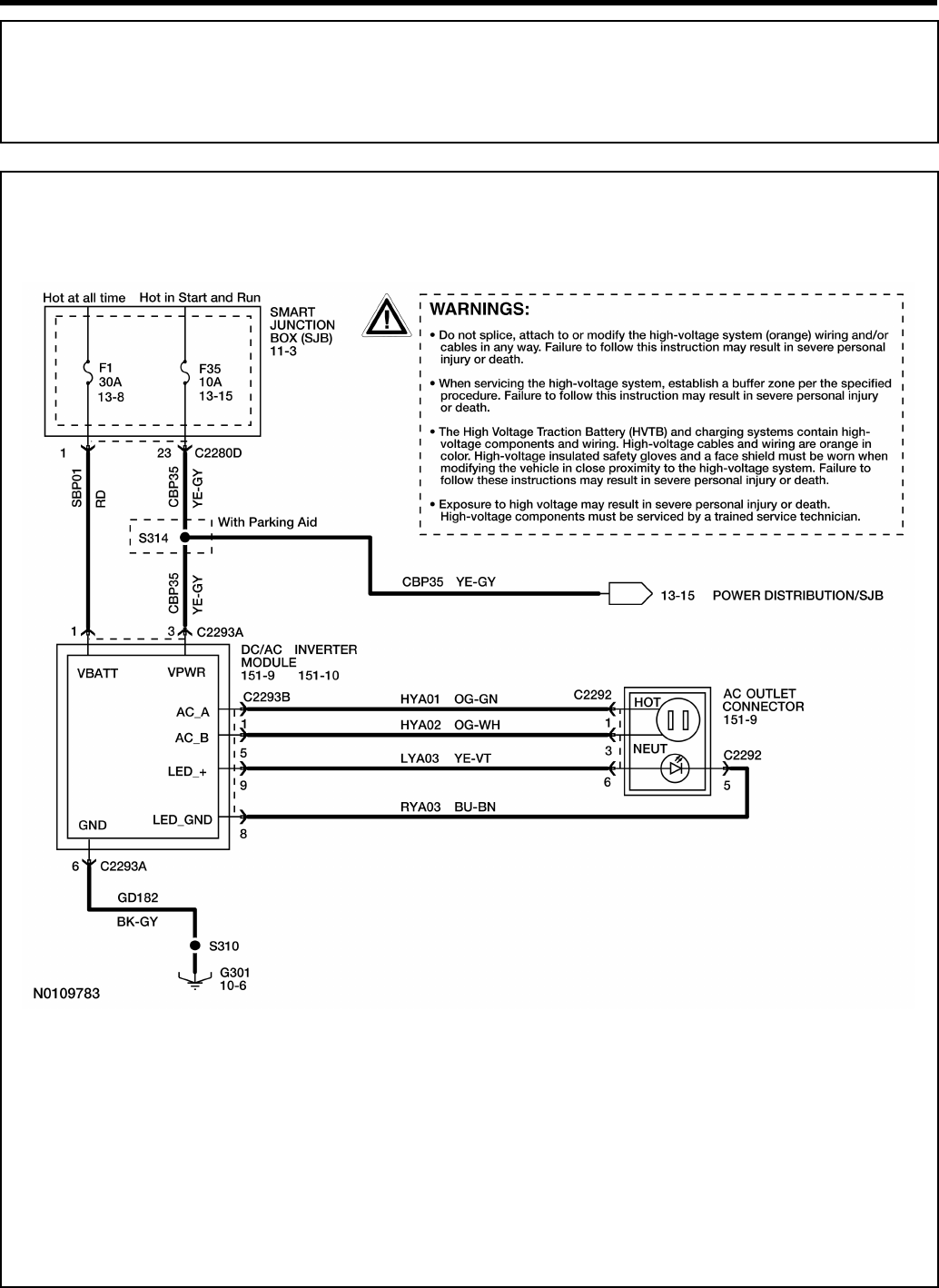

Note: Smart junction box (SJB) fuse 1 (30A), circuit SBP01 (RD) for the DC/AC power inverter is
at maximum available current limit when the power inverter is installed and used. Do not
splice into this fused circuit when the DC/AC power inverter is installed and used.
2010 Escape Hybrid, Mariner Hybrid Modifiers Guide, 07/2009
