D-108 Quick Operation Guide
AC IN
MIDI
SCSI
OUTPUT
INPUT
DATA
OPTICAL
OUTPUTINPUT
BUSS OUT (GROUP OUT) 1~4
TAPE IN 1~8
D-108
Mixing console
PATCHBAY

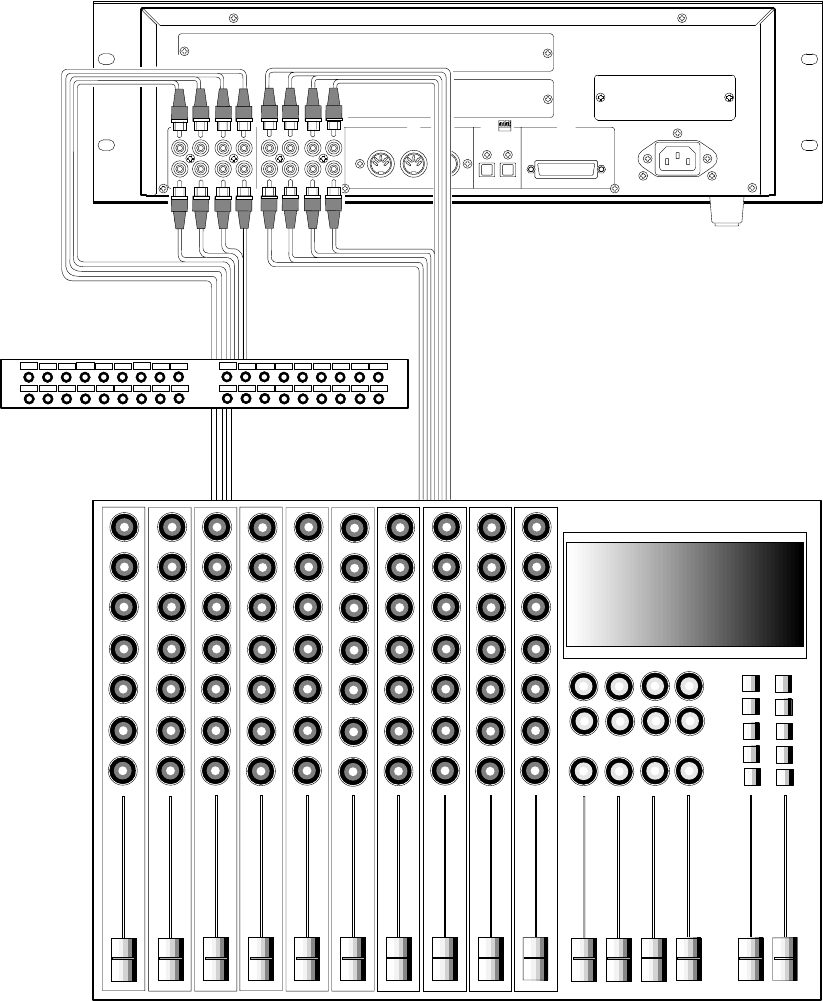

Connecting a mixer that has eight TAPE INs and four BUSS OUTs (or GROUP OUTs)
Connect TAPE INs 1-8 of the mixer to ANALOG OUTs 1-8 of the D-108, and connect BUSS OUTs (GROUP
OUTs) 1-4 to ANALOG INs 1-4 of the D-108.
In this case, first record Tracks 1-4, then re-patch the cables to record Tracks 5-8. It would be convenient
to connect a patch bay between the D-108’s ANALOG INs and the mixer’s BUSS OUTs (GROUP OUTs) so that
you can make connections from the front.
