7.2 Replacing the Pad ASSY
ScanSnap fi-5110EOXM Operator's Guide 89
Replacing Consumables
7

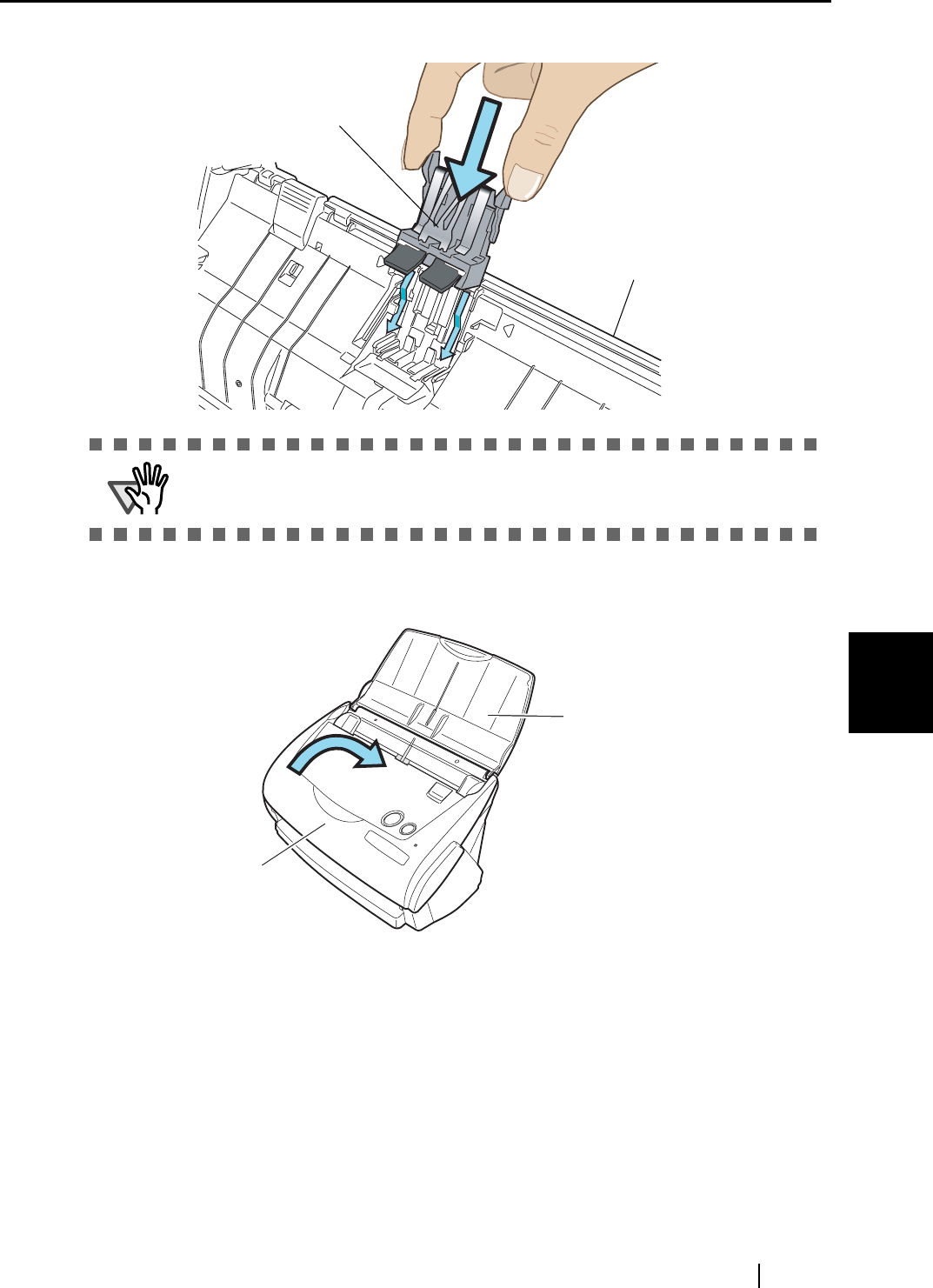

4. Attach the new Pad ASSY.
5. Close the ADF cover.
You should hear the ADF click when it returns to its original position.
ATTENTION
Make sure that the Pad ASSY is firmly attached. Otherwise, document jams or
other feeding errors may occur.
Pad ASSY
ADF cover
Paper chute cover
ADF cover
