8
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs should
be 16″ (40.6 cm) or 24″ (61 cm) from this mark.
Draw a line down the center of the studs.
THE OVEN MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.
1
Remove the box containing the installation
instructions, filters, exhaust adaptor, damper and
the small hardware bag. Do not remove the
Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
REMOVING THE OVEN FROM
THE CARTON/REMOVING THE
MOUNTING PLATE

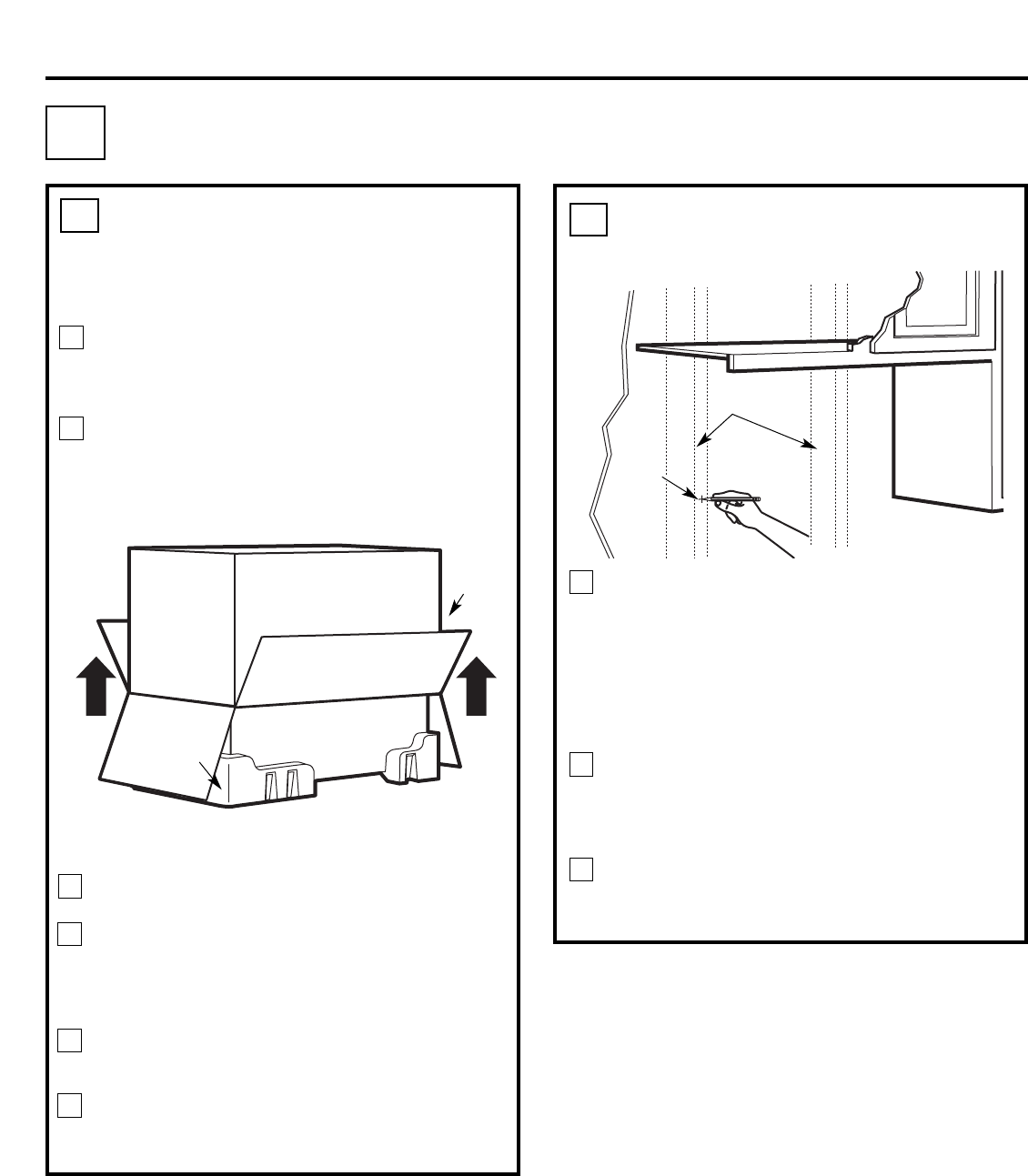

FINDING THE WALL STUDS
B
.
A
.
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Carton
Pull the carton up and off the oven.
2
Styrofoam
Installation Instructions
3
1
Open the oven door and remove the styrofoam
pack from inside the oven. Remove the tape
covering the turntable hub.
6
Set the oven upright. Remove and properly discard
plastic bags and Styrofoam.
5
The mounting plate is attached to the back of the
oven. Remove the two screws holding it to the oven.
The plate will be used as the rear wall template and
for mounting the oven to the wall.
4
