Cascading console switches 66

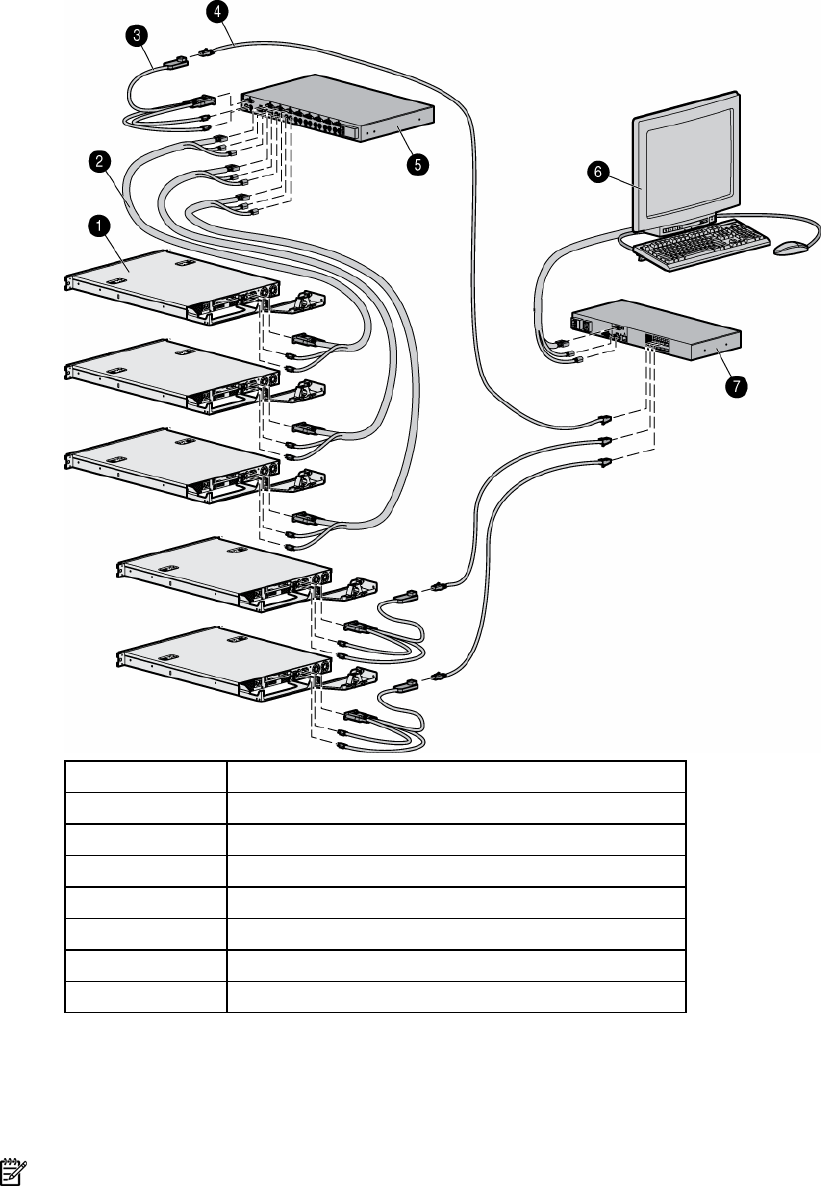

Example of a Compaq Server Console Switch cascade configuration
Item Description
1 Server
2 KVM cable
3 PS/2 Interface Adapter
4 UTP CAT5 cable
5 Main Compaq Server Console Switch
6 Local port
7 Cascaded console switch
Cascading an HP KVM Server Console Switch with an HP
IP Console Switch
NOTE: To perform a firmware upgrade for a cascaded HP KVM Server Console Switch and all attached
interface adapters, you must locally connect the keyboard, monitor, and mouse to the cascaded HP KVM
Server Console Switch to access the local OSD.
1. Mount the console switches in the rack.
