Configuring Port-Based Access Control (802.1x)
Displaying 802.1x Configuration, Statistics, and Counters
An Unauth VLAN ID appearing in the
Current VLAN ID column for the same port
indicates an unauthenticated client is
connected to this port.
(Assumes that the port is not a statically
configured member of VLAN 100.)
Items 1 through 3 indicate that an authenticated client is
connected to port B2:
1. Open in the Status column
2. Authorized in the Authenticator State column
3. The Auth VLAN ID (101) is also in the Current VLAN ID
column. (This assumes that the port is not a statically
configured member of VLAN 101. )
1
2
3
4
5
4. A "0" in the row for port B3 indicates there is no
Authorized VLAN configured for port B3.
5. "No PVID" means there is currently no untagged
VLAN membership on port B4.

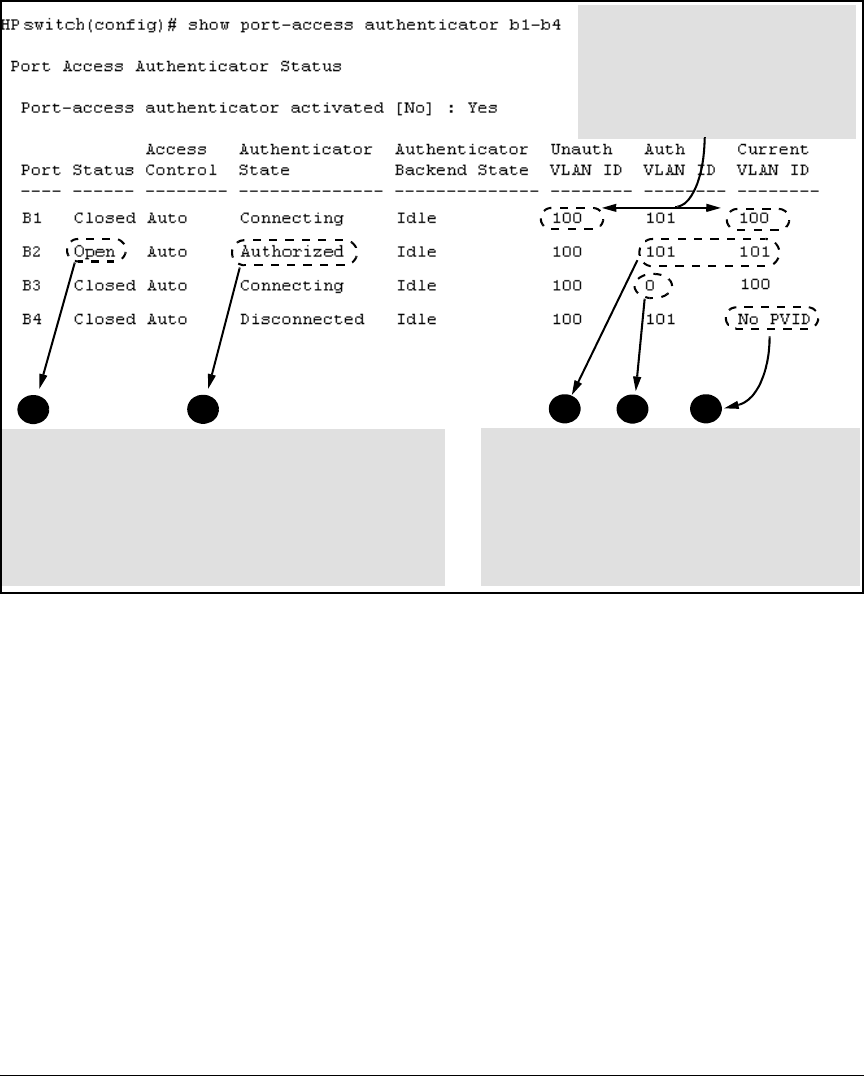

Figure 6-5. Example Showing Ports Configured for Open VLAN Mode
Thus, in the show port-access authenticator output:
■ When the Auth VLAN ID is configured and matches the Current VLAN ID
in the above command output, an authenticated client is connected
to the port. (This assumes the port is not a statically configured
member of the VLAN you are using for Auth VLAN.)
■ When the Unauth VLAN ID is configured and matches the Current VLAN
ID in the above command output, an unauthenticated client is
connected to the port. (This assumes the port is not a statically
configured member of the VLAN you are using for Unauth VLAN.)
Note that because a temporary Open VLAN port assignment to either an
authorized or unauthorized VLAN is an untagged VLAN membership, these
assignments temporarily replace any other untagged VLAN membership that
is statically configured on the port. For example, if port A12 is statically
configured as an untagged member of VLAN 1, but is configured to use VLAN
6-39
