Removing Assemblies
6-31
Paper Handling PCA
1
Remove the Top Cover (page 6-12) and Left Side Cover
(page 6-23).
2
Facing the left side of the printer, disconnect the ribbon cable
from the PCA.
3
Remove two self-tapping screws and two machine screws from
the PCA.
4
Rotate the PCA outward, and disconnect the five cables. See
Figure 6-23.

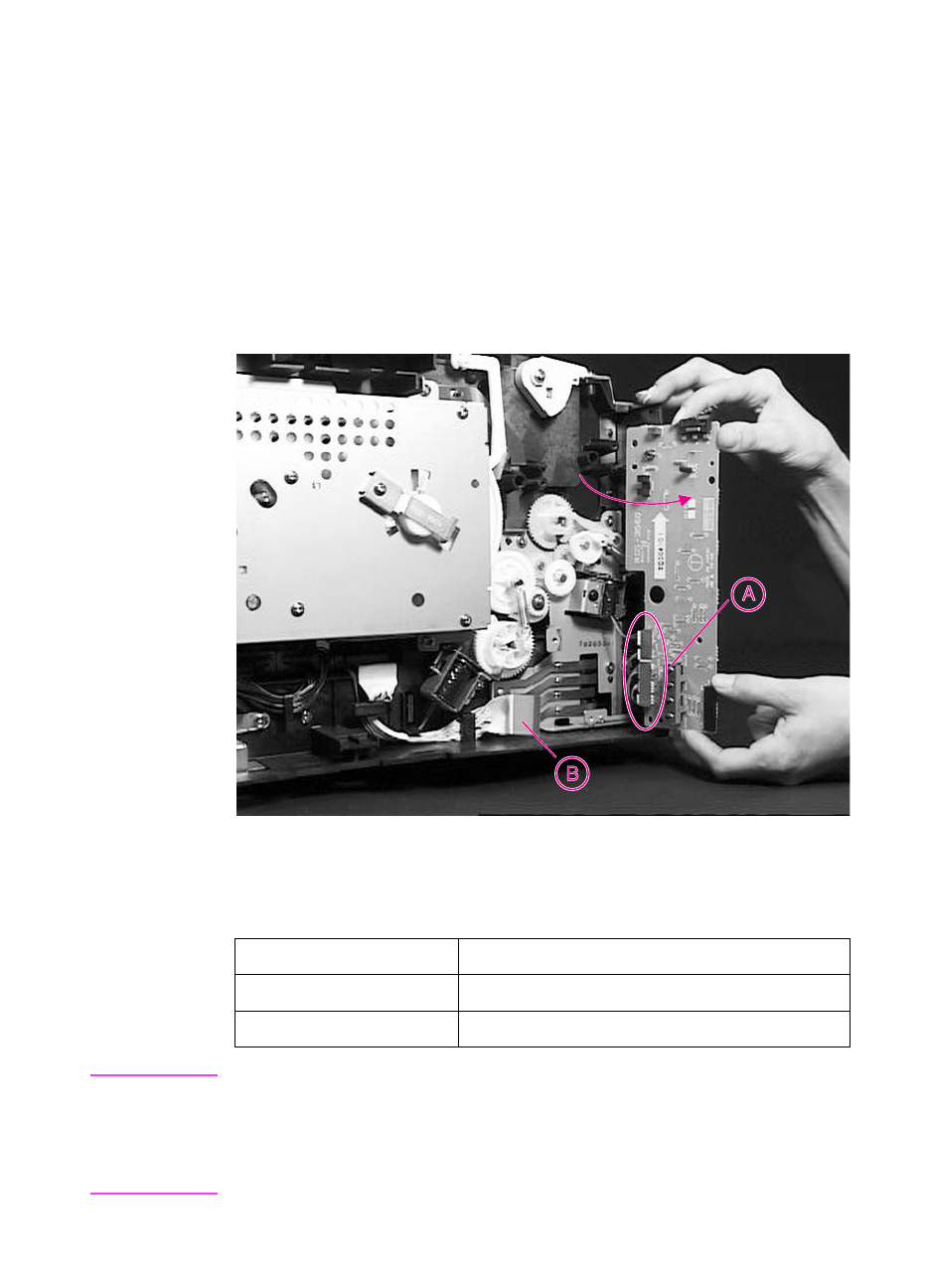

Figure 6-23
Paper Handling PCA
Hint
To install a self-tapping screw, first turn it to the left until it clicks,
indicating the threads are seated. Then, turn it to the right to tighten.
Do not over-tighten
. If a self-tapping screw-hole becomes stripped,
repair of the screw-hole or replacement of the affected assembly is
required.
Item Explanation
A
Cables
B
Ribbon Cable
