2-7
R Class System Installation
1. Install the Rack Kit and Server Into the Cabinet
1B. Mount the System Into the Cabinet

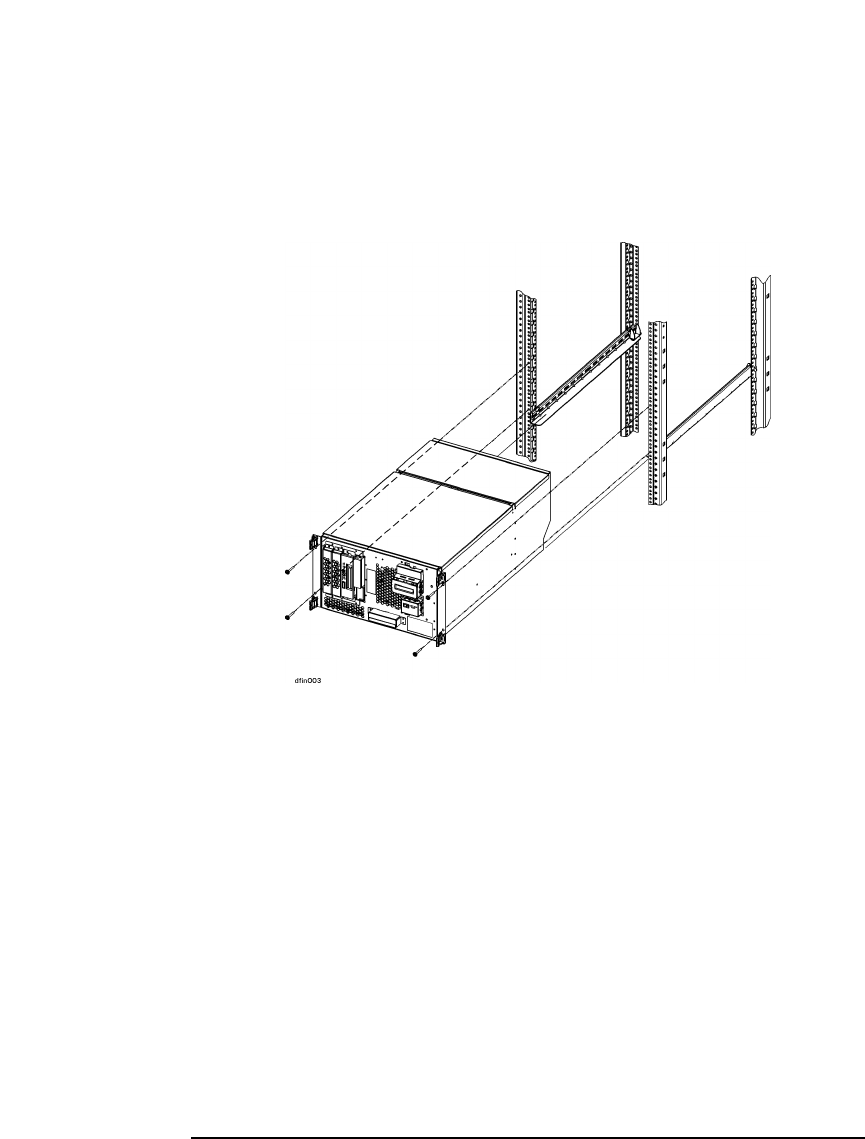

Using two people, lift the server up and onto the rails in the cabinet. Slide the server
toward the rear of the cabinet until the sheet metal extensions on the face of the
server rest flush against the columns of the cabinet. Secure the server to the cabinet
columns with four screws as shown:
