Operations 11

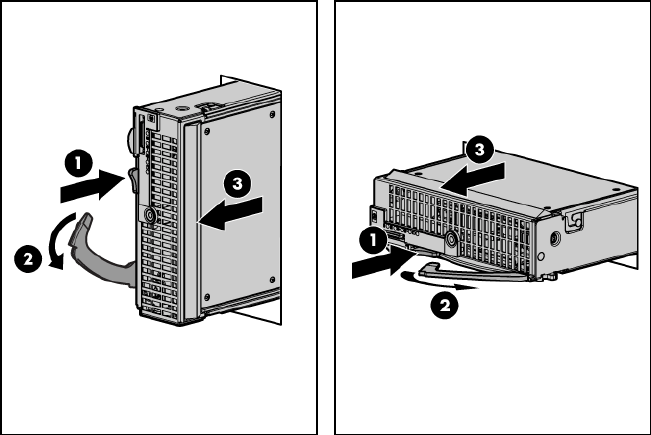

Remove the server blade
To remove the component:
1.
Identify the proper server blade.
2.
Power down the server blade (on page 10).
3.
Remove the server blade.
4.
Place the server blade on a flat, level work surface.
Remove the access panel
To remove the component:
1.
Power down the server blade (on page 10).
2.
Remove the server blade (on page 11).
3.
Press the access panel release button.
4.
Slide the access panel towards the rear of the server blade, and then lift to remove the panel.
Install the access panel
1.
Place the access panel on top of the server blade.
2.
Slide the access panel forward until it clicks into place.
