5. Connect the Switch to a Power Source
1. (Optional.) This product supports use of the HP J2962A Redundant
Power Supply (RPS), which can help ensure continuous switch operation
in the event of a power failure. If you have this HP RPS, connect the RPS
to the switch now and connect the RPS to an appropriate AC power
source.
Caution When installed, the RPS is used in place of the standard power cord, so make
sure you disconnect the standard power cord from the switch before you
connect the RPS. Using both the standard power cord and the RPS at the same
time could damage the switch’s components.
For information on how to install and connect the HP RPS, refer to the
documentation supplied with the RPS.
2. If you are not using an RPS, plug the included power cord into the switch's
power cord receptacle and into an AC power source as shown below.
3. Re-check the LEDs during self test. Initially, all LEDs are on. After the
four-second self test (or 15 second self test with Management Module),
only the Power and port A “100” LEDs (and optionally the RPS LED) are
on. See “LED Behavior” on page 7.

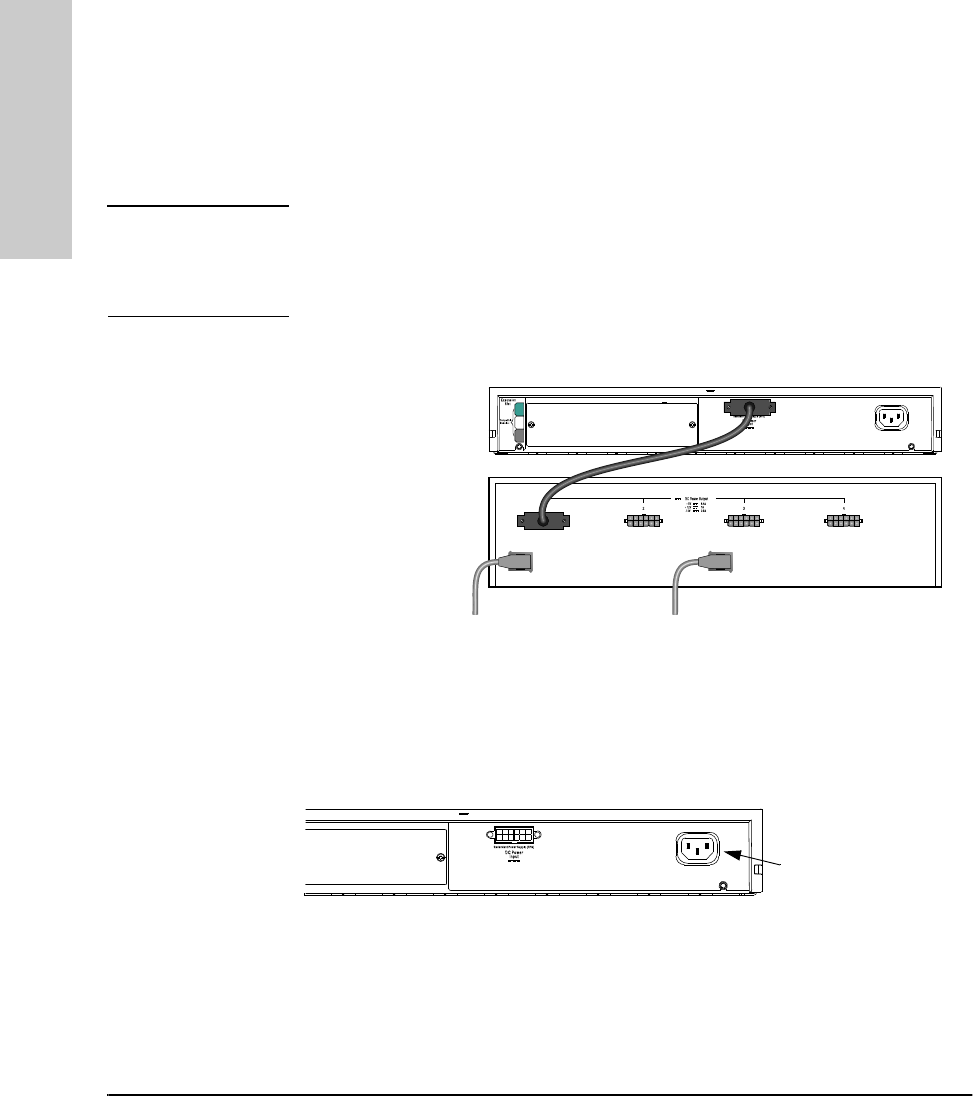

Back of RPS
Back of Switch
power receptacle
on the back of the switch
