Installation and Setup
Selecting a Location
This section describes how to set up and plan for installing the projector:
■ “To install on a table” on page 18
■ “To install on the ceiling” on page 18
■ “To install the cable shroud” on page 22
■ “To install for rear projection” on page 21

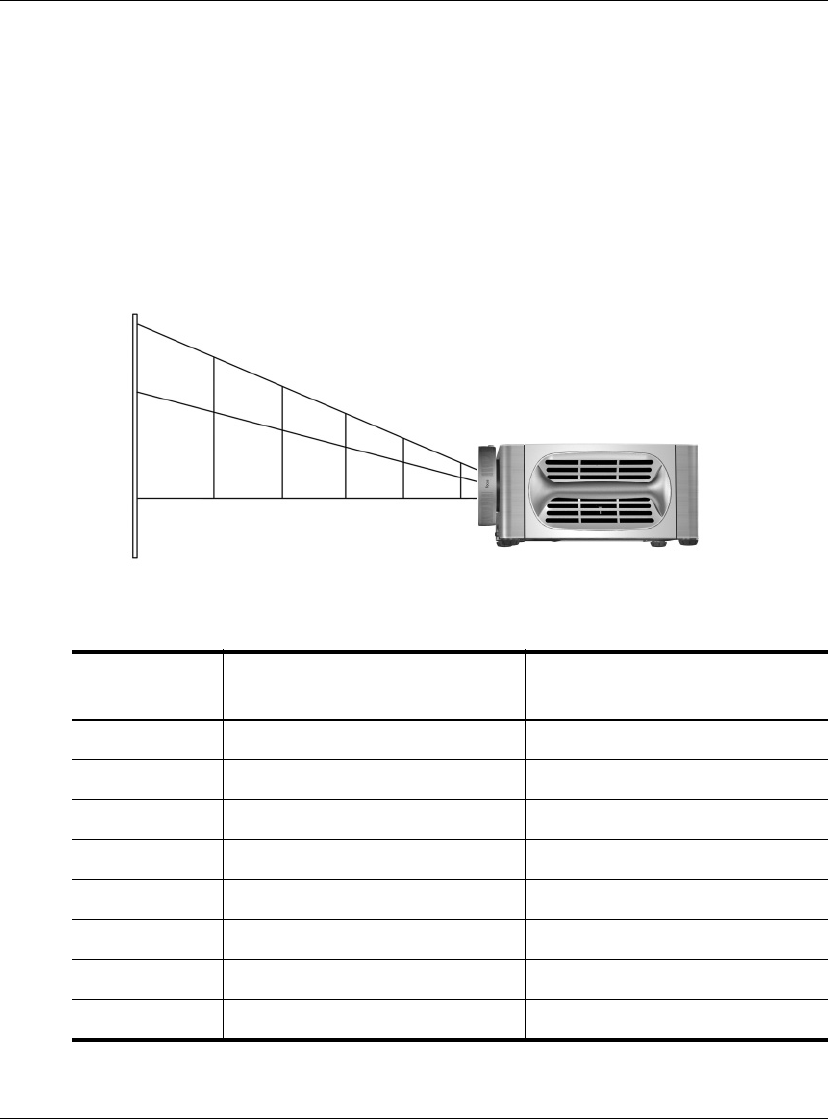

Setting up the projector with respect to image size
Distance from
screen
Diagonal size of projected
Width of projected image
1.5 m 5 ft 0.8–0.9 m 31–37 in. 0.6–0.8 m 25–30 in.
2 m 7 ft 1.1–1.3 m 41–50 in. 0.8–1.0 m 33–40 in.
4 m 13 ft 2.1–2.5 m 83–99 in. 1.7–2.0 m 66–80 in.
6 m 20 ft 3.2–3.8 m 124–149 in. 2.5–3.0 m 99–119 in.
8 m 26 ft 4.2–5.1 m 165–199 in. 3.4–4.0 m 132–159 in.
10 m 33 ft 5.3–6.3 m 207–249 in. 4.2–5.1 m 165–199 in.
12 m 39 ft 6.3–7.6 m 248–298 in. 5.0–6.1 m 199–239 in.
14 m 46 ft 7.4–8.8 m 289–348 in. 5.9–7.1 m 232–278 in.
