TOOL DISASSEMBLY

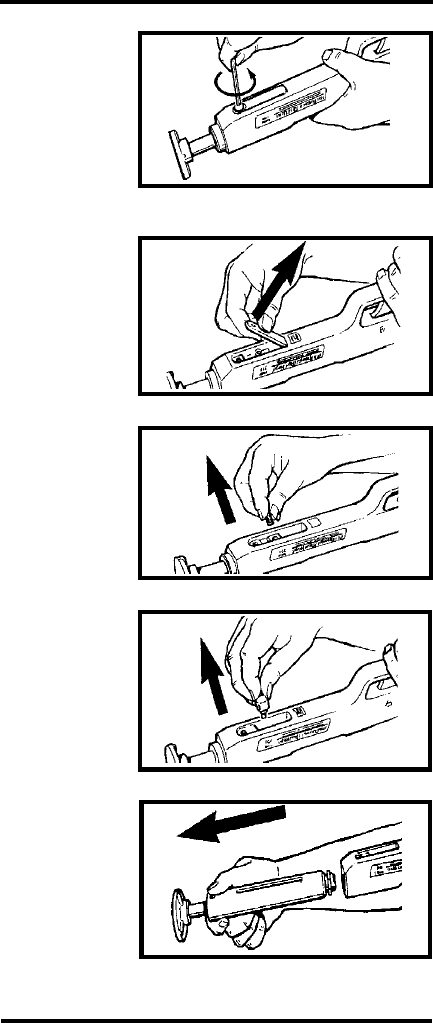

1. Remove the screw and lockwasher
from the stop pin cover using the
5/32” hex wrench provided with the
tool.
2. Remove the stop pin cover by lifting
it up and out of the tool housing.
3. Remove the stop pin spring.
4. Remove the stop pin.
5. Slide the barrel assembly out of the
tool housing. Note the alignment of
the slot in the barrel with the stop
opening in the tool housing.
REMOVE STOP PIN COVER,
SCREW & LOCKWASHER
REMOVE STOP PIN COVER
REMOVE THE STOP PIN
SLIDE THE BARREL OUT OF THE
TOOL HOUSING
REMOVE STOP PIN SPRING
