LR
L
R
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
P.CONT
ANT.CONT
MUTE
REMOTE CONT.
REMOTE INPUT
STEERING WHEEL
iPod
AUDIO IN
iPod
VIDEO IN
PRK SW
iPod
AUDIO OUT
iPod
VIDEO OUT
iPod
VIDEO OUT
iPod
AUDIO OUT
68
|
KIV-700

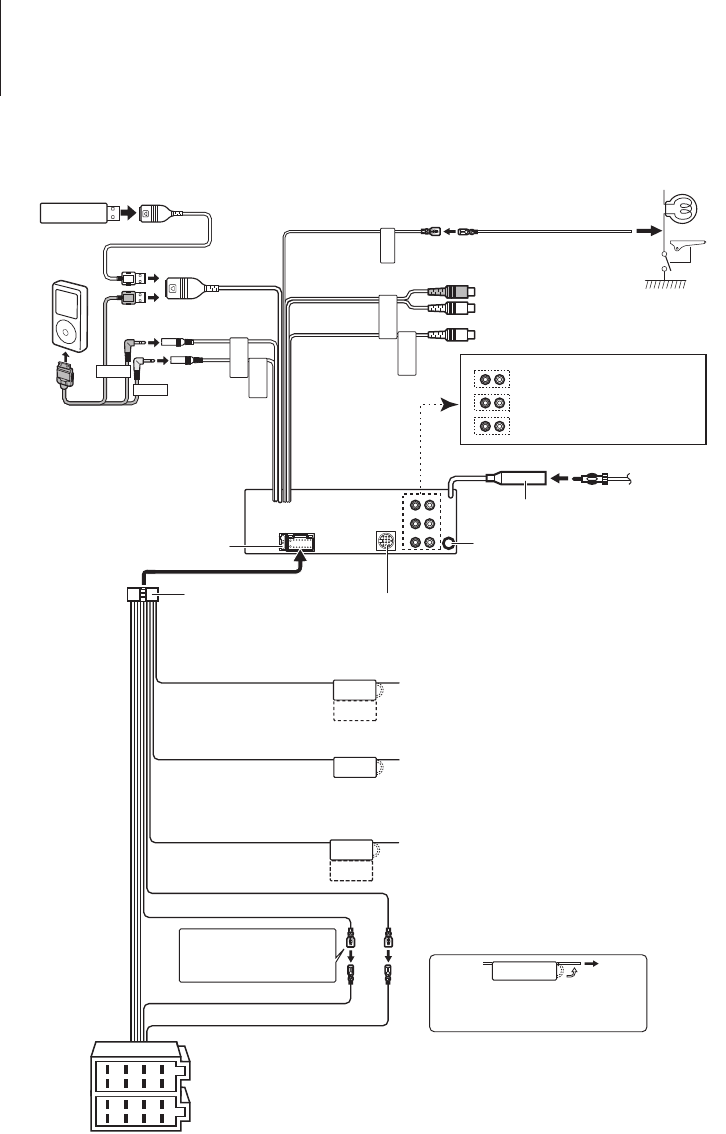

Connecting Wires to Terminals
Battery wire (Yellow)
Ignition wire (Red)
FM/AM antenna input (JASO)
Antenna Cord
Wiring harness
(Accessory 1)
If no connections are made, do not
let the wire come out from the tab.
Power control/Motor antenna
control wire (Blue/White)
Mute control wire (Brown)
Connect either to the power control terminal
when using the optional power amplifier, or to the
antenna control terminal in the vehicle.
A–7 Pin (Red)
A–4 Pin (Yellow)
Connector A
Connector B
⁄
See next page
To Kenwood disc changer/External optional accessory
⁄
To connect these leads, refer to the relevant instruction
manuals.
Fuse (10A)
Front output
Rear output
Sub Woofer output
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
⁄
To connect the Kenwood navigation system,
consult your navigation manual.
USB connector (1m)
⁄
Do not remove the cap when you do not use
the USB cable. The connector will cause the
unit to malfunction if it gets in touch with any
metallic part of the vehicle.
iPod cable
(Accessory 4)
AUX input (Stereo)
Use the mini-plug (3.5 mm ø) which
is stereo type and does not have any
resistance.
To use the steering wheel remote control feature,
you need to an exclusive remote adapter (not
supplied) matches your car is required.
Steering remote control wire
(Light Blue/Yellow)
iPod visual output (Yellow)
iPod audio output (Left: White, Right: Red)
For the sake of safety, be sure to connect
the parking sensor.
⁄
Connect to the vehicle’s parking
brake detection switch harness.
Parking sensor wire (Light Green)
Parking sensor wire Junction cable
(Light Green) (Accessory 3)
iPod
(commercially
available)
USB device
(commercially
available)
