Locations and connectors 5-27
5021-0XX

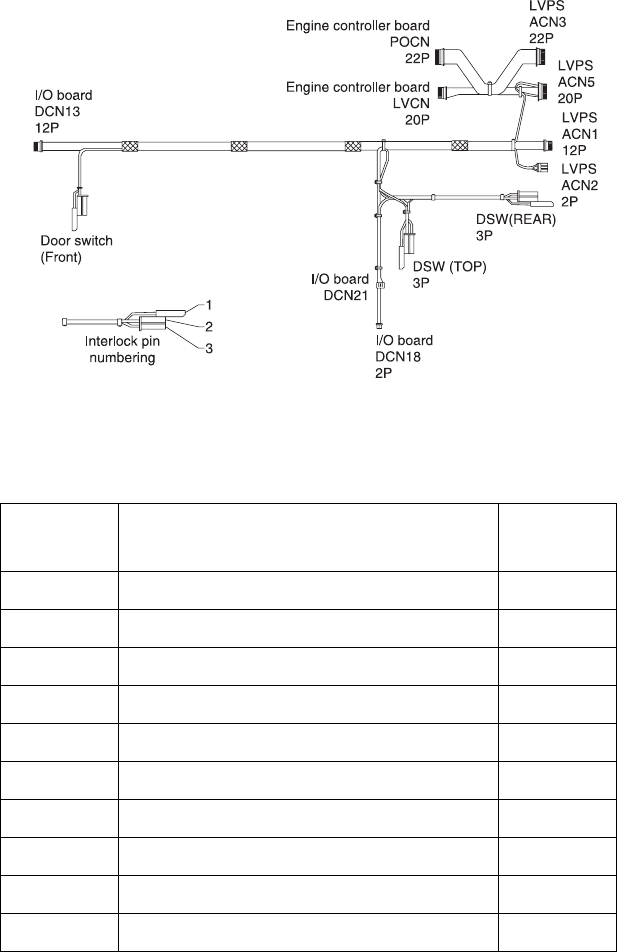

Cable 5 connector assignments
Cable 5 connector pin assignments
I/O board DCN13LVPS ACN1
DCN13
Pin No.
Signal name
ACN1
Pin No.
1+24-1D 2
2PGND 1
3+24-1D 4
4PGND 3
5+24-1D 6
6PGND 5
7+24-1D 8
8PGND 7
9 +5V-1 10
10 SGND 9
