Repair information 4-39
5056-XXX

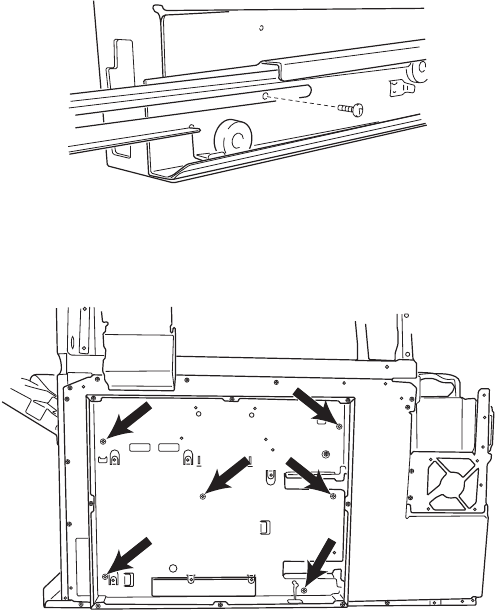

Left slide rail removal
1. Remove the upper cassette.
2. Remove the screw from both left and right slide rails.
RIP box removal
1. Remove the six screws from the RIP box.
2. Slightly lift and remove the RIP box.
