EXTERNAL EQUIPMENT SETUP
HDMI Connection

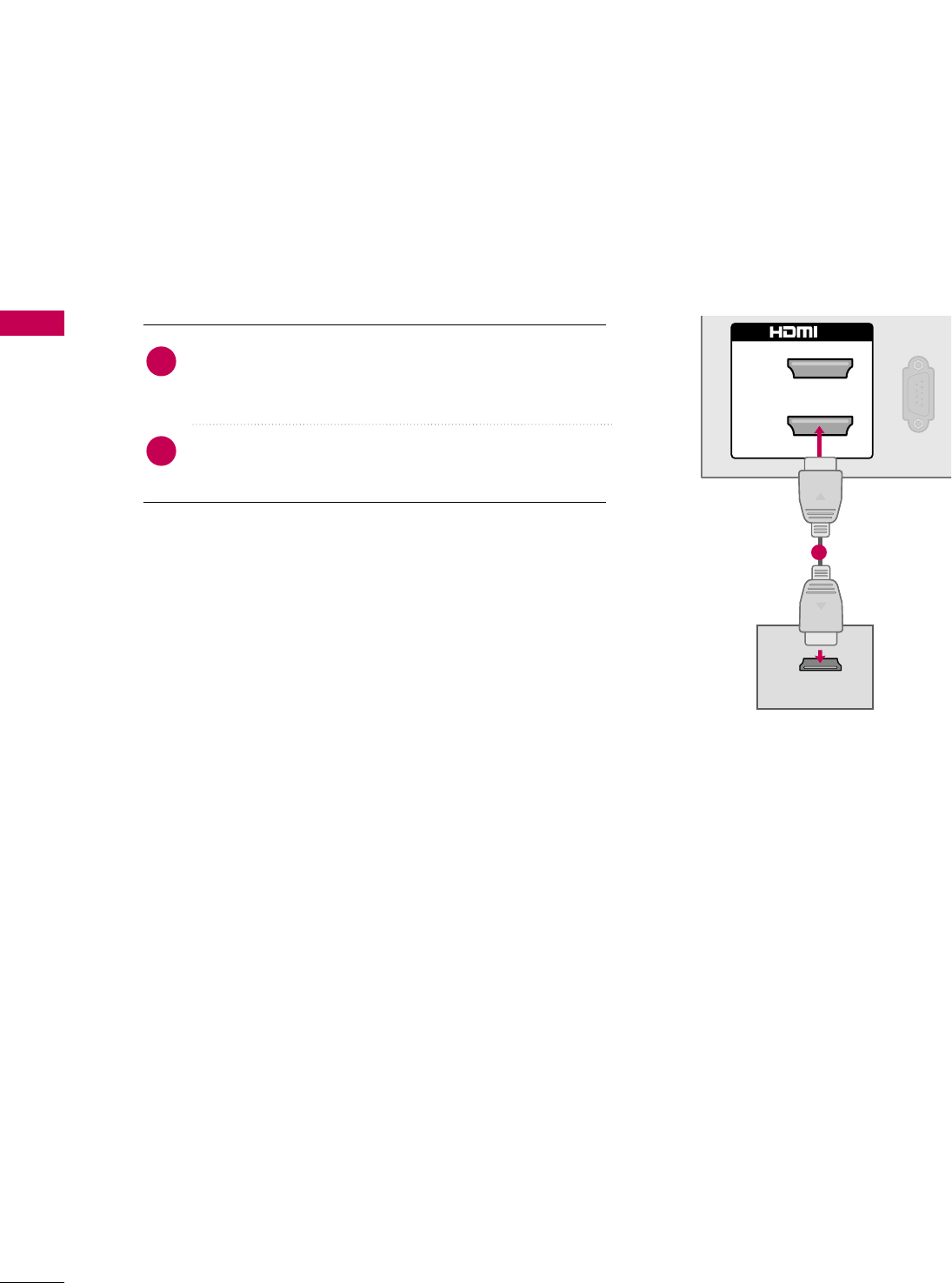

Connect the HDMI output of the DVD to the
HHDDMMII IINN 11
or
22
(For 42/50PQ10, 42/50PQ12, 50PS11),
HHDDMMII//DDVVII IINN 11
,
22
or
33
(For 60PS11) jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
Select the
HHDDMMII11
,
22
or
33
(For 60PS11) input source on
the TV using the
IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating instructions.
2
1
RS-232C IN
(SERVICE ONLY)
2
1
IN
HDMI-DVD OUTPUT
1
