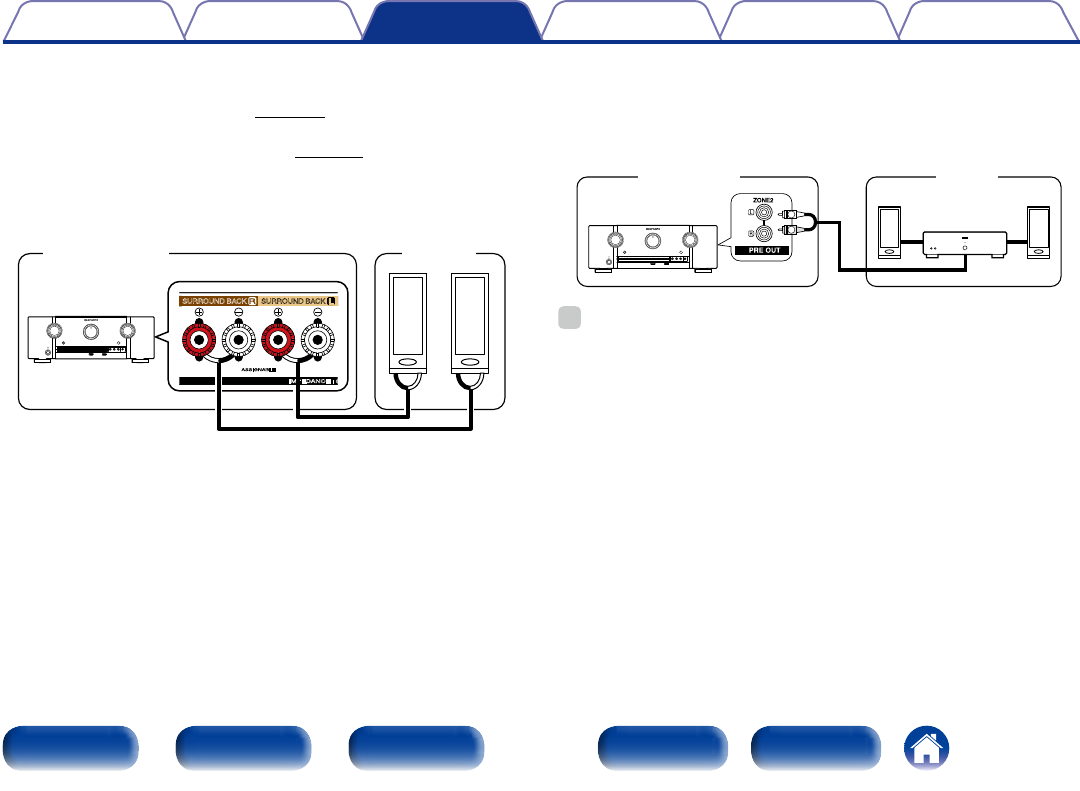

2 Connection 2 : Connection through the speaker
output terminals
•Set the “Assign Mode” (vpage 173) setting to “ZONE2”, and
outputs ZONE2 audio from SURROUND BACK speaker terminals.
•If you set the “Assign Mode” (vpage173) setting to “ZONE2”,
the main zone home theater system can play back up to 5.1-channels.
Even if you play back audio recorded in 6.1 or 7.1-channels, this unit
automatically downmixes the audio to 5.1-channels.
MAIN ZONE
SURROUND SURROUND
SURROUND BACK SURROUND BACK
FRONT HEIGHT/WIDE
SPEAKERS
IMPEDANCE : 68Ω
ASSIGNABLE
SURROUND SURROUND
SURROUND BACK SURROUND BACK
FRONT HEIGHT/WIDE
ZONE2
w q w q
(L) (R)
This unit
2 Connection 3 : Connection using an external
amplifier
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
ZONE2MAIN ZONE
AUX IN
R
L
This unit
Power
amplifiers
%
•We recommend using high quality pin-plug (RCA type) cables for audio connections
in order to prevent noise.
•If you select a same input source for MAIN ZONE and ZONE2, audio playback may
be restricted.
