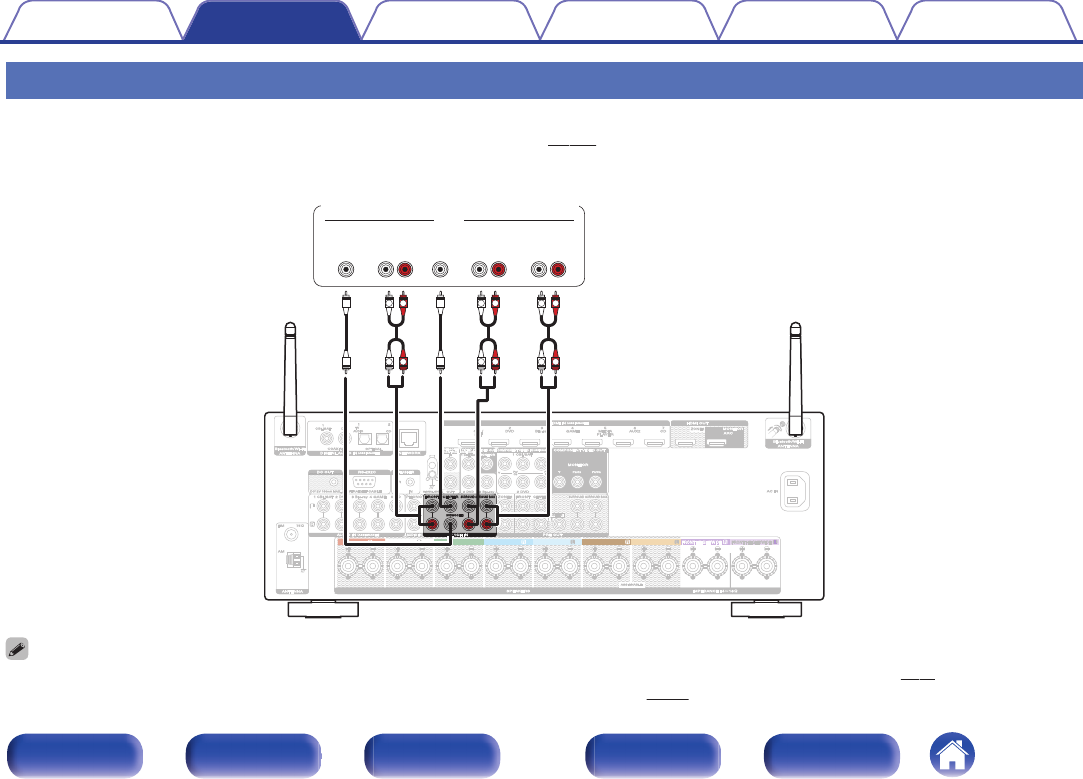

Connecting a device with a multi-channel output connector
You can connect this unit to an external device fitted with multi-channel sound audio output connectors to enjoy music and video.
To play analog signals input from 7.1CH IN connectors, set “Input Mode” (v
p. 178) to “7.1CH IN”.
.
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
L
L
R
R
L
L
R
R
L
L
R
R
SUB-
WOOFER
CENTER SURROUND
BACK
RL
SURROUND
RL
FRONT
RL
AUDIO
Devices with a multi-channel output connector
(Blu-ray Disc player, DVD player,
External decoder etc.)
0
The video signal can be connected in the same way as a Blu-ray Disc player/DVD player. “Connecting a DVD player or Blu-ray Disc player” (v p. 48)
0
When a device is connected to the SBL/SBR terminal of 7.1CH IN connectors, set “Assign Mode” (v p. 189) to “Main Only”.
