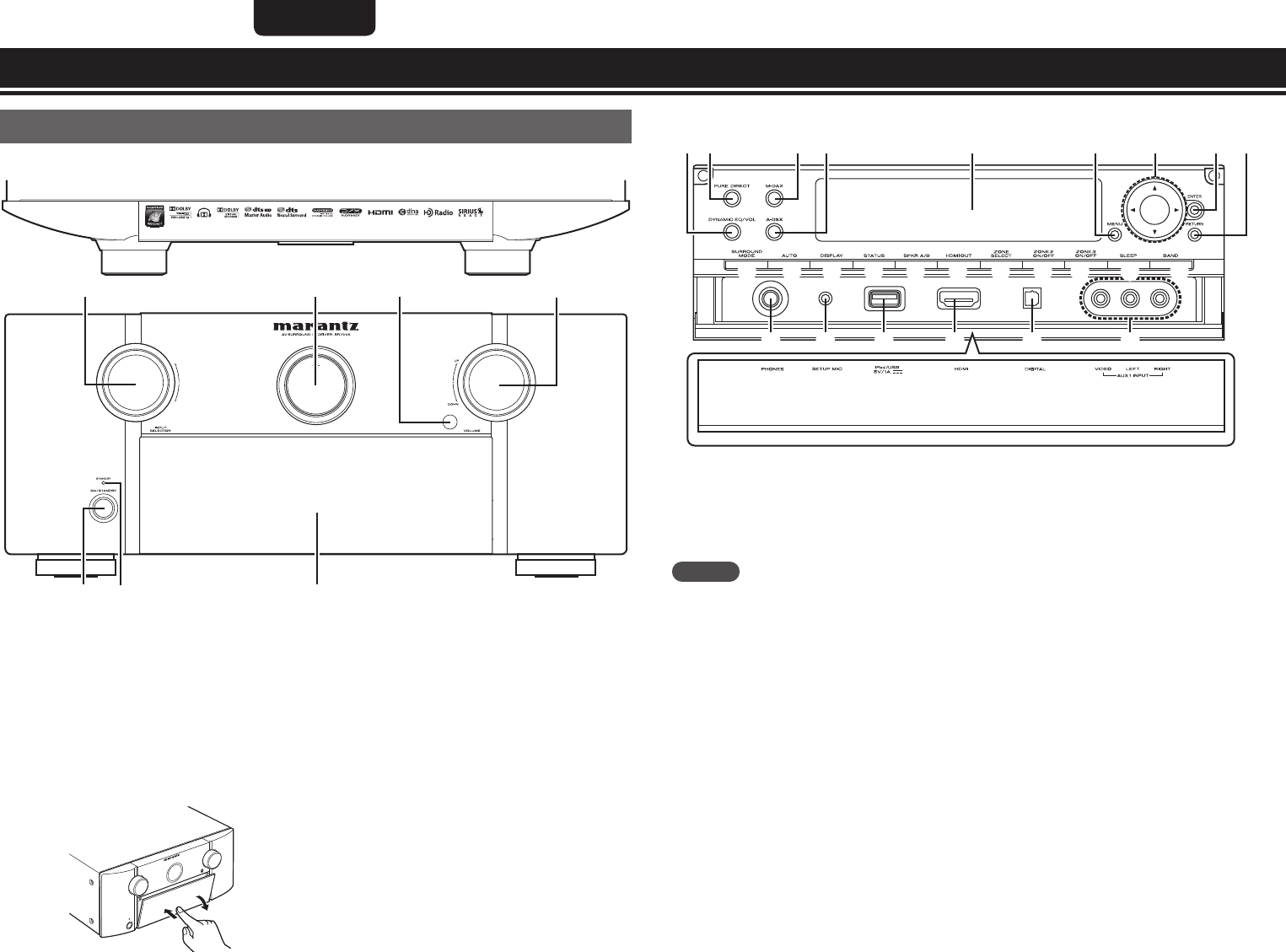

Panel delantero
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
q w e
ru
ty
q Botón de alimentación
(ON/STANDBY) ······································(7, 12)
Enciende y apaga la unidad (modo de espera).
w Indicador de alimentación ·························(12)
e Door
Al utilizar botones y/o terminales detrás de la
tapa, pulse la parte inferior de la tapa para abrirla.
Si no utiliza los botones y/o terminales detrás de
la tapa, ciérrela. Tenga cuidado de no lastimar
sus dedos al cerrar la tapa.
r Control VOLUME ········································(27)
t Sensor de mando a distancia ··················(104)
y Pantalla principal ······································(101)
u Control INPUT SELECTOR ·························(26)
Nombres y funciones de las piezas
GCon la tapa abiertaH
W3
i o Q0 Q1 Q2 Q3
E3W5 W6 W7 W8 W9 E0 E1W4 E2
Q5W0W1 Q9W2 Q4Q7 Q6Q8
i Conector de auriculares
Cuando enchufe unos auriculares a este
conector, se dejará de oír el audio a través de
los altavoces conectados o de los conectores
PRE OUT.
NOTA
Para evitar pérdida de audición, no suba el
volumen excesivamente cuando use los
auriculares.
o Conector SETUP MIC ·····························(9, 54)
Q0 Puerto iPod/USB ········································(20)
Q1 Conector HDMI ···········································(16)
Q2 Conector DIGITAL ·······································(19)
Q3 Conectores AUX1 INPUT ···························(19)
Q4 Botón RETURN ··································· (66 – 68)
Q5 Botón ENTER ······································ (66 – 68)
Q6 Botones de cursor (uio p)·············(66 – 68)
Q7 Botón MENU ···············································(66)
Q8 Pantalla secundaria ··································(101)
Q9 Botón Audyssey DSX™ (A-DSX) ··············(77)
W0 Botón / indicador M-DAX ··························(78)
W1 Botón / indicador PURE DIRECT ···············(48)
W2 Botón Dynamic EQ
®
/Dynamic Volume
®
(DYNAMIC EQ/VOL) ·····························(76, 77)
W3 Botón SURROUND MODE ·························(46)
W4 Botón AUTO ········································(62, 117)
W5 Botón DISPLAY ·····································(62, 88)
W6 Botón STATUS ···········································(90)
W7 Botón de cambio de altavoz A/B
(SPKR A/B) ··················································(27)
W8 Botón HDMI OUT ········································(16)
W9 Botón ZONE SELECT ··································(64)
E0 Botón ZONE2 ON/OFF ·······························(64)
E1 Botón ZONE3 ON/OFF ·······························(64)
E2 Botón SLEEP ···············································(58)
E3 Botón BAND ················································(33)
