DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should be fixed to the back
panel of IMC when you take it out of the box. If you need to reattach the
DIN-Rail attachment plate to IMC, make sure the stiff metal spring is
situated towards the top, as shown in the figures below
.

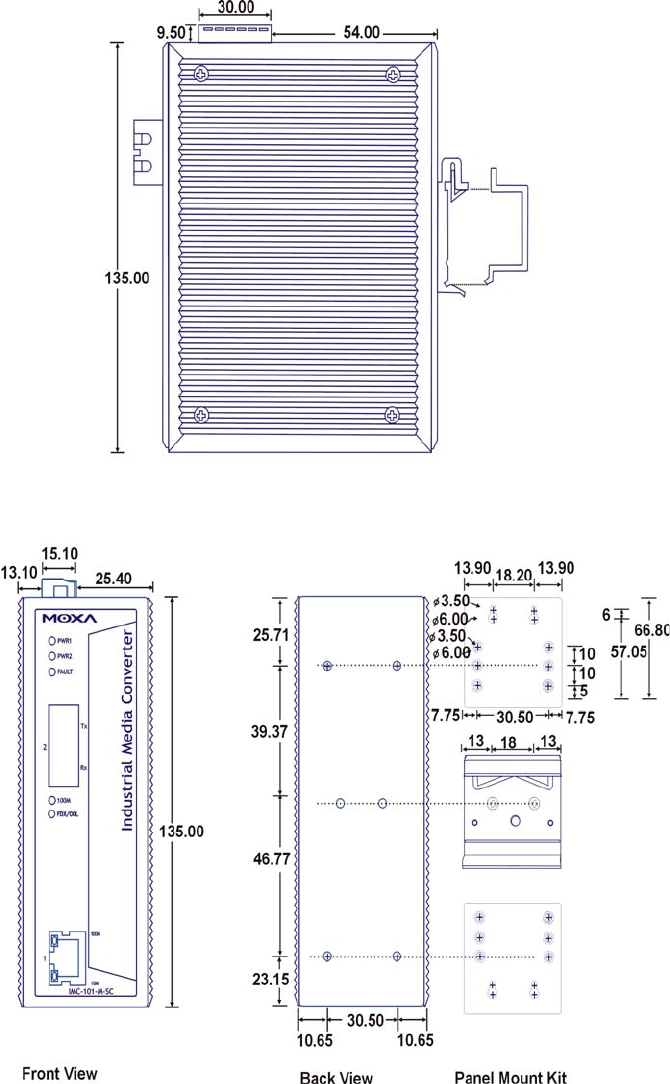

Mounting Dimensions
(Unit = mm)
