6. Start Web Management

The following shows how to start up the Web Management of the WGSW /

SGSW Managed Switch. Note the Managed Switch is congured through an

Ethernetconnection,pleasemakesurethemanagerPCmustbesetonthesame

IP subnet address.

For example, the default IP address of the WGSW / SGSW Managed Switch is

192.168.0.100, then the manager PC should be set at 192.168.0.x (where x

is a number between 1 and 254, except 100), and the default subnet mask is

255.255.255.0.

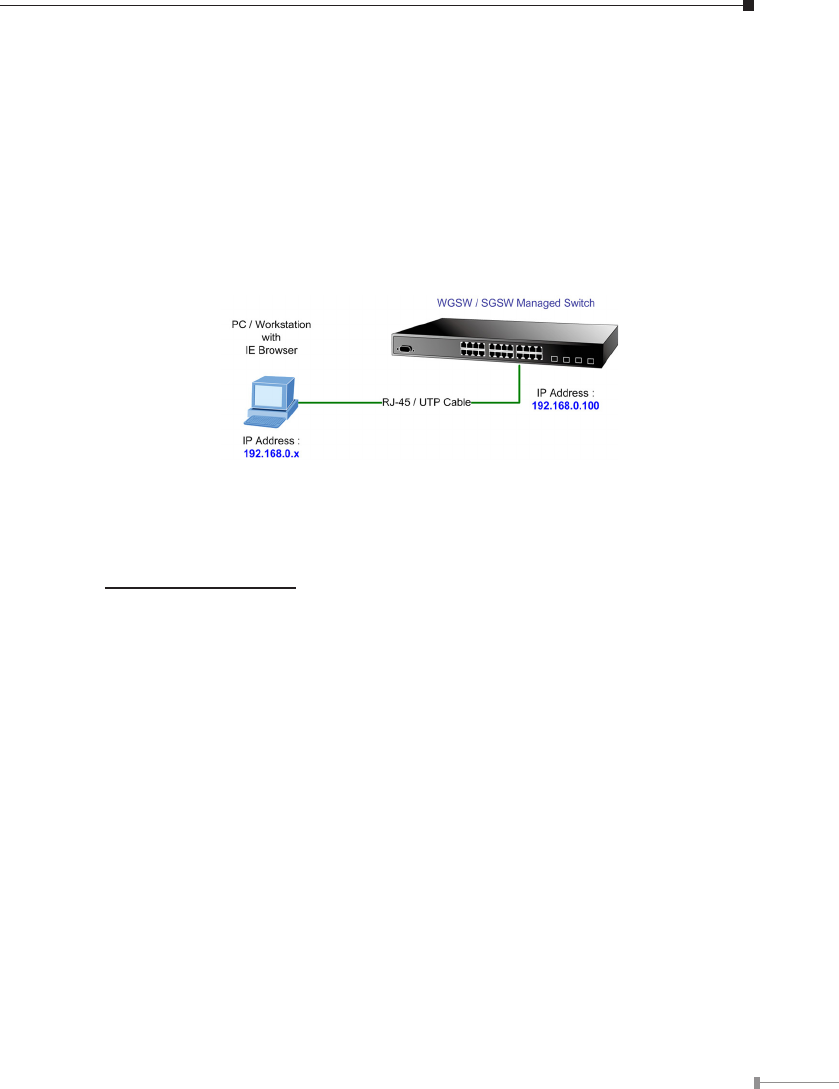

Figure 6-1 IP Management diagram

1.Use Internet Explorer 6.0 or above Web browser, enter IP address

http://192.168.0.100 (the factory-default IP address or that you have just

changedinconsole)toaccesstheWebinterface.
