Ethernet Type Parameters
The Ethernet Type parameters can be configured when Frame Type "Ethernet Type" is selected.
Object Description
• EtherType Filter
Specify the Ethernet type filter for this ACE.
Any: No EtherType filter is specified (EtherType filter status is "don't-care").
Specific: If you want to filter a specific EtherType filter with this ACE, you can
enter a specific EtherType value. A field for entering a EtherType value appears.
• Ethernet Type Value
When "Specific" is selected for the EtherType filter, you can enter a specific
EtherType value. The allowed range is 0x600 to 0xFFFF. A frame that hits this
ACE matches this EtherType value.
4.11.3 ACL Configuration wizard
This handy wizard helps you set up an ACL quickly.
The ACL Configuration wizard screen in Figure 4-11-2 appears.

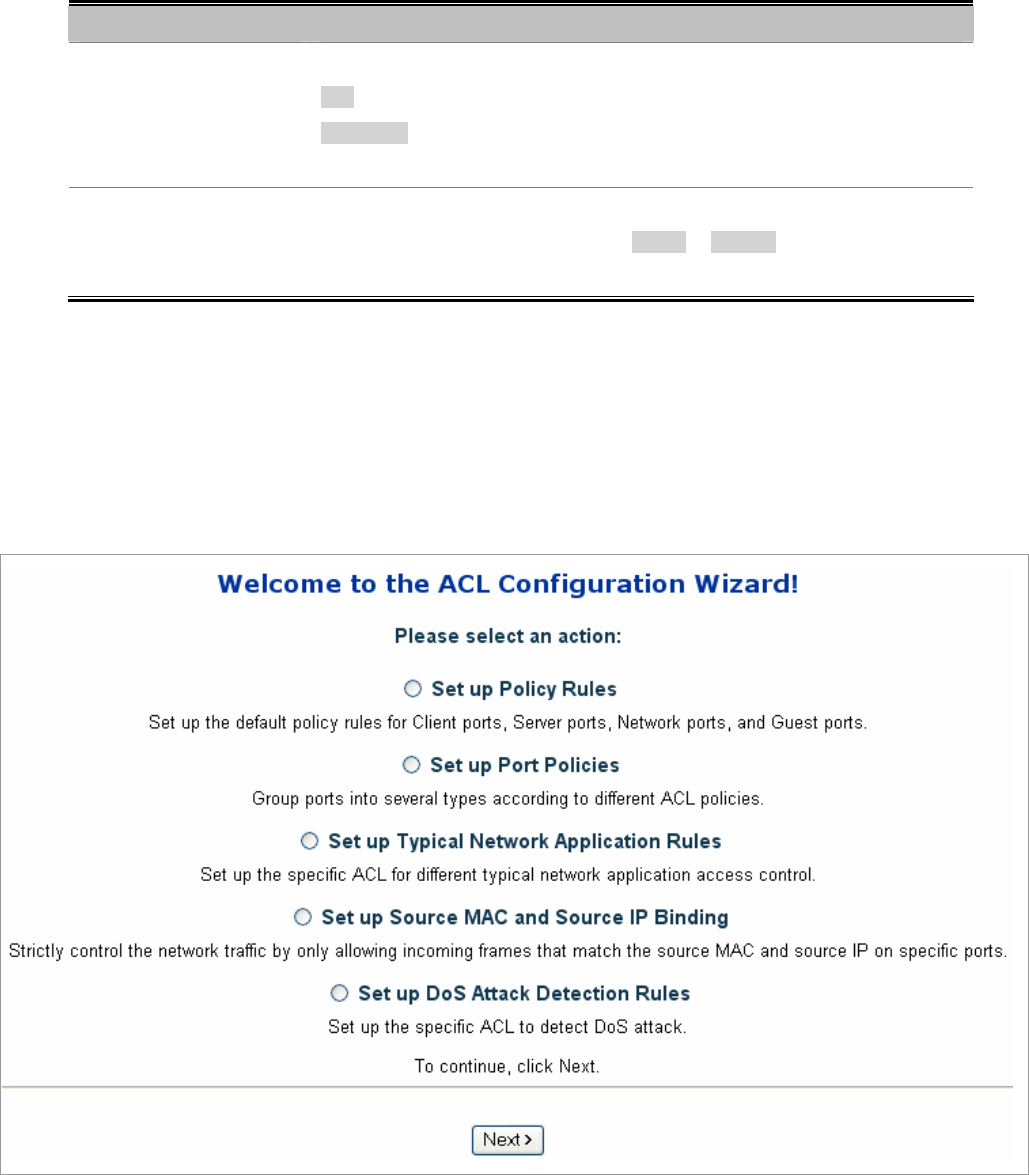

Figure 4-11-2 welcome to the ACL Configuration wizard page screenshot
