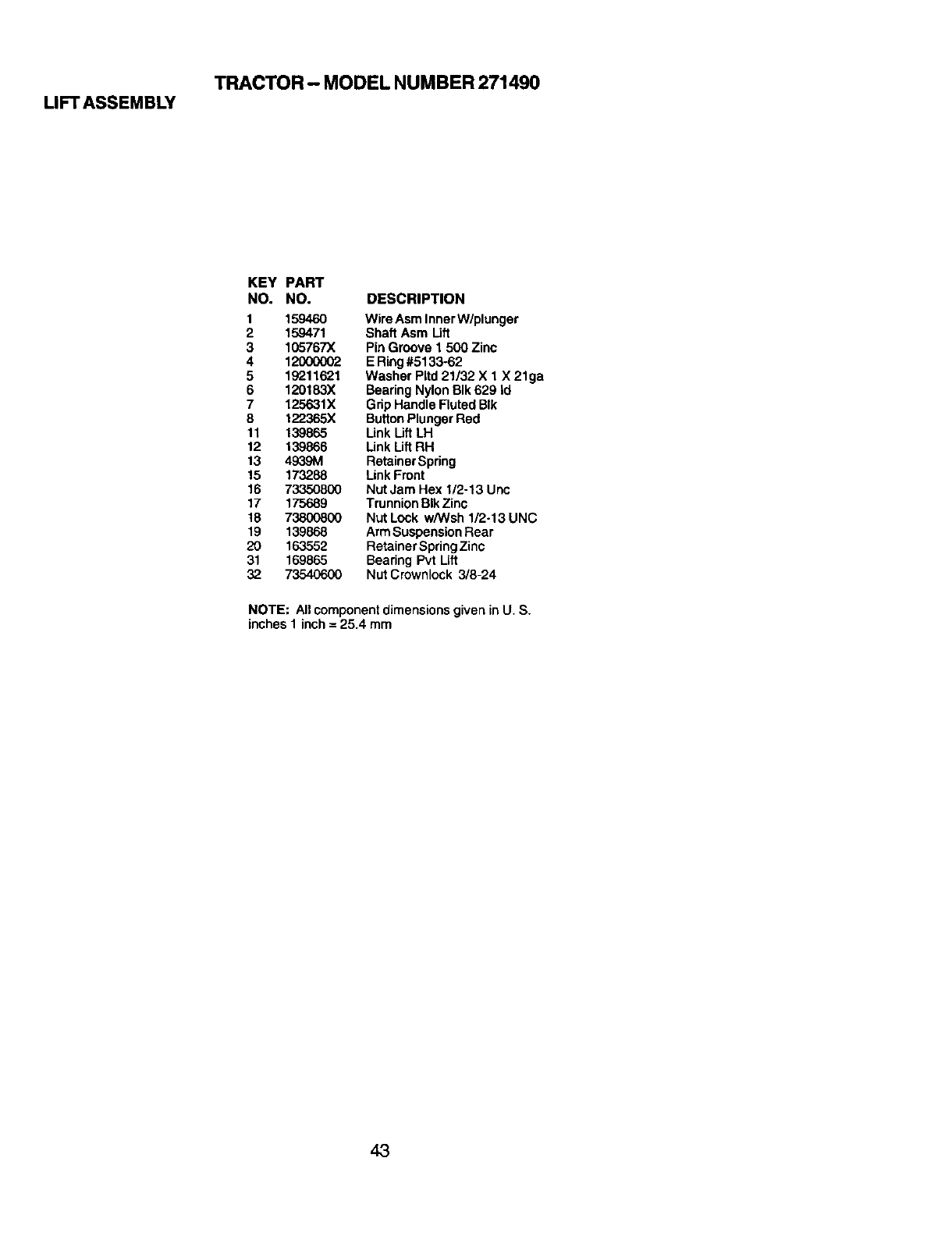

TRACTOR- MODEL NUMBER 271490
LIFTASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 159460 WireAsm Inner W/plunger
2 159471 Shaft Asm Uft
3 105767X PinGroove 1 500 Zinc
4 12000002 E Ring#5133-62
5 19211621 Washer PItd21/32 X 1X 21ga
6 120183X Bearing Nylon BIk629 Id
7 125631X Gdp Handle Fluted BIk
8 122365X ButtonPlungerRed
11 139865 Link Uft LH
12 139866 LinkLift RH
13 4939M RetainerSpring
15 173288 Unk Front
16 73350800 Nut Jam Hex 1/2-13 Unc
17 175689 TrunnionBIkZinc
18 73800800 Nut Lock w,'Wsh 1/2-13 UNC
19 139868 ArmSuspensionRear
20 163552 RetainerSpringZinc
31 169865 Bearing Pvt Lift
32 73540600 Nut Crownlock 3/8-24
NOTE: All componentdimensions given in U. S.
inches 1 inch= 25.4 mm
43
