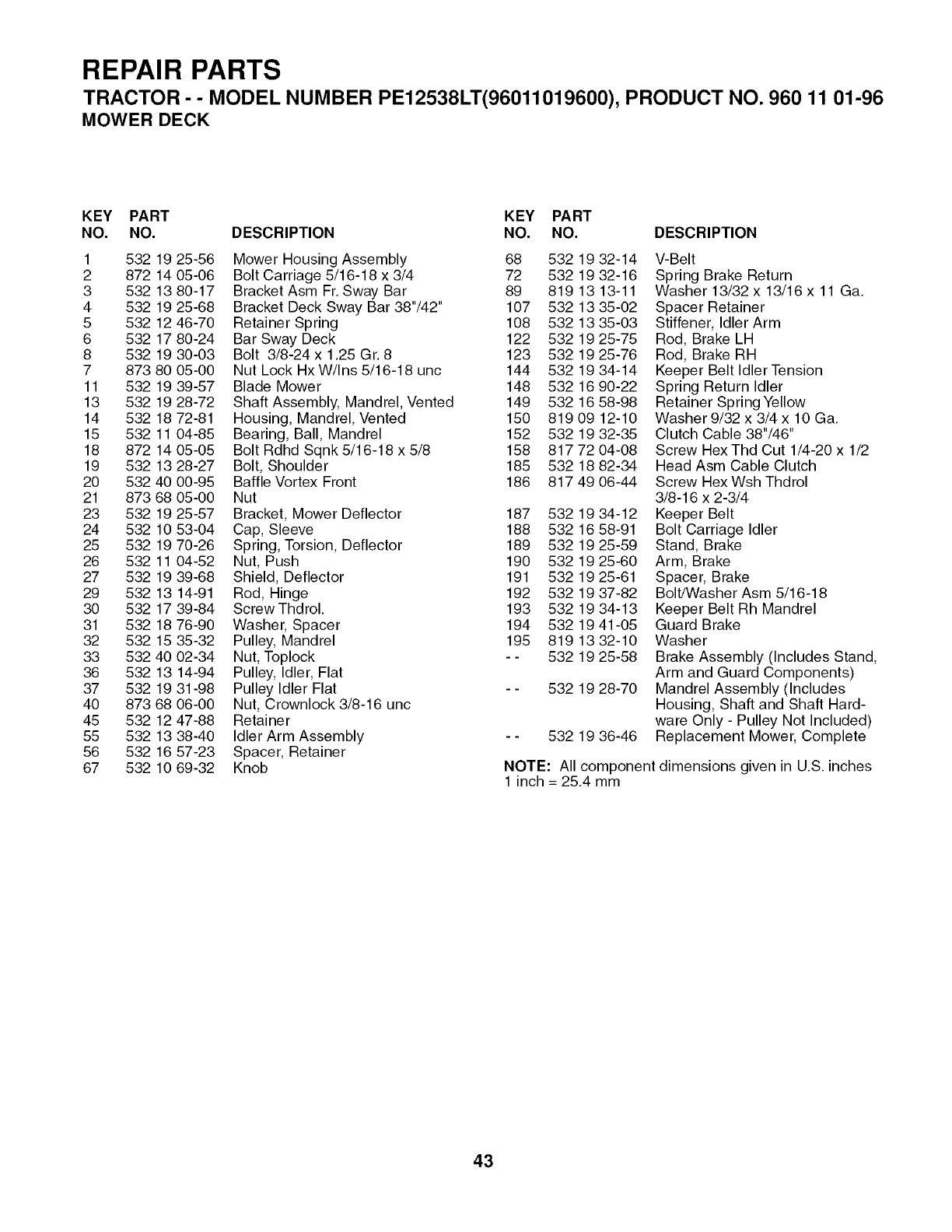

REPAIR PARTS
TRACTOR - - MODEL NUMBER PE12538LT(96011019600), PRODUCT NO. 960 11 01-96
MOWER DECK
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 532 19 25-56 Mower Housing Assembly 68 532 19 32-14
2 872 14 05-06 Bolt Carriage 5/16-18 x 3/4 72 532 19 32-16
3 532 13 80-17 Bracket Asm Fr, Sway Bar 89 819 13 13-11
4 532 19 25-68 Bracket Deck Sway Bar 38"/42" 107 532 13 35-02
5 532 12 46-70 Retainer Spring 108 532 13 35-03
6 532 17 80-24 Bar Sway Deck 122 532 19 25-75
8 5321930-03 Bolt 3/8-24x1.25Gr. 8 123 5321925-76
7 873 80 05-00 Nut Lock Hx W/Ins 5/16-18 unc 144 532 19 34-14
11 532 19 39-57 Blade Mower 148 532 16 90-22
13 532 19 28-72 Shaft Assembly, Mandrel, Vented 149 532 16 58-98
14 532 18 72-81 Housing, Mandrel, Vented 150 819 09 12-10
15 532 11 04-85 Bearing, Ball, Mandrel 152 532 19 32-35
18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 x 5/8 158 817 72 04-08
19 532 13 28-27 Bolt, Shoulder 185 532 18 82-34
20 532 40 00-95 Baffle Vortex Front 186 817 49 06-44
21 873 68 05-00 Nut
23 532 19 25-57 Bracket, Mower Deflector 187 532 19 34-12
24 532 10 53-04 Cap, Sleeve 188 532 16 58-91
25 532 19 70-26 Spring, Torsion, Deflector 189 532 19 25-59
26 532 11 04-52 Nut, Push 190 532 19 25-60
27 532 19 39-68 Shield, Deflector 191 532 19 25-61
29 532 13 14-91 Rod, Hinge 192 532 19 37-82
30 532 17 39-84 ScrewThdrol, 193 532 19 34-13
31 532 18 76-90 Washer, Spacer 194 532 19 41-05
32 532 15 35-32 Pulley, Mandrel 195 819 13 32-10
33 532 40 02-34 Nut, Toplock - - 532 19 25-58
36 532 13 14-94 Pulley, Idler, Flat
37 532 19 31-98 Pulley Idler Flat - - 532 19 28-70
40 873 68 06-00 Nut, Crownlock 3/8-16 unc
45 532 12 47-88 Retainer
55 532 13 38-40 Idler Arm Assembly - - 532 19 36-46
56 532 16 57-23 Spacer, Retainer
67 532 10 69-32 Knob
V-Belt
Spring Brake Return
Washer 13/32 x 13/16 x 11 Ga.
Spacer Retainer
Stiffener, Idler Arm
Rod, Brake LH
Rod, Brake RH
Keeper Belt Idler Tension
Spring Return Idler
Retainer Spring Yellow
Washer 9/32 x 3/4 x 10 Ga.
Clutch Cable 38"/46"
Screw Hex Thd Cut 1/4-20 x 1/2
Head Asm Cable Clutch
Screw Hex Wsh Thdrol
3/8-16 x 2-3/4
Keeper Belt
Bolt Carriage Idler
Stand, Brake
Arm, Brake
Spacer, Brake
Bolt/Washer Asm 5/16-18
Keeper Belt Rh Mandrel
Guard Brake
Washer
Brake Assembly (Includes Stand,
Arm and Guard Components)
Mandrel Assembly (Includes
Housing, Shaft and Shaft Hard-
ware Only - Pulley Not Included)
Replacement Mower, Complete
NOTE: All component dimensions given in U,S. inches
1 inch = 25,4 mm
