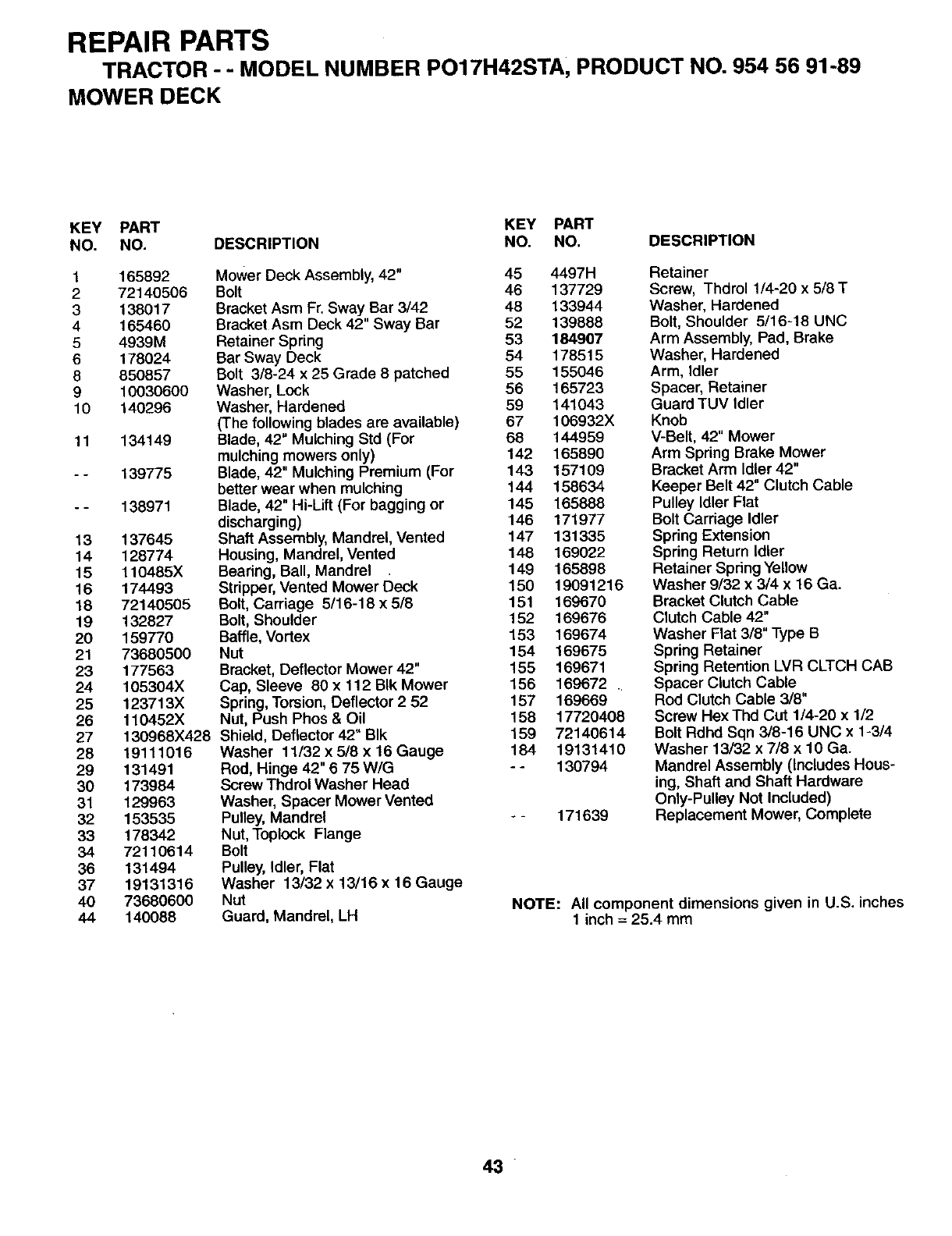

REPAIR PARTS
TRACTOR - - MODEL NUMBER PO17H42STA, PRODUCT NO. 954 56 91-89
MOWER DECK
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 165892
2 72140506
3 138017
4 165460
5 4939M
6 178024
8 850857
9 10030600
10 140296
11 134149
139775
138971
13 137645
14 128774
15 110485X
16 174493
18 72140505
19 132827
20 159770
21 73680500
23 177563
24 105304X
25 123713X
26 110452X
27 130968X428
28 19111016
29 131491
30 173984
31 129963
32 153535
33 178342
34 72110614
36 131494
37 19131316
40 73680600
44 140088
Mower Deck Assembly, 42" 45 4497H
Bolt 46 137729
Bracket Asm Ft. Sway Bar 3/42 48 133944
Bracket Asm Deck 42" Sway Bar 52 139888
Retainer Spring 53 184907
Bar Sway Deck 54 178515
Bolt 3/8-24 x 25 Grade 8 patched 55 155046
Washer, Lock 56 165723
Washer, Hardened 59 141043
(The following blades are available) 67 106932X
Blade, 42" Mulching Std (For 68 144959
mulching mowers only) 142 165890
Blade, 42" Mulching Premium (For 143 157109
better wear when mulching 144 158634
Blade, 42" Hi-Lift (For bagging or 145 165888
discharging) 146 171977
Shaft Assembly, Mandrel, Vented 147 131335
Housing, Mandrel, Vented 148 169022
Bearing, Ball, Mandrel 149 165898
Stripper, Vented Mower Deck 150 19091216
Bolt, Carriage 5/16-18 x 5/8 151 169670
Bolt, Shoulder 152 169676
Baffle, Vortex 153 169674
Nut 154 169675
Bracket, Deflector Mower 42" 155 169671
Cap, Sleeve 80 x 112 BIk Mower 156 169672 .
Spring, Torsion, Deflector 2 52 157 169669
Nut, Push Phos & Oil 158 17720408
Shield, Deflector 42" BIk 159 72140614
Washer 11/32 x 5/8 x 16 Gauge 184 19131410
Rod, Hinge 42" 6 75 W/G - - 130794
Screw Thdrol Washer Head
Washer, Spacer Mower Vented
Pulley, Mandrel - - 171639
Nut, Toplock Flange
Bolt
Pulley, Idler, Flat
Washer 13/32 x 13/16 x 16 Gauge
Nut
Guard, Mandrel, LH
Retainer
Screw, Thdrel 1/4-20 x 5/8T
Washer, Hardened
Bolt, Shoulder 5/16-18 UNC
Arm Assembly, Pad, Brake
Washer, Hardened
Arm, Idler
Spacer, Retainer
Guard TUV Idler
Knob
V-Belt, 42" Mower
Arm Spring Brake Mower
Bracket Arm Idler 42"
Keeper Belt 42" Clutch Cable
Pulley Idler Flat
Bolt Carriage Idler
Spring Extension
Spring Return Idler
Retainer Spring Yellow
Washer 9/32 x 3/4 x 16 Ga.
Bracket Clutch Cable
Clutch Cable 42"
Washer Flat 3/8" Type B
Spring Retainer
Spring Retention LVR CLTCH CAB
Spacer Clutch Cable
Rod Clutch Cable 3/8"
Screw Hex Thd Cut 1/4-20 x 1/2
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4
Washer 13/32 x 7/8 x 10 Ga.
Mandrel Assembly (Includes Hous-
ing, Shaft and Shaft Hardware
Only-Pulley Not Included)
Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
