TRACTOR - MODEL NO. PP17538HP (96041007301), PRODUCT NO. 960 41 00-73

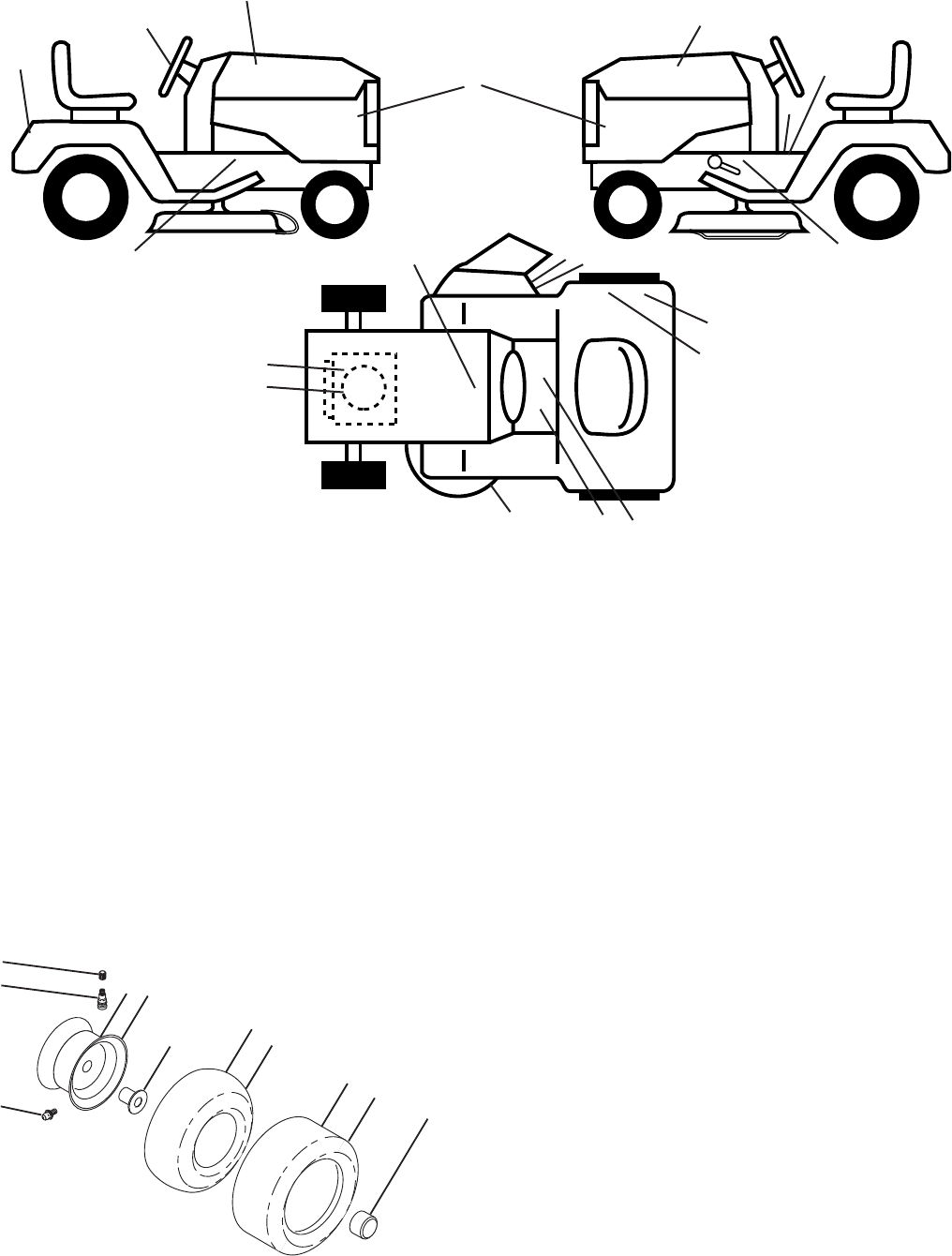

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
7
1
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 12 51-21 Rim Assembly, Front
4 532 05 99-04 Tube, Front
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease
7 532 12 49-59 Bearing, Flange
8 532 19 32-68 Cap, Axle (Front Wheel Only)
9 532 13 84-68 Tire, Rear
10 532 12 49-26 Tube, Rear
11 532 12 51-22 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
5
2
1 532 18 61-63 Decal, Hood RH
2 532 18 61-64 Decal, Hood LH
3 532 42 05-09 Decal, Side Panel
4 532 17 27-40 Decal, Fender
5 532 40 88-19 Decal, Eng H.P.
6 532 40 03-89 Decal, Warning Sym
7 532 15 97-36 Decal, Chassis Hot Muffler
8 532 18 21-66 Decal, Cutfinger
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 19 63-57 Decal, Deflect Wrn Cutfinger
11 532 15 97-37 Decal, Brake/Clutch Symbol
12 532 12 44-33 Decal, DBA
6
13 532 17 27-43 Decal, Steering Wheel
14 532 14 08-37 Decal, Saddle Brake Park
15 532 19 68-41 Decal, Engine Warning
16 532 17 83-02 Decal, Oper. Cruise, Symbol
17 532 19 43-02 Decal, V Belt Schem
18 532 16 88-69 Decal, Tick Mark
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 40 95-07 Pad, Footrest Control
- - 532 40 95-05 Pad, Footrest, LH
- - 532 42 04-08 Manual, Operator's (English)
