24 www.pridemobility.com Jet 3 Ultra
Armrest Width Adjustment
You can change each armrestâs width independently of the
other.
NOTE: Changing the armrest width may increase
the overall width of your power chair.
To change the armrest width:
1. Locate the two armrest knobs on each side of the arm
rest receiver bracket. See figure 15.
2. Loosen the knobs.
3. Slide the armrests in or out to the desired width.
4. Tighten the knobs.
Armrest Height Adjustment
To change the armrest height:
1. Loosen the two setscrews located on the armrest re-
ceiver. See figure 15.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to
the floor. See figure 15.
2. Loosen the jam nut.
3. Turn the adjusting screw clockwise to raise the front
of the armrest, or turn the adjusting screw counterclock-
wise to lower the front of the armrest.
4. Tighten the jam nut to lock the adjusting screw into plac
V. COMFORT ADJUSTMENTS
Figure 16. Underside of Armrest
SETSCREW
Controller Position
You can position the controller for either left-hand or right-hand
use.
WARNING! Do not place the controller
cable so that it can be pinched in the
seat frame or the power base frame.
To change the controller position:
1. Turn off the power to the controller.
2. Loosen the rear shroud fasteners and remove the rear
shroud. See figure 6.
3. Unplug the controller connectors from the power pod.
See figure 6.
4. Cut the wire tie(s) that attaches the controller cable to
the armrest.
5. Flip up the armrest and loosen the setscrew. See figure 16.
6. Slide the controller out of the armrest.

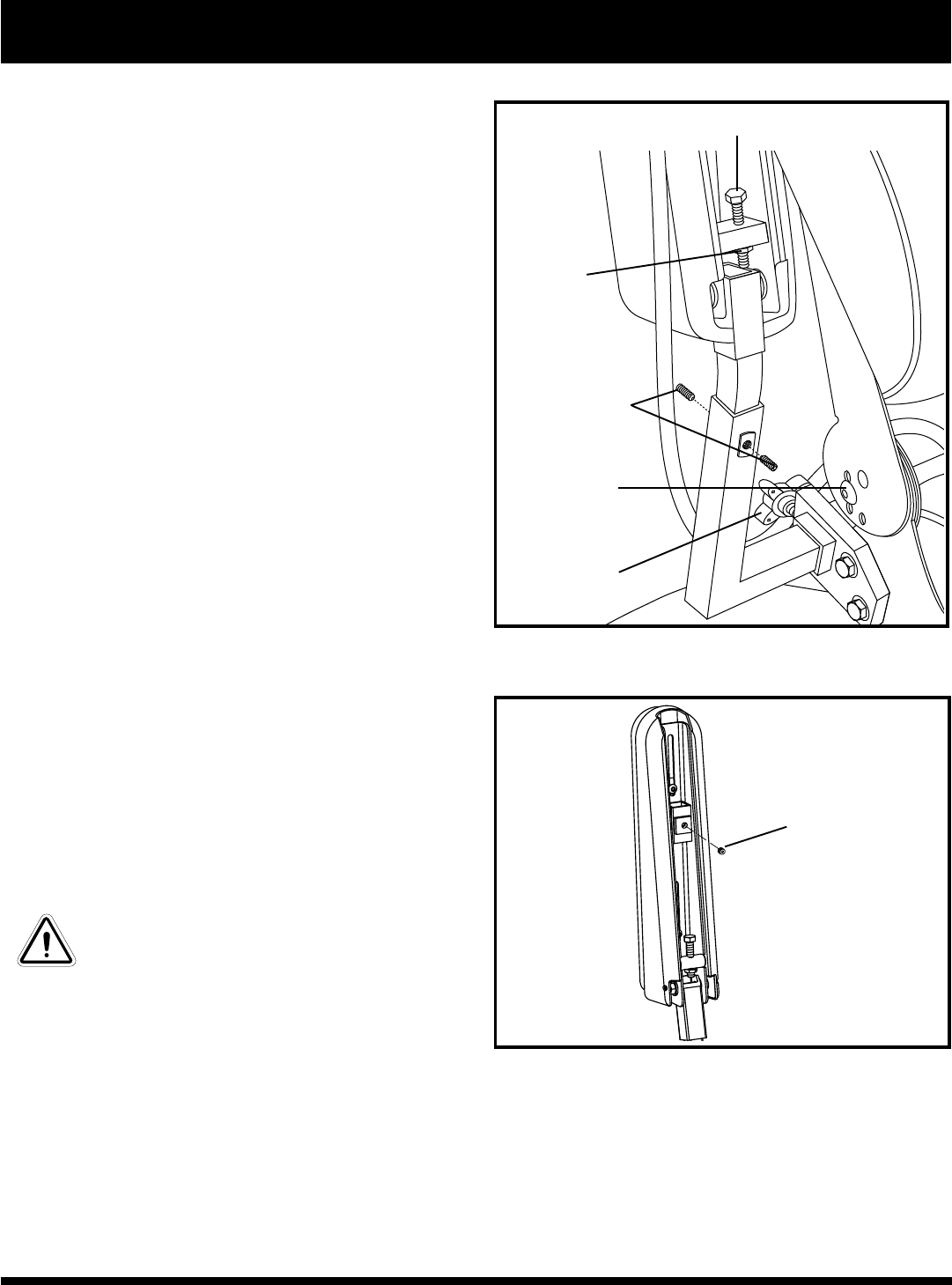

Figure 15. Seatback Angle Adjustment
JAM
NUT
SEATBACK
ANGLE
ADJUSTING
SCREW
ARMREST ANGLE ADJUSTING SCREW
ARMREST
KNOB
ARMREST
HEIGHT
ADJUSTING
SCREWS
