Flow Chart of Troubleshooting
9-22

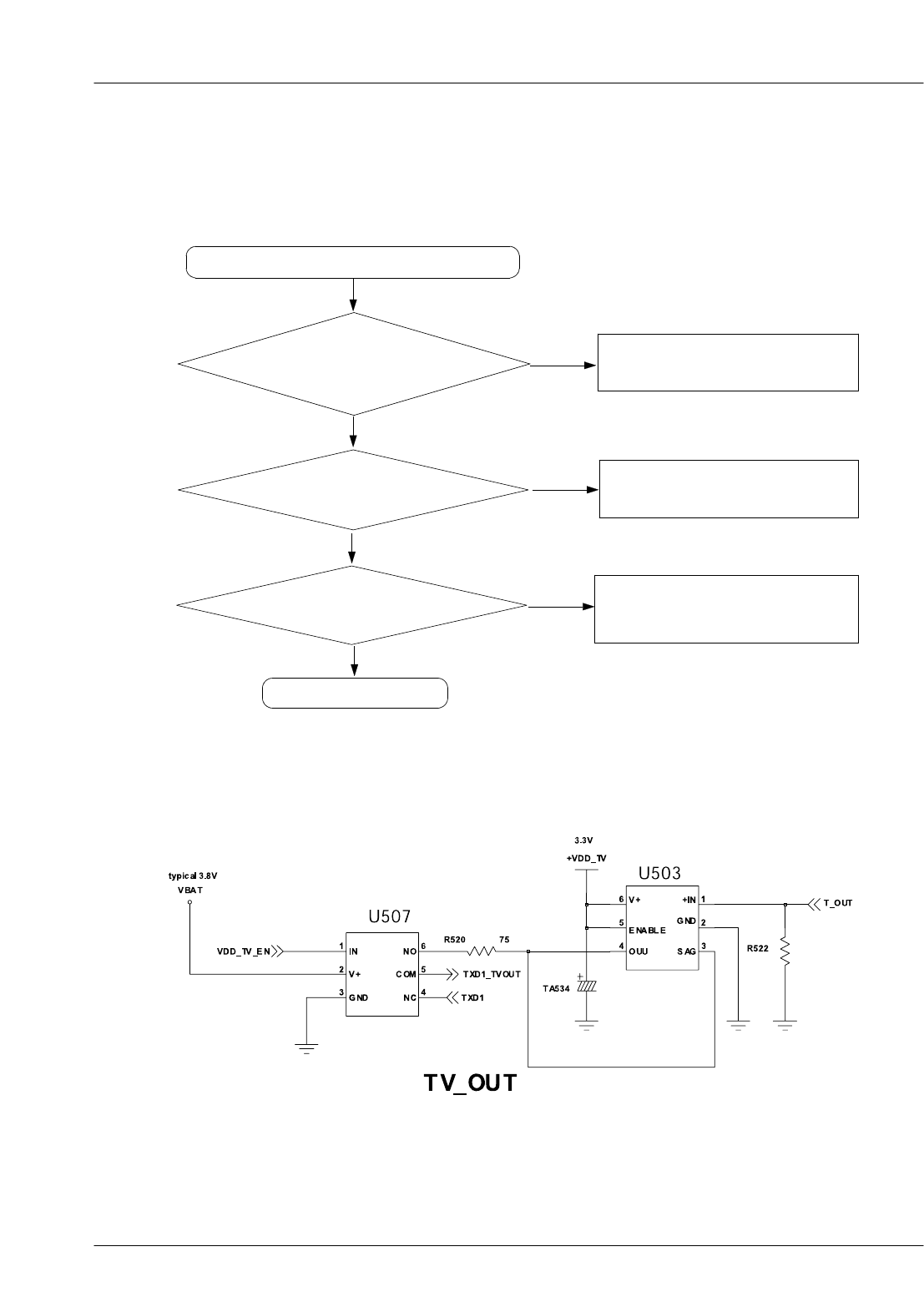

9-12. TV OUT
TV out does not work
Yes
No
Replace the U503
Check the 4 pin of U503
Yes
Check the TV out setting
is correctly NTSC or PAL
No
Check the Menu Setting
→DISPLAY->TVout
Yes
Other multimedia function
work well?
No
Change the PBA
Yes
END
