6901-002348 00
8

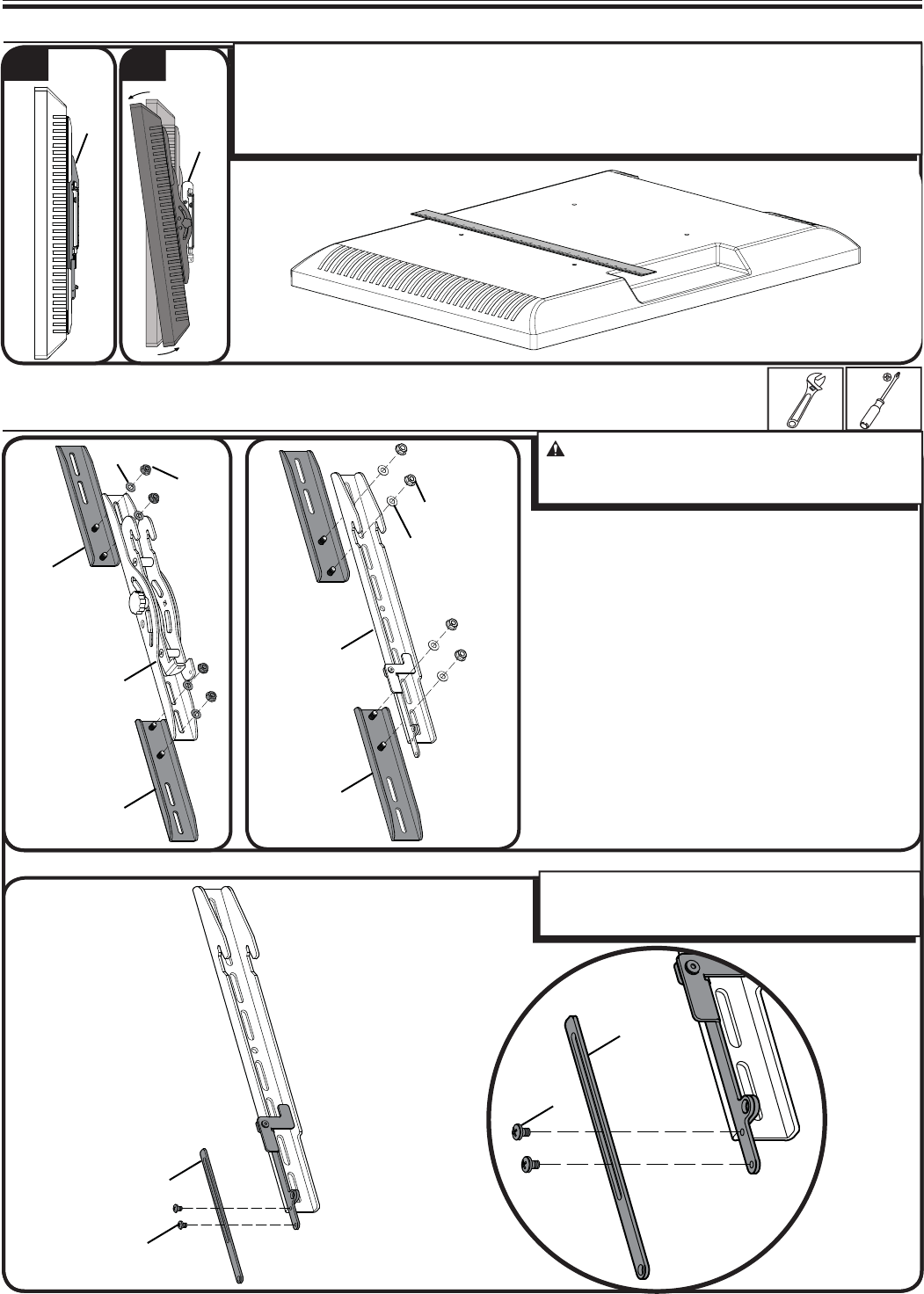

3 Assemble TV Brackets
CAUTION: To avoid personal injury or property
damage, ensure TV bracket extensions [05] are securely
fastened to TV brackets [02, 03], or [04].
3-2 Attach TV bracket extensions
Optionally, install adjustable latch extensions [06] to
the low pro le TV brackets [04].
[05]
A. If you want your TV to sit in a low profile position, use bracket [04].
B. If you want the tilt function, use brackets [02] and [03].
Measure the vertical distance between the mounting holes on your TV. For distances of 400 mm (15¾
in.) or less, use the brackets without extensions. For distances greater than 400 mm (15¾ in. ) and up to
673 mm (26½ in.), use the TV bracket extensions [05].
3-1 Determine bracket type and length
[04]
[06,
07]
[02, 03]
[04]
[06]
[06]
[07]
[07]
[08]
[09]
A
B
[09]
[08]
[05]
[05]
