4. Place the right side panel and the left side panel on the floor panel.
※ Make sure the left/right side panels and left/ right back panels are tightly fixed.
5. Place the bench support panel first and then place the bench surface panel into the sauna
room.
※ On larger sauna rooms with more than one bench, rotate the wooden bench supports
away from the side walls.
※ The side with Heating Film should be faced outside.
※ Make sure the two side slots of the long & short bench support panel are inserted into
the corresponding groove at both sides smoothly and completely. (Refer to picture 1
& picture 2)
※ Put the connector of the short sitting surport panel through the hole in the long short
sitting surport panel (please refer to the picture 3)
※ Put the two connectors connected to the connector in the back side panel, please ensure
it is fastened fully (please refer to the picture 4)
※ Place the Bench Surface Panel on the Bench Support Panel and slide toward the Back
Wall until flush to the Back Wall.

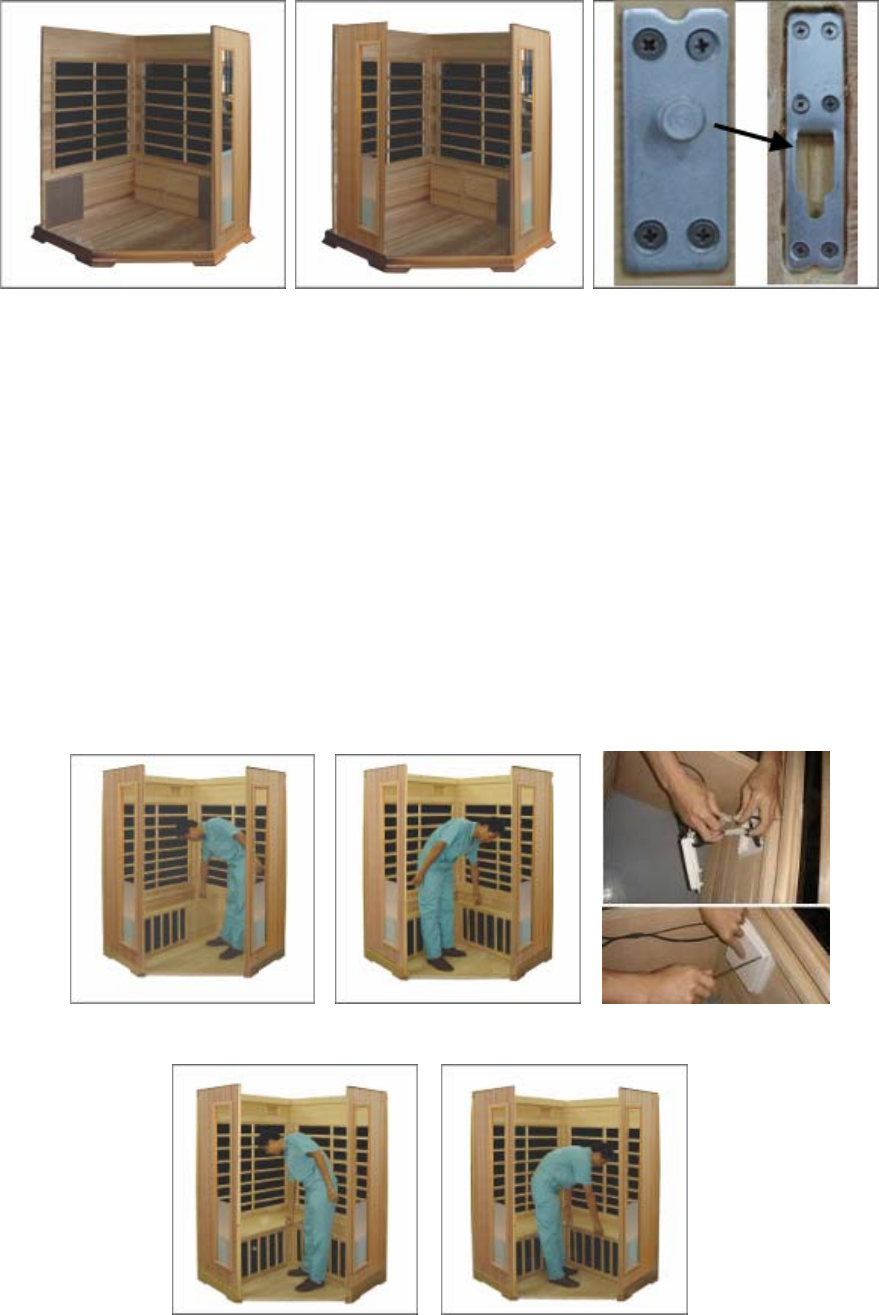

Picture 1 Picture 2 Picture 3/4
Picture 5 Picture 6
