19
DVD player or BS digital
tuner that has D-terminal
D-RCA conversion cable
(Commercially available)
To audio output
terminal
To D-terminal
To audio input
terminal
COMPONENT1
DVI
COMPONENT2
S-VIDEO
VIDEO
RS-232C
Y Cb/Pb Cr/Pr
To COMPONENT
(1 or 2) terminals
Video equipment that
has DVI-D terminal
DVI cable (commercially available)
To DVI-D terminal
To DVI-D terminal
To DVI terminal
To DVI-D terminal
COMPONENT1
DVI
COMPONENT2
S-VIDEO
VIDEO
RS-232C
Y Cb/Pb Cr/Pr

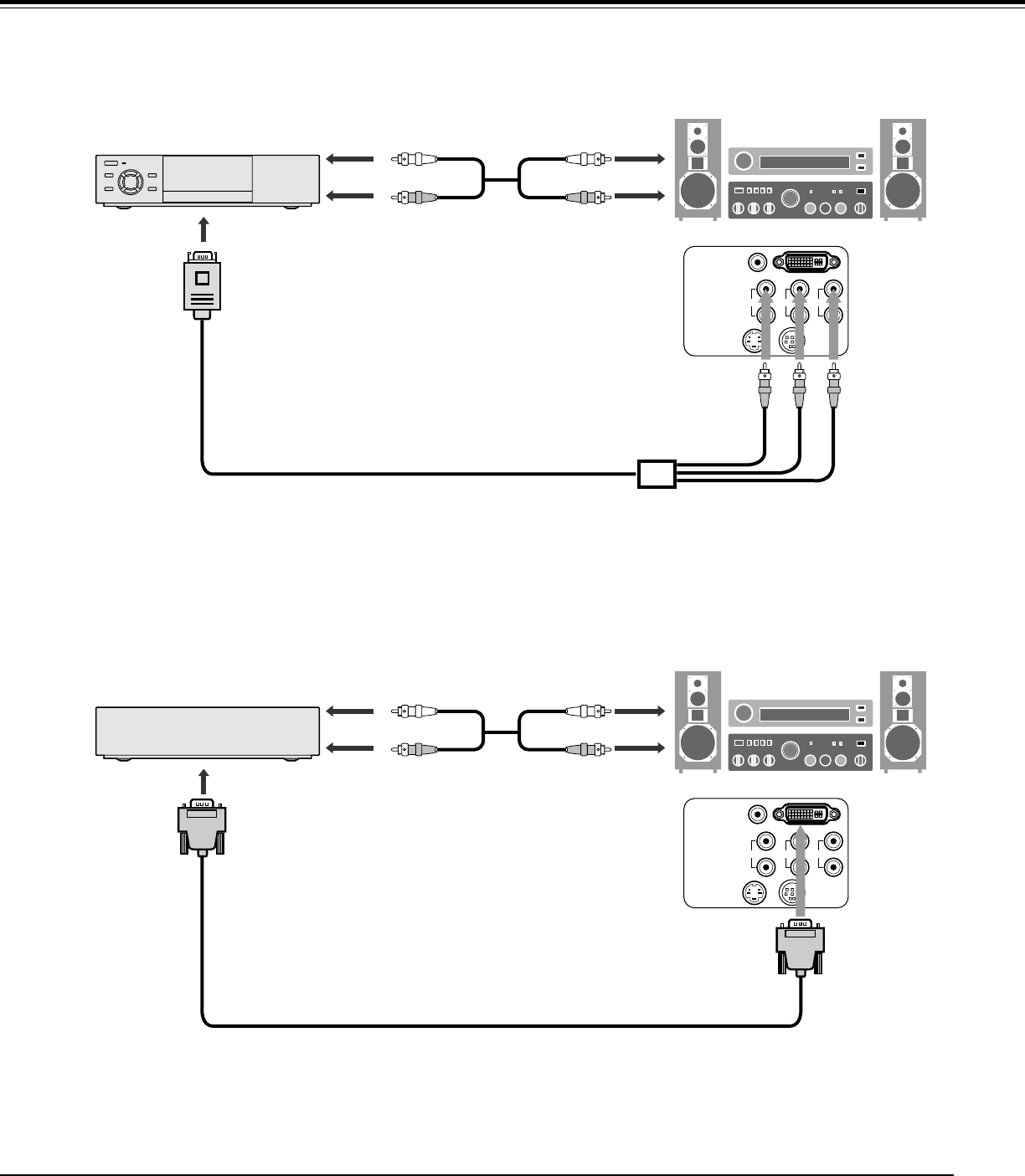

Connecting DVD players or BS digital tuners that have D-terminal
When connecting this projector to a DVD player or BS digital tuner that has D-terminal, connect a
commercially available D-RCA conversion cable to COMPONENT (1 or 2) terminal.
• Playback picture images of some of DVD players may not be able to be properly projected on screen.
Connecting to video equipment that has DVI-D terminal
The DVI terminal of this projector makes it possible to project high-quality video images on screen by
connecting with a video equipment that has DVI-D terminal. Also, because this projector is in conformity
with HDCP, it is possible to receive digital image signals encrypted from BS tuner outputs or DVD player
outputs.
• Connect to DVI terminal with a commercially available DVI cable.
• Select DVI-DIGITAL for switching input signals.
• This projector is in compliance with only RGB signals, not with chrominance signals.
• HDCP (High-band with Digital Content Protection) is one of encryption formats of digital image signals,
which has been developed by Intel Corporation to protect digital contents.
VIEWING VIDEO IMAGES
