-134-
the headquarters.
2) IPsec Setting
To configure the IPsec function, you should create an IPsec Proposal firstly.
z IPsec Proposal
Choose the menu VPNIPsecIPsec Proposal to load the following page.
Settings:
Proposal Name: proposal_IPsec_1
Security Protocol: ESP
ESP Authentication: MD5
ESP Encryption: 3DES
Click the <Save> button to apply.

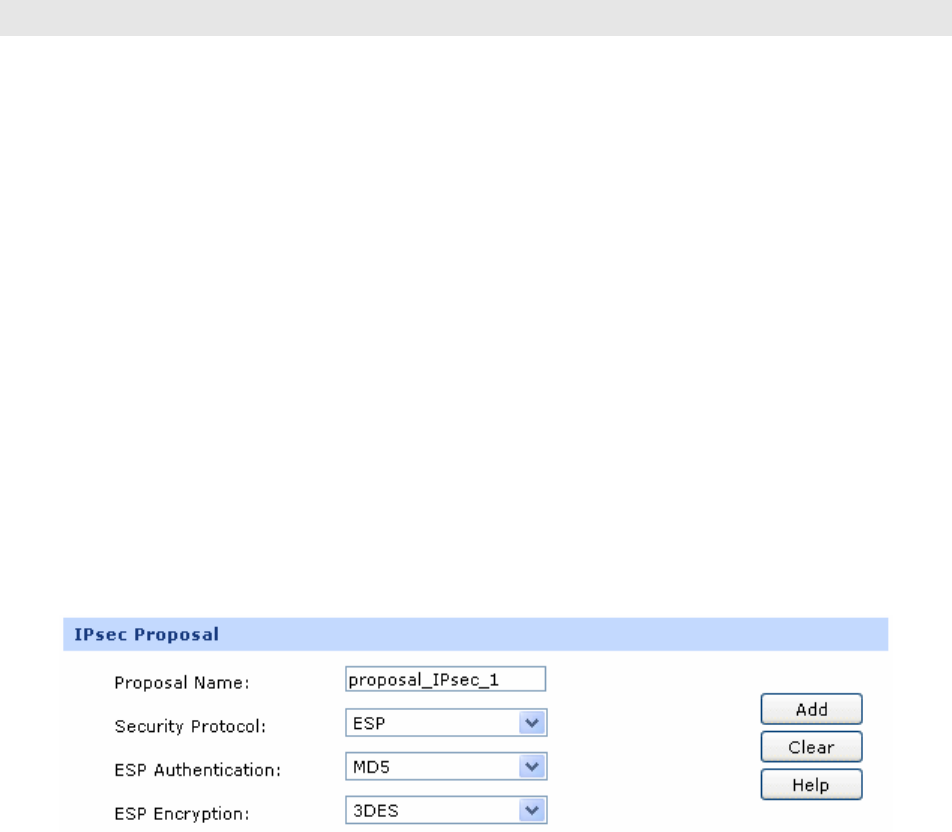

Figure 4-8 IPsec Proposal
z IPsec Policy
Choose the menu VPNIPsecIPsec Policy to load the configuration page.
Settings:
IPsec: Enable
Policy Name: IPsec_1
Status: Activate
Mode LAN-to-LAN
Local Subnet: 192.168.0.0/24
Remote Subnet: 172.31.10.0/24
