Choose the menu SNMP→SNMP Config→SNMP User to load the following page.

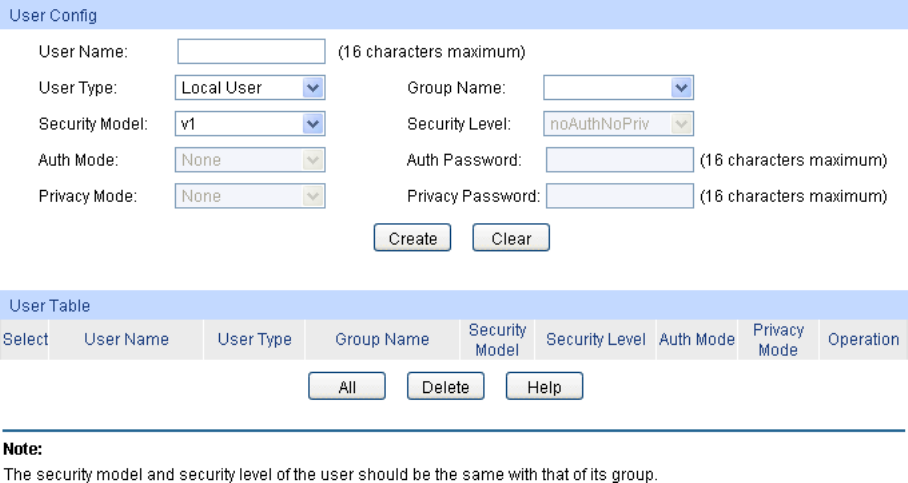

Figure 13-6 SNMP User
The following entries are displayed on this screen:
User Config
User Name:
Enter the User Name here.
User Type:
Select the type for the User.
•
Local User: Indicates that the user is connected to a
local SNMP engine.
•
Remote User: Indicates that the user is connected to a
remote SNMP engine.
Group Name:
Select the Group Name of the User. The User is classified to
the corresponding Group accor
ding to its Group Name,
Security Model and Security Level.
Security Model:
Select the Security Model for the User.
Security Level:
Select the Security Level for the SNMP v3 User.
Auth Mode:
Select the Authentication Mode for the SNMP v3 User.
• None: No authentication method is used.
•
MD5: The port authentication is performed via
HMAC-MD5 algorithm.
• SHA: The port authentication is performed via SHA
(Secure Hash Algorithm)
. This authentication mode has a
higher security than MD5 mode.
Auth Password:
Enter the password for authentication.
Privacy Mode:
Select the Privacy Mode for the SNMP v3 User.
• None: No privacy method is used.
• DES: DES encryption method is used.
210
