13
L2 Managed Switch
Connection



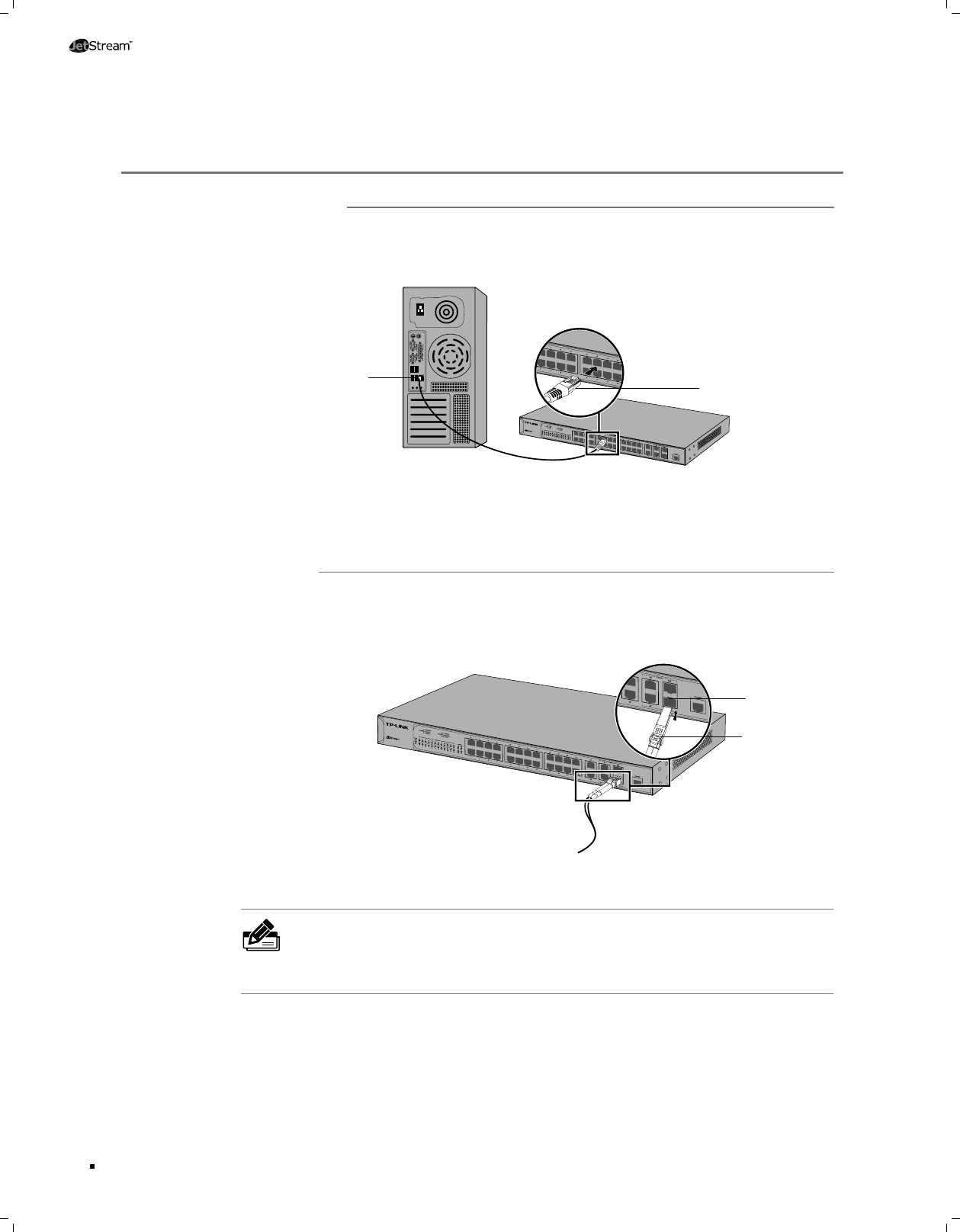

Connect the Ethernet ports of the Switch to the network devices by RJ45 cable as the
following figure shown.
L2 Managed Switch
TL-SL3428
RJ45 Cable
RJ45 Port
Connecting the RJ45 PortFigure 4-1

Connect the SFP port to a SFP module. If an SFP transceiver (purchased separately)
is installed in a slot and has a valid link on the port, the associated RJ45 port will be
disabled and cannot be used.
L2 Managed Switch
TL-SL3428
SFP Port
Inserting the SFP ModuleFigure 4-2
Note:
The Switch supports 100/1000Base-FX SFP module at full-duplex mode. When using a
SFP module, you need log on to the GUI of the Switch and configure the corresponding
Speed and Duplex mode on Switching
Port
Port Config page.
SFP Module
