TL-WA730RE 150Mbps Wireless N Range Extender User Guide
Throughput Monitor and Wireless Statistics. Click any of them, and you will be able to
configure the corresponding function. The detailed explanations for each submenu are provided
below.

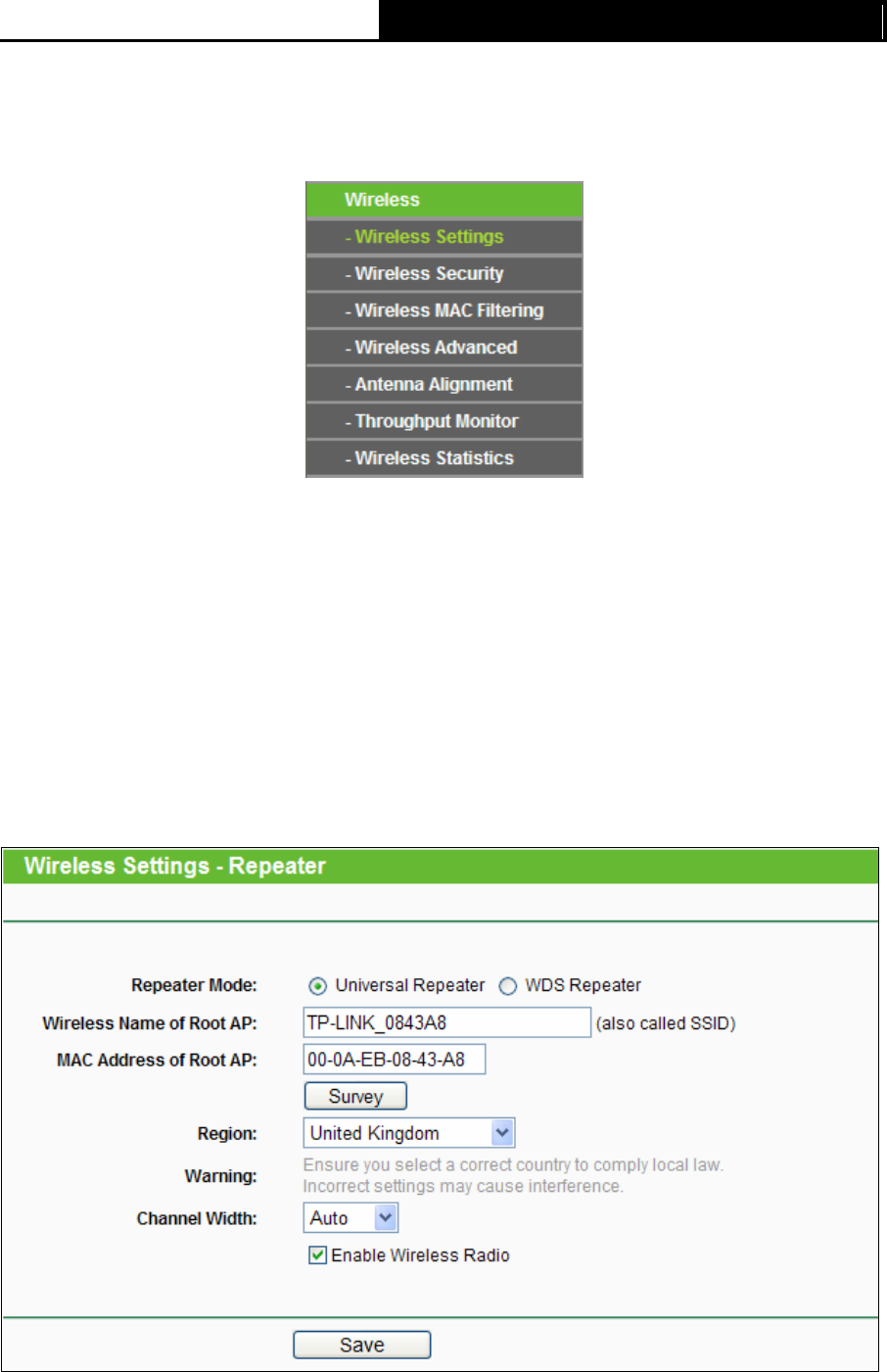

Figure 4-10 Wireless menu
4.7.1 Wireless Settings
Selecting Wireless > Wireless Settings will enable you to configure the basic settings for your
wireless network on the screen below (Figure 4-12).This page allows you to configure the wireless
mode for your device. Two operation modes are supported here, including Repeater (Range
Extender) and Access Point. The available setting options for each operation mode are different
from those of the other.
1) Repeater (Range Extender): In this mode, the product can extend the coverage of another
wireless Access Point or Router. The universal repeater mode is for the wireless Access
Point or Router which does not support WDS function.
Figure 4-11 Wireless Settings in Repeater mode
¾ Repeater Mode - Select the mode based on your need.
23
